  • B&C 18DS115 DS Series 18" High Energy Neodymium Subwoofer 4 Ohm

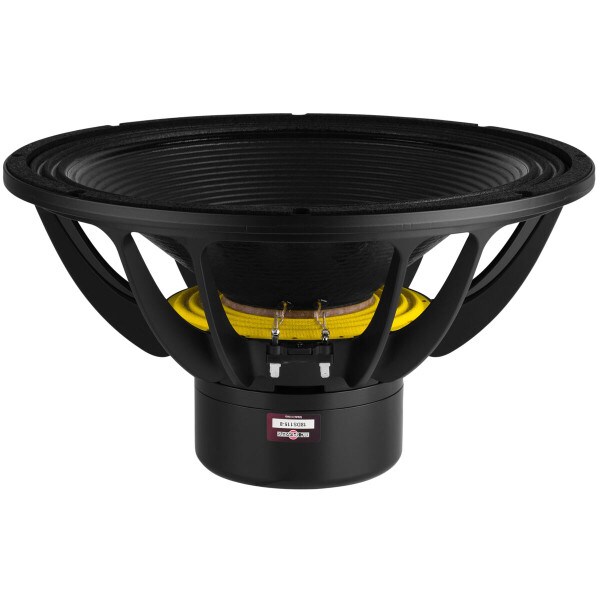

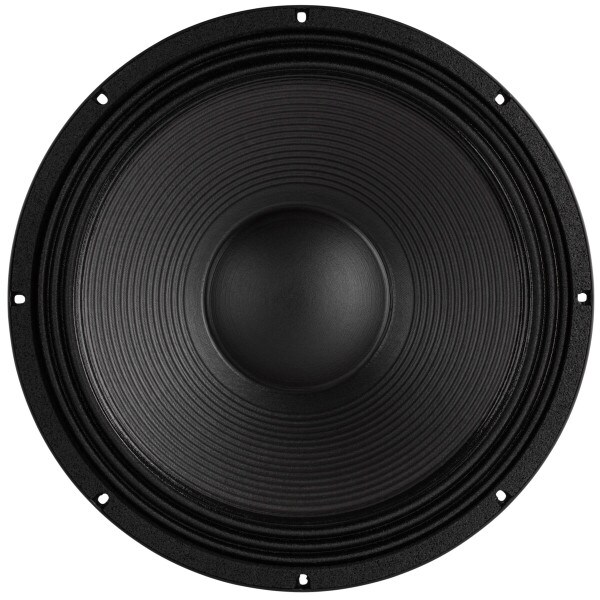

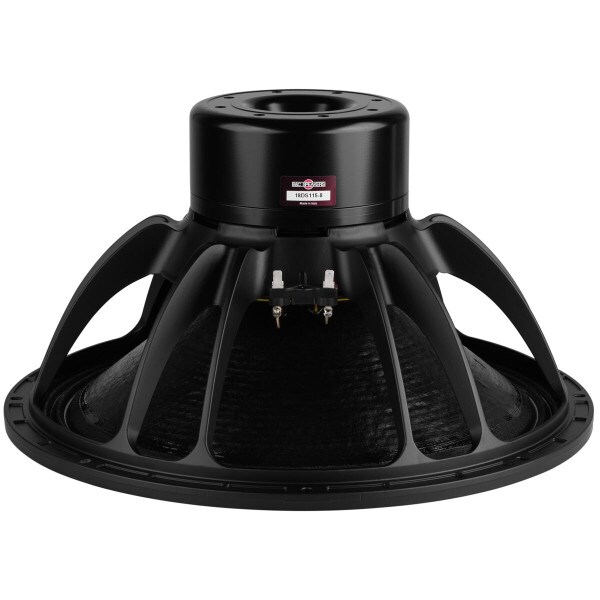

B&C 18DS115 DS Series 18" High Energy Neodymium Subwoofer 4 Ohm

B&C SpeakersPart # 294-6028
Model: 18DS115-4

This advanced subwoofer design incorporates a newly developed, longer four-layer aluminum voice coil. This design improves heat dissipation, increases magnetic gap energy, raises sensitivity, boosts power handling, reduces distortion, and enhances overall performance. The 18DS115 uses a 40 mm long, 4.5" (116 mm) diameter copper clad aluminum wire voice coil, delivers a 1700 watt AES power rating, achieves 97 dB sensitivity, and offers more than 14.0 mm of Xvar, representing a major advancement over comparable models in the B&C lineup.

Key Features

  • Excursion-optimized lead wires woven through spider for minimal motion interference
  • Double silicone spider with optimized compliance for stable excursion and control
  • Ventilated voice coil gap to reduce power compression under heavy use
  • Aluminum demodulating ring for very low distortion
Your Price: $753.96
+ FREE SHIPPING
MSRP: $1,256.60
Save $502.64 (40%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when B&C 18DS115 DS Series 18" High Energy Neodymium Subwoofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 18DS115 DS Series 18" High Energy Neodymium Subwoofer 4 Ohm

18DS115 18" High Energy Neodymium Subwoofer 4 Ohm

Product Details

BrandB&C Speakers
Model18DS115-4
Part Number294-6028
UPC848864050607
Unit of MeasureEach
Weight31.8

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.32
Power Handling (RMS)3400 Watts
Impedance
Frequency Response30 to 500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4.5"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)3.3Ω
Voice Coil Inductance (Le)2.8mH
Mechanical Q (Qms)4.75
Electromagnetic Q (Qes)0.18
Total Q (Qts)0.17
Compliance Equivalent Volume (Vas)6.25ft³
Mechanical Compliance of Suspension (Cms)0.0809mm/N
BL Product (BL)34.68T·m
Diaphragm Mass Inc. Airload (Mms)348g
Maximum Linear Excursion (Xmax)16.5mm
Surface Area of Cone (Sd)1241cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter18.11"
Baffle Cutout Diameter16.61"
Depth9.76"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume5ft³
Vented F332.3Hz
