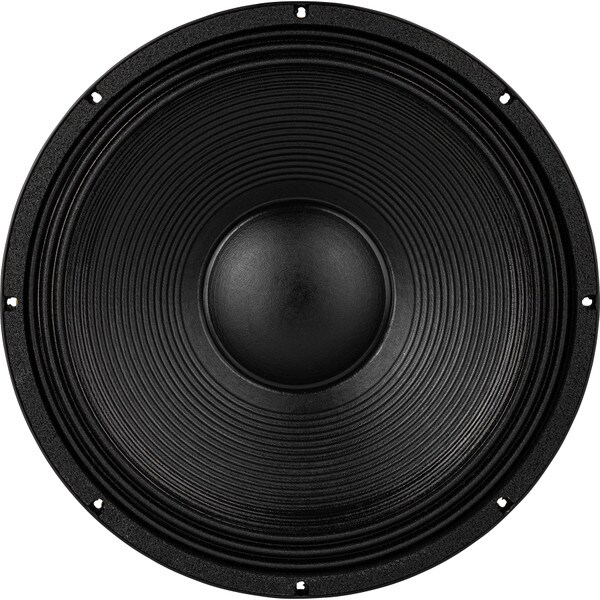

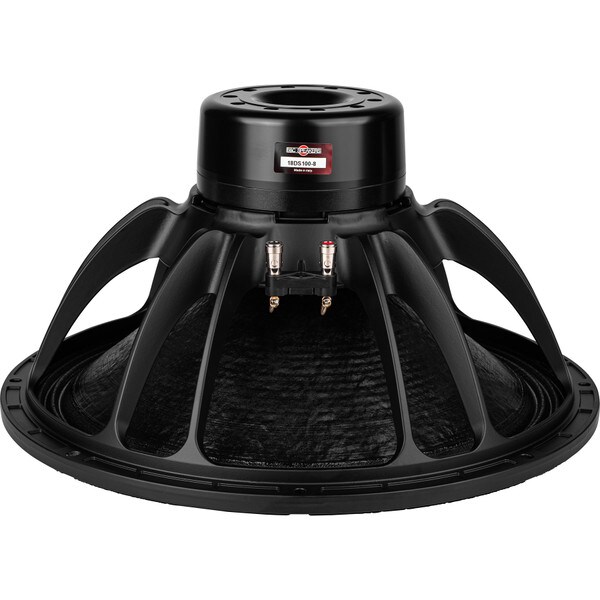

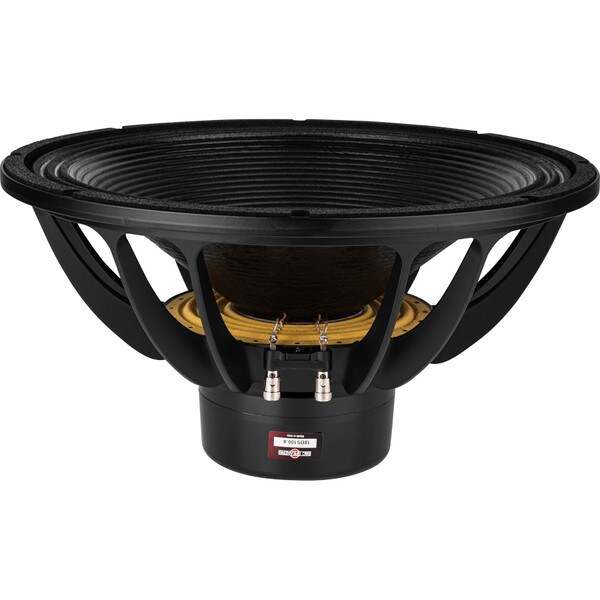

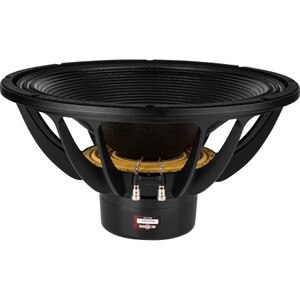

B&C 18DS100-8 18" Professional Neodymium Subwoofer 8 Ohm

1 Question, 1 Answer or
B&C Speakers
Part #294-5972

B&C 18DS100-8 18" Professional Neodymium Subwoofer 8 Ohm

B&C Speakers
Part #294-5972
Model: 18DS100-8
1 Question, 1 Answer or
The 18DS100-8 18" professional subwoofer driver from B&C Speakers uses a 4" diameter x 37 mm long voice coil to deliver remarkable excursion capability with extremely high power handling. The strong neodymium motor assembly includes a large aluminum shorting ring for low distortion and extensive venting keeps power compression to a minimum. This driver is a significant step forward in high output subwoofer drivers from B&C.
Key Features
  • 4" diameter 37 mm long voice coil allows high power handling and extreme excursion
  • High power neodymium motor keeps efficiency high with minimal weight
  • Aluminum shorting ring lowers inductance and minimizes distortion
  • Optimized suspension for linear excursion even when driven to its limit
  • Waterproof treated paper cone makes this driver perfect for damp locations
Your Price: $525.60
+ FREE SHIPPING
MSRP: $876.00
Save $350.40 (40%)
Bulk Pricing
Order in the next 0 hr 33 min to ship today. Details

Only 1 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 18DS100-8 18" Professional Neodymium Subwoofer 8 Ohm

With a 37 mm long 4" diameter 4-laver voice coil, the 18DS100-8 18" professional high output subwoofer driver from B&C Speakers is a significant step forward from similar 18" drivers. The high excursion capability, excellent efficiency, and incredible power handling gives this driver fantastic output capability and low frequency extension. Driving the voice coil is a powerful neodymium motor with extensive venting through the pole piece, frame, and magnetic gap keeping everything cool for low power compression and extreme power handling. An aluminum shorting ring helps lower inductance and keep distortion under control to produce clean low frequency output. The 18SD100-8 uses dual silicon spiders and a triple roll surround to keep the linear throughout the limits of excursion. The rigid paper cone has a waterproof coating on both sides of the cone to ensure the 18DS100-8 delivers high performance output even when installed in less than optimal locations. The 18DS100-8 continues B&C tradition for building high performance drivers that provide amazing performance and reliability. The 8 ohm impedance and low weight makes this driver perfect for use in dual 18" subwoofer designs.

Note:4 Ohm version also available, see part # 294-5970.

Product Details

BrandB&C Speakers
Model18DS100-8
Part Number294-5972
UPC848864063324
Unit of MeasureEach
Weight27.12

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.44
Power Handling (RMS)3000 Watts
Impedance8Ω
Frequency Response34 to 1,000Hz
Sensitivity97.5dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)34Hz
DC Resistance (Re)4.5Ω
Voice Coil Inductance (Le)4.4mH
Mechanical Q (Qms)9.5
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)5.47ft³
BL Product (BL)30T·m
Diaphragm Mass Inc. Airload (Mms)278g
Maximum Linear Excursion (Xmax)14.5mm
Surface Area of Cone (Sd)1210cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter18.11"
Baffle Cutout Diameter16.61"
Depth9.41"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F3100.7Hz
Vented Volume5.63ft³
Vented F336Hz
