AtlasIED FC-6TPIC 6" Isoflare Premium 70V/8 Ohm Ceiling Speaker Pre-Install Back Can

AtlasIEDPart # 242-9638
Model: FC-6TPIC

The IsoFlare Series sets the standard for premium loudspeakers in the commercial market. Developed in collaboration between Atlas and Fyne Audio, it utilizes point source technology for exceptional off-axis clarity across all frequencies. Combining sleek aesthetics with audiophile-grade sound, IsoFlare is ideal for hospitality, retail, corporate, and educational spaces where high-quality audio enhances the experience.

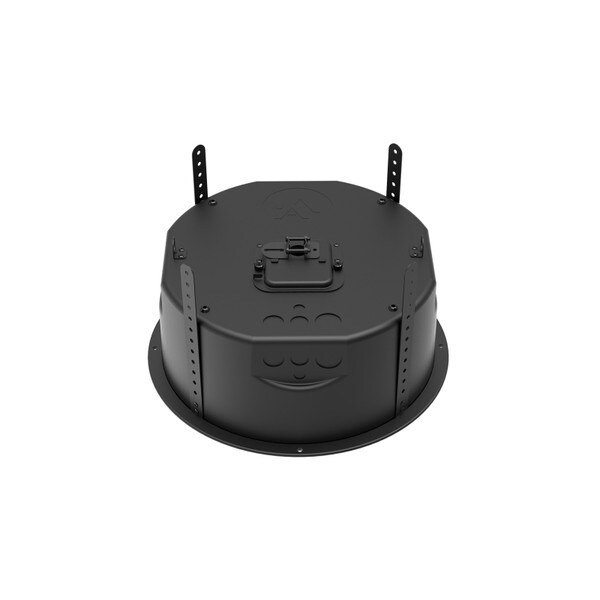

This back can is designed to work in conjunction with the FC-6DRV Driver.

Key Features

  • Patented and toolless secure-clamp mechanism allows for fast and easy installation
  • Advanced point source driver for accurate, natural sound reproduction
  • Magnetically secured bezel-less grille has a removable logo and is easily painted. Optional square grille sold separately
  • Neodymium magnet system and ferrofluid-cooled HF provide effective heat dissipation
  • Fluted surround technology prevents sound coloration
  • High-current, high-quality crossover components provide more durability and more accurate sound reproduction
  • Advanced voicing presets available via the Atlas Atmosphere DSP platform
Similar items that may interest you:
AtlasIED FC-6T 6" Isoflare Premium 70V/8 Ohm Ceiling Speaker (Blind Mount)
Price: $398.99Part # 242-9634
See all items in Speaker Back Boxes & Enclosures
Your Price: $128.99
+ FREE SHIPPING
MSRP: $161.99
Save $33.00 (20%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when AtlasIED FC-6TPIC 6" Isoflare Premium 70V/8 Ohm Ceiling Speaker Pre-Install Back Can is back in stock or available for preorder.

Dropship Order Item
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED FC-6TPIC 6" Isoflare Premium 70V/8 Ohm Ceiling Speaker Pre-Install Back Can

FC-6TPI 6" IsoFlare Premium 70V/8 Ohm Ceiling Speaker (Pre-Install)

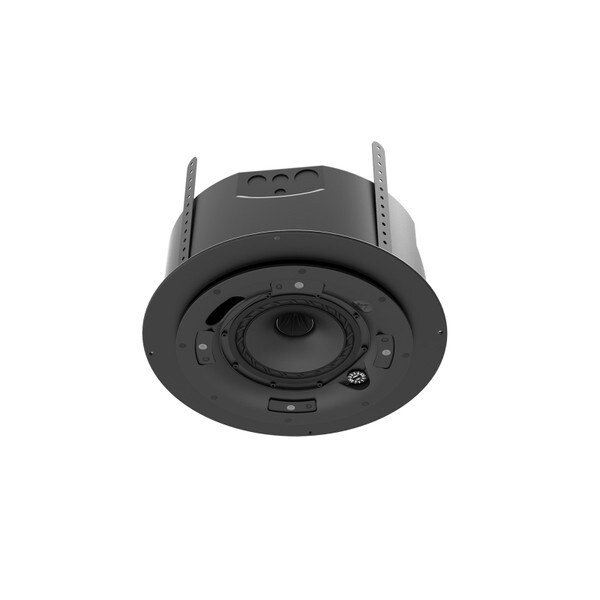

The IsoFlare FC-6TPI (composed of the FC-6DRV Driver and FC-6TPIC Back Can, each sold individually) is a high-sensitivity, wide-bandwidth ceiling loudspeaker engineered for superior fidelity, coverage, and aesthetics.

Setting a new standard in point source technology for high-end commercial environments, the IsoFlare range is the result of decades of expertise from acoustic and mechanical engineers. By combining refined skill with the latest advancements in design and engineering, IsoFlare brings premium audio performance to commercial installations in a seamlessly integrated package.

Unlike traditional coaxial designs, the IsoFlare driver ensures precise harmonic alignment between high and low-frequency sources, delivering natural, accurate sound reproduction with outstanding tonal balance.

Emitting a spherical wavefront that remains uniformly aligned across all axes, the IsoFlare driver provides an even response throughout the listening area. The consistent time delay across the entire frequency spectrum results in exceptional off-axis performance, maintaining clarity and balance from every angle.

Designed for applications that demand both high-quality music and speech reinforcement, the FC-6TPI offers exceptional reliability in an architect-, designer-, and installer-friendly solution.

For enhanced low-frequency performance, it can be paired with the FC-8ST ceiling subwoofer. Advanced voicing presets are available through the Atmosphere DSP platform.

Also available as FC-6T blind mount with back can, C-ring, and tile bridge

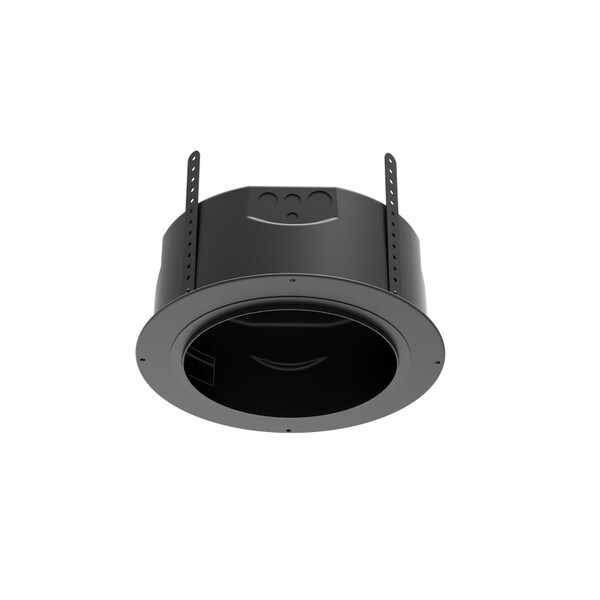

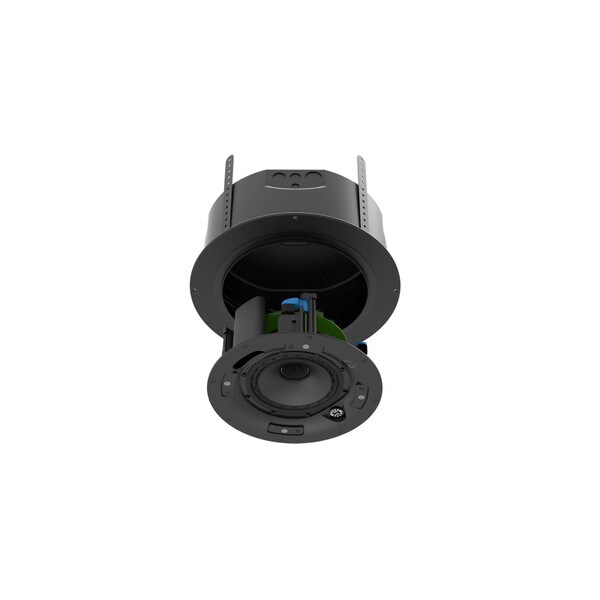

This pre-install speaker is sold as two separate pieces (back can and motor assembly) with a paint mask. The back can is installed during framing, before sheetrock application, ensuring precise speaker placement and allowing for a quick, hassle-free final installation.

Specifications

  • Type: Two-Way, Full Range, Ceiling Loudspeaker (Pre-Install)
  • Frequency Range (-10dB): 50Hz - 20kHz
  • Frequency Response (+/- 3dB): 62Hz - 19kHz
  • System Sensitivity (1W @ 1m): 91dB
  • Nominal Coverage Angle (-6dB): 100°
  • Directivity Index (DB): 5.6

Power Handling

  • Average: 80W
  • Programme: 160W
  • Peak: 320W
  • Recommended Amplifier Power: 160W @ 8 Ohms
  • Nominal Impedance: 8 Ohms
  • Transformer Taps - via rotary selector switch: 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation

Rated Maximum SPL

  • Average: 110dB
  • Peak: 116dB
  • With Max. Transformer Tap - Average: 109dB
  • Manufacturer Warranty Period: 60 months from date of purchase

IsoFlare Series Loudspeakers

Designed in collaboration between Atlas and Fyne Audio

The IsoFlare Series sets the standard for premium loudspeakers in the commercial market. Developed in collaboration with Fyne Audio, it utilizes point source technology for exceptional off-axis clarity across all frequencies. Combining sleek aesthetics with audiophile-grade sound, IsoFlare is ideal for spaces where high-quality audio enhances the experience, including but not limited to boardrooms and corporate offices, airports, convention centers, hotels, casinos, houses of worship, retail outlets, shopping malls, museums, lounges, bars, education facilities, cruise ships, courtrooms, and multizone foreground music & paging systems.

Proprietary Technology

IsoFlare Driver

Point source technology ensures that low and high-frequency drivers share a common center, delivering exceptional stereo imaging. Even off-axis, sound energy is evenly dispersed with constant directivity, following the flare of the driver cone for consistent coverage.

Enhanced Ambiance

Fine Dining

High-quality music in a fine dining restaurant enriches the ambiance, fostering an elegant and relaxing atmosphere. It enhances the culinary experience with added sophistication and enjoyment. This refined touch boosts customer satisfaction and leaves a lasting impression.

Patented Secure Design

Tool-Free Clamp

Quick and hassle-free mounting requires no specialized tools, minimizes the risk of speaker damage, and speeds up installation, saving both time and labor costs.

Enhanced Ambiance

Luxury Hotels

A high-quality sound system in a luxury hotel lobby enriches the ambiance, enveloping guests in a warm and inviting atmosphere. It enhances the guest experience, adding a touch of luxury, sophistication, and relaxation.

Edgeless

Magnetic Grills

Edgeless magnetic grilles feature perforated steel mesh with a UV-resistant powder-coated finish for a sleek, modern look built to last. Available in square or round and black or white finishes.

Enhanced Ambiance

Casinos

High-quality music in a casino creates a dynamic and exhilarating atmosphere, enhancing the gaming experience. It builds energy, heightens anticipation, and adds entertainment value, keeping players engaged and excited.

Premium

Crossover Components

Premium components, including low-loss LF laminated core inductors, non-inductive thick film resistors, and HF polypropylene capacitors, ensure transparent signal transfer for accurate sound reproduction and enhanced durability.

Enhanced Ambiance

Upscale Bars

High-quality music in an upscale bar or lounge sets the perfect ambiance, creating a sophisticated and welcoming atmosphere. It enhances the experience, engaging patrons and elevating their enjoyment.

Fluted

Surround Technology

Variable geometry in Comsol Multiphysics CAD minimizes mis-termination effects, reduces coloration, and enhances musical accuracy for a more precise audio experience.

Enhanced Ambiance

Retail Spaces

A high-quality sound system in upscale retail enhances the shopping experience, creating an inviting atmosphere with clear music and announcements that engage customers, increase sales, and leave a lasting impression.

Product Details

BrandAtlasIED
ModelFC-6TPIC
Part Number242-9638
UPC612079703210
Unit of MeasureEach
Weight15

Product Specifications

Input Rating160W
Mounting StyleIn-ceiling
Woofer Diameter6"
