AtlasIED FC-8ST 8" Isoflare Premium 70V/8 Ohm Ceiling Subwoofer (Blind Mount)

AtlasIEDPart # 242-9636
Model: FC-8ST

The IsoFlare Series sets the standard for premium loudspeakers in the commercial market. Developed in collaboration between Atlas and Fyne Audio, it utilizes point source technology for exceptional off-axis clarity across all frequencies. Combining sleek aesthetics with audiophile-grade sound, IsoFlare is ideal for hospitality, retail, corporate, and educational spaces where high-quality audio enhances the experience.

Key Features

  • Patented and toolless secure-clamp mechanism allows for fast and easy installation
  • Magnetically secured bezel-less grille has a removable logo and is easily painted. Optional square grille sold separately
  • Weather treated, multi-fiber cone for UV/weather resistance
  • Second order 140Hz passive low pass filter to protect the driver
  • Easy to access rotary select switch for quick adjustments
  • C-ring and tile bridges included
  • Advanced voicing presets available via the Atlas Atmosphere DSP platform
Your Price: $528.99
+ FREE SHIPPING
MSRP: $661.99
Save $133.00 (20%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when AtlasIED FC-8ST 8" Isoflare Premium 70V/8 Ohm Ceiling Subwoofer (Blind Mount) is back in stock or available for preorder.

Dropship Order Item
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED FC-8ST 8" Isoflare Premium 70V/8 Ohm Ceiling Subwoofer (Blind Mount)

AtlasIED FC-8ST 8" IsoFlare Premium 70V/8 Ohm Ceiling Subwoofer (Blind Mount)

The IsoFlare FC-8T is a high-sensitivity, full-bandwidth ceiling loudspeaker engineered for exceptional fidelity, wide coverage, and sleek aesthetics.

As part of the IsoFlare series, it sets a new standard in point source technology for prestigious commercial installations. Decades of expertise from acoustic and mechanical engineers, combined with the latest advancements in design and engineering, have resulted in a premium loudspeaker solution tailored for high-end commercial environments.

Unlike traditional coaxial designs, the IsoFlare driver ensures precise harmonic alignment between high and low-frequency sources, delivering natural and accurate sound reproduction with outstanding tonal balance.

Emitting a uniform spherical wavefront across all axes, the IsoFlare driver provides a consistent response throughout the listening area. A constant time delay across the frequency spectrum enhances off-axis performance, ensuring smooth and balanced audio coverage from every angle.

Advanced voicing presets are available through the Atmosphere DSP platform.

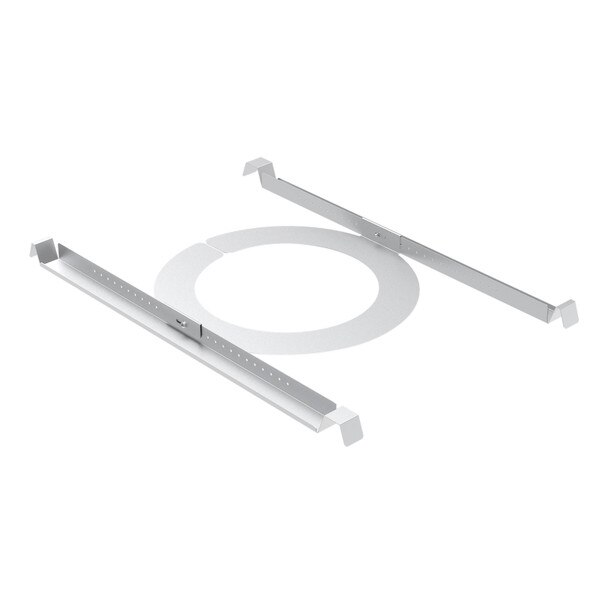

The IsoFlare FC-8ST comes with C-Ring and Tile Bridges for easy installation in ceiling applications.

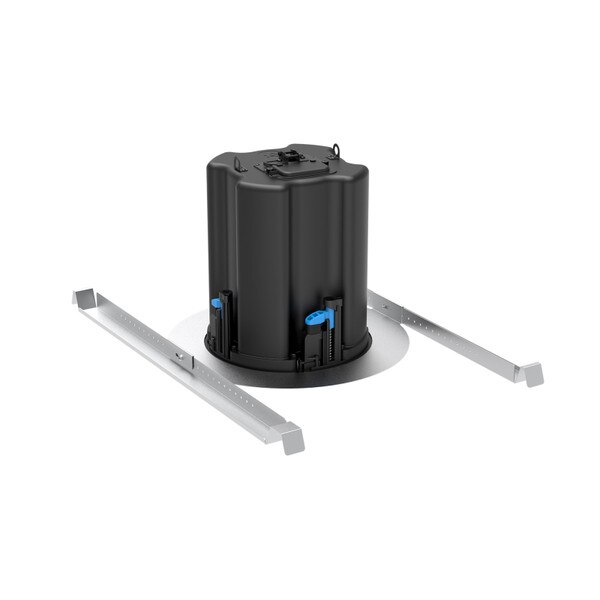

This blind mount loudspeaker is designed for hard ceiling applications. It features a patented toolless high-travel secure-clamp mechanism for quick, hassle-free installation, eliminating the need for specialized tools and minimizing the risk of damage.

Specifications

  • Type: Direct Radiating Ceiling Subwoofer (Blind Mount)
  • Frequency Range (-10dB): 40Hz - 200Hz
  • Frequency Response (+/- 3dB): 47Hz - 140Hz
  • System Sensitivity (1W @ 1m): 92dB
  • Nominal Coverage Angle (-6dB): 180°

Power Handling

  • Average: 90W
  • Programme: 180W
  • Peak: 360W
  • Recommended Amplifier Power: 180W @ 8 Ohms
  • Nominal Impedance: 8 Ohms
  • Transformer Taps - via rotary selector switch: 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation

Rated Maximum SPL

  • Average: 112dB
  • Peak: 118dB
  • With Max. Transformer Tap - Average: 110dB
  • Manufacturer Warranty Period: 60 months from date of purchase

IsoFlare Series Loudspeakers

Designed in collaboration between Atlas and Fyne Audio

The IsoFlare Series sets the standard for premium loudspeakers in the commercial market. Developed in collaboration with Fyne Audio, it utilizes point source technology for exceptional off-axis clarity across all frequencies. Combining sleek aesthetics with audiophile-grade sound, IsoFlare is ideal for spaces where high-quality audio enhances the experience, including but not limited to boardrooms and corporate offices, airports, convention centers, hotels, casinos, houses of worship, retail outlets, shopping malls, museums, lounges, bars, education facilities, cruise ships, courtrooms, and multizone foreground music & paging systems.

Proprietary Technology

IsoFlare Driver

Point source technology ensures that low and high-frequency drivers share a common center, delivering exceptional stereo imaging. Even off-axis, sound energy is evenly dispersed with constant directivity, following the flare of the driver cone for consistent coverage.

Enhanced Ambiance

Fine Dining

High-quality music in a fine dining restaurant enriches the ambiance, fostering an elegant and relaxing atmosphere. It enhances the culinary experience with added sophistication and enjoyment. This refined touch boosts customer satisfaction and leaves a lasting impression.

Patented Secure Design

Tool-Free Clamp

Quick and hassle-free mounting requires no specialized tools, minimizes the risk of speaker damage, and speeds up installation, saving both time and labor costs.

Enhanced Ambiance

Luxury Hotels

A high-quality sound system in a luxury hotel lobby enriches the ambiance, enveloping guests in a warm and inviting atmosphere. It enhances the guest experience, adding a touch of luxury, sophistication, and relaxation.

Edgeless

Magnetic Grills

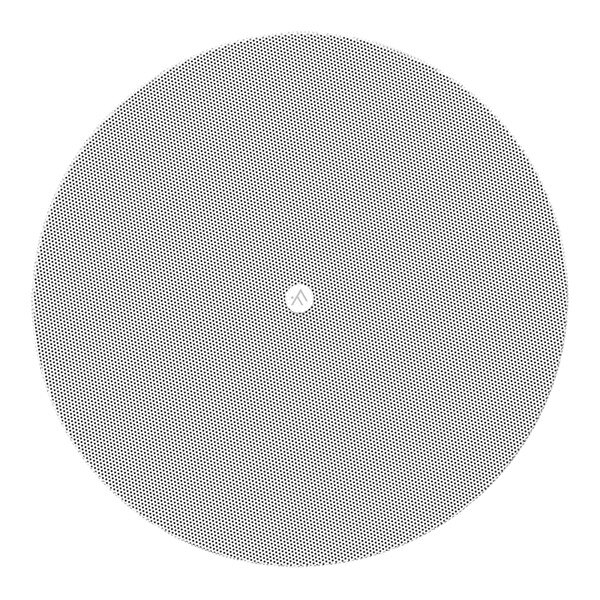

Edgeless magnetic grilles feature perforated steel mesh with a UV-resistant powder-coated finish for a sleek, modern look built to last. Available in square or round and black or white finishes.

Enhanced Ambiance

Casinos

High-quality music in a casino creates a dynamic and exhilarating atmosphere, enhancing the gaming experience. It builds energy, heightens anticipation, and adds entertainment value, keeping players engaged and excited.

Premium

Crossover Components

Premium components, including low-loss LF laminated core inductors, non-inductive thick film resistors, and HF polypropylene capacitors, ensure transparent signal transfer for accurate sound reproduction and enhanced durability.

Enhanced Ambiance

Upscale Bars

High-quality music in an upscale bar or lounge sets the perfect ambiance, creating a sophisticated and welcoming atmosphere. It enhances the experience, engaging patrons and elevating their enjoyment.

Fluted

Surround Technology

Variable geometry in Comsol Multiphysics CAD minimizes mis-termination effects, reduces coloration, and enhances musical accuracy for a more precise audio experience.

Enhanced Ambiance

Retail Spaces

A high-quality sound system in upscale retail enhances the shopping experience, creating an inviting atmosphere with clear music and announcements that engage customers, increase sales, and leave a lasting impression.

Product Details

BrandAtlasIED
ModelFC-8ST
Part Number242-9636
UPC612079703197
Unit of MeasureEach
Weight28.9

Product Specifications

Input Rating180W
Mounting StyleIn-ceiling
Woofer Diameter8"
