NEW AtlasIED AS-5T-B 5.25" AS Series Surface Mount 70V/8 Ohm Speaker Black

AtlasIEDPart # 242-9611
Model: AS-5T-B

The AS-5T-B is a 5.25" surface mount speaker in the Atlas AS Series. Built for diverse commercial applications from breweries to museums, the AS Series offers design flexibility while maintaining aesthetic continuity. Combining meticulous craftsmanship with exceptional performance, the AS Series delivers the perfect balance of style, sound, and reliability.

Priced individually. Must be purchased in multiples of 2.

Key Features

  • Usable with a 70V, 100V, or an 8 Ohm power amplifier
  • Dependable horizontal coverage to deliver quality sound performance even off axis
  • Clean, minimalist aesthetic to fit into any architectural style
  • IP55 rated to resist damage from dust and water
  • The ABS plastic enclosure is UV resistant to stand up to years of full sunshine
  • VESA mount compatible with slip-free yoke mount included. Pan/tilt bracket sold separately
  • Advanced tunings available via the Atlas Atmosphere DSP platform
NEW $285.99
+ FREE SHIPPING
MSRP: $356.99
Save $71.00 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when AtlasIED AS-5T-B 5.25" AS Series Surface Mount 70V/8 Ohm Speaker Black is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED AS-5T-B 5.25" AS Series Surface Mount 70V/8 Ohm Speaker Black

AS-5T-B 5.25" AS Series Surface Mount 70V/8 Ohm Speaker Black

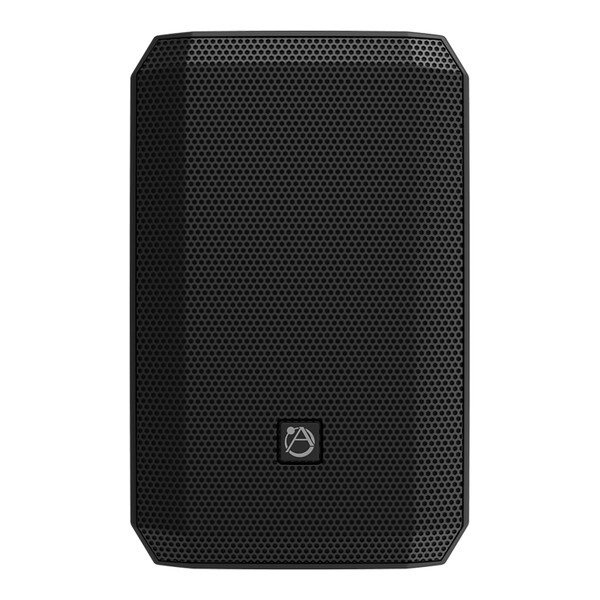

The Atlas AS-5T is a compact, weather-resistant surface-mount loudspeaker designed for sound reinforcement applications where durability, sleek aesthetics, and superior audio performance are essential.

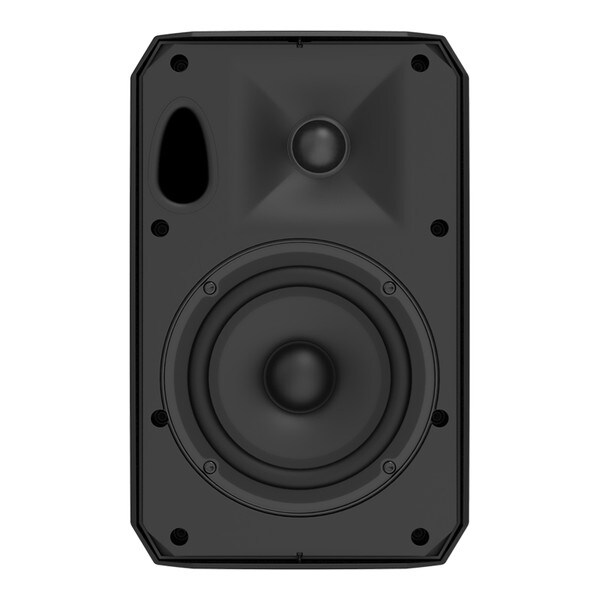

Featuring a high-excursion 5.25" polypropylene woofer paired with a 1" silk dome, ferrofluid-cooled high-frequency driver, the AS-5T delivers clear and consistent broadband frequency response, maintaining accuracy both on and off axis.

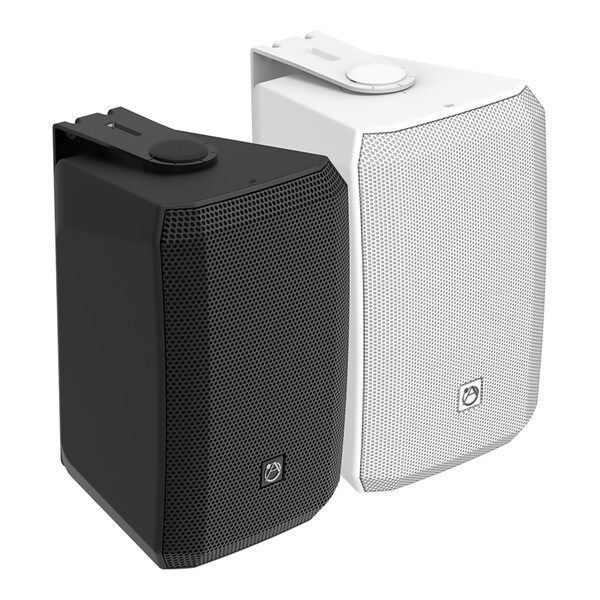

Available in textured black or white, its rugged, scuff-resistant ABS enclosure with a UV inhibitor ensures long-lasting durability and reliable performance in both indoor and outdoor environments. With an IP55 rating, it is built to withstand challenging weather conditions.

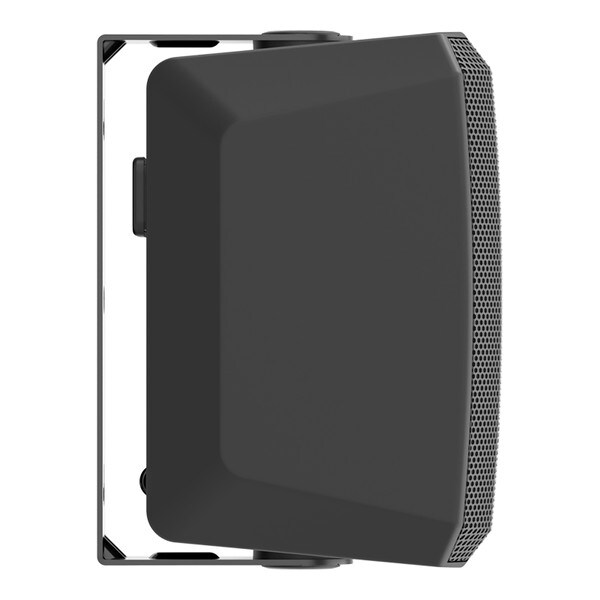

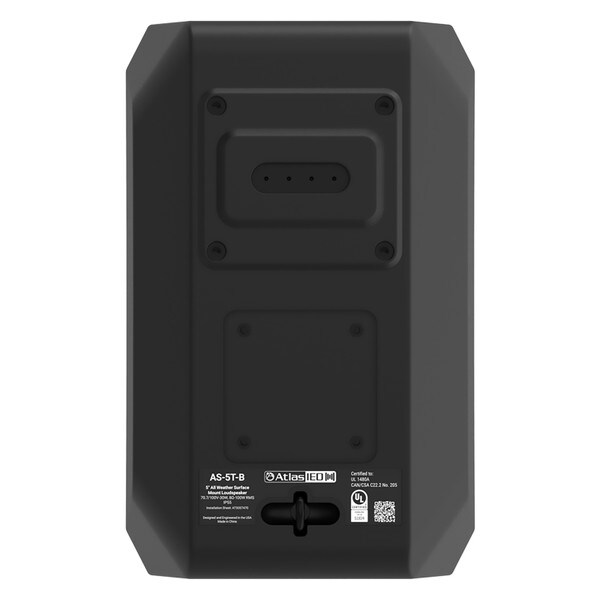

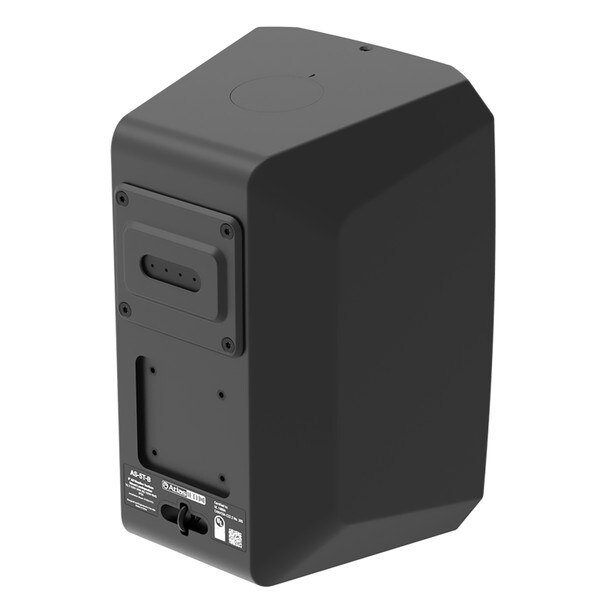

Installation is straightforward with the included slip-free yoke mount, optional universal mount, or third-party VESA mount compatibility, providing flexible mounting solutions.

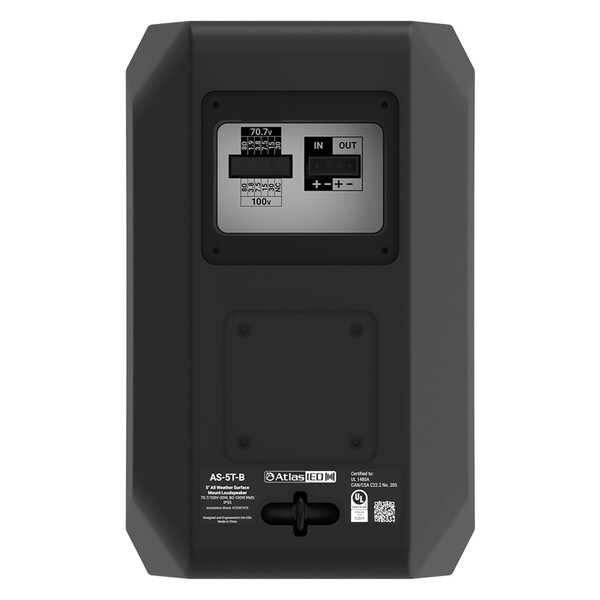

A low-insertion loss 30W transformer supports 70V or 100V distributed systems, with an easily adjustable wattage tap selection and low-impedance bypass via a rear-mounted slide selector switch with a security cover.

The AS-5T is acoustically matched with the full AS Series lineup, ensuring seamless integration in mixed installations. Advanced tunings are available through the Atmosphere DSP platform.

For precise system planning, designers and integrators can access a full suite of resources, including EASE compatibility (including EASE Focus), CF2, 3D CAD files, and BIM/Revit families, all available for download

Specifications

  • Type: Two-Way, Full Range, Surface Mount Loudspeaker
  • Frequency Range (-10dB): 63Hz-20kHz
  • Frequency Response (+/- 3dB): 95Hz-20kHz
  • System Sensitivity (1W @ 1m): 87dB
  • Nominal Coverage Angle (HxV -6dB): 120 x 120

Power Handling

  • Average: 100W
  • Programme: 200W
  • Peak: 400W
  • Recommended Amplifier Power: 200W @ 8 Ohms
  • Nominal Impedance: 8 Ohms (min 7.4 Ohms)

Rated Maximum SPL

  • Average: 107dB
  • Peak: 113dB
  • Width: 102dB
  • Transformer Taps - via Slide Selector Switch: 30W, 15W, 7.5W, 3.8W ( 1.9W 70V) & Low Z operation
  • Directivity Index (dB): 7.3

Physical Specifications

  • Dimensions (HxWxD): 10.9" x 6.88" x 7.6" (276.9mm x 174.8mm x 193.0mm)
  • Weight: 9.28 lbs (4.21kg)
  • Manufacturer Warranty Period: 60 months from date of purchase

AS Series Surface Mount Loudspeaker Universal Mounts

When the ideal mounting position isn't available, the AS Series universal mounts provide full flexibility for precise speaker aiming. Pre-set angles for both vertical and horizontal positioning allow for accurate and consistent speaker placement. Designed to endure the harshest environments, these universal mounts are built for long-lasting reliability.

Product Details

BrandAtlasIED
ModelAS-5T-B
Part Number242-9611
UPC612079703265
Unit of MeasureEach
Weight27.34

Product Specifications

ColorBlack
Configuration2-way
Input Rating200W
Mounting StyleSurface Mount
Woofer Diameter5.25"
