  • AtlasIED AS-10T-W 10" AS Series Surface Mount 70V/8 Ohm Speaker White

AtlasIED AS-10T-W 10" AS Series Surface Mount 70V/8 Ohm Speaker White

AtlasIEDPart # 242-9618
Model: AS-10T-W

The AS-10T-W is a 10" surface mount speaker in the Atlas AS Series. Built for diverse commercial applications from breweries to museums, the AS Series offers design flexibility while maintaining aesthetic continuity. Combining meticulous craftsmanship with exceptional performance, the AS Series delivers the perfect balance of style, sound, and reliability.

Key Features

  • Usable with a 70V, 100V, or an 8 Ohm power amplifier
  • Dependable horizontal coverage to deliver quality sound performance even off axis
  • Clean, minimalist aesthetic to fit into any architectural style
  • IP55 rated to resist damage from dust and water
  • The ABS plastic enclosure is UV resistant to stand up to years of full sunshine
  • Slip-free yoke mount included
  • Advanced tunings available via the Atlas Atmosphere DSP platform
Your Price: $900.99
+ FREE SHIPPING
MSRP: $1,125.99
Save $225.00 (20%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when AtlasIED AS-10T-W 10" AS Series Surface Mount 70V/8 Ohm Speaker White is back in stock or available for preorder.

Dropship Order Item
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED AS-10T-W 10" AS Series Surface Mount 70V/8 Ohm Speaker White

AS-10T-W 10" AS Series Surface Mount 70V/8 Ohm Speaker White

The Atlas AS-10T is a high performance, weather-resistant surface-mount loudspeaker designed for sound reinforcement applications where durability, sleek aesthetics, and superior audio performance are essential.

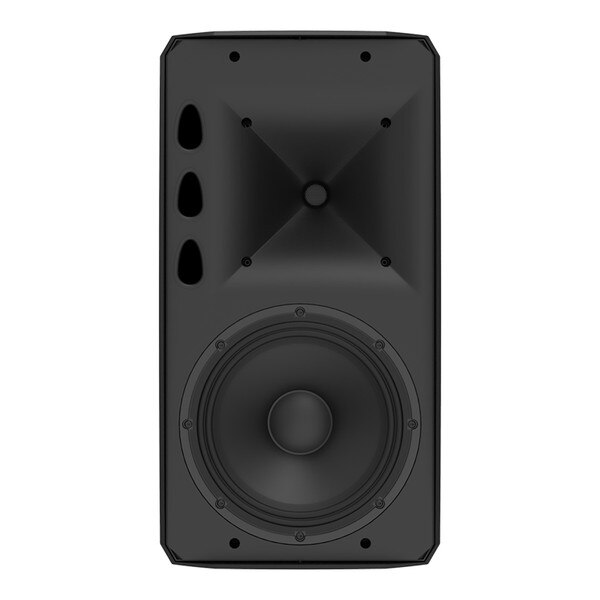

Featuring a high-excursion 10" polypropylene woofer paired with a 1" exit compression driver, the AS-10T delivers clear and consistent broadband frequency response, maintaining accuracy both on and off axis.

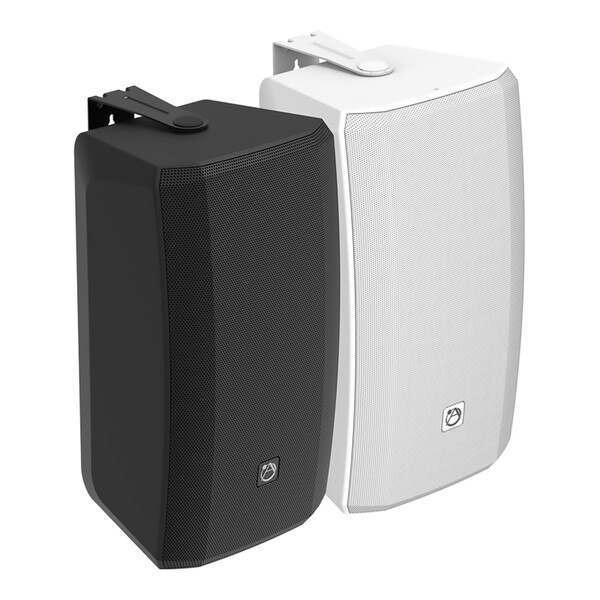

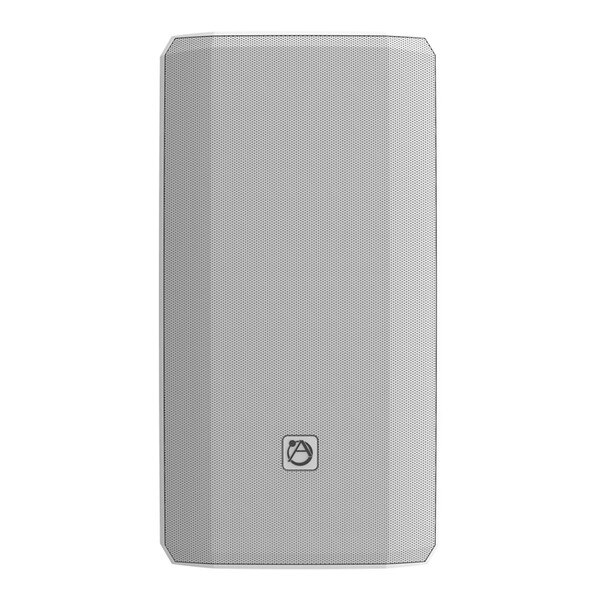

Available in textured black or white, its rugged, scuff-resistant ABS enclosure with a UV inhibitor ensures long-lasting durability and reliable performance in both indoor and outdoor environments. With an IP55 rating, it is built to withstand challenging weather conditions.

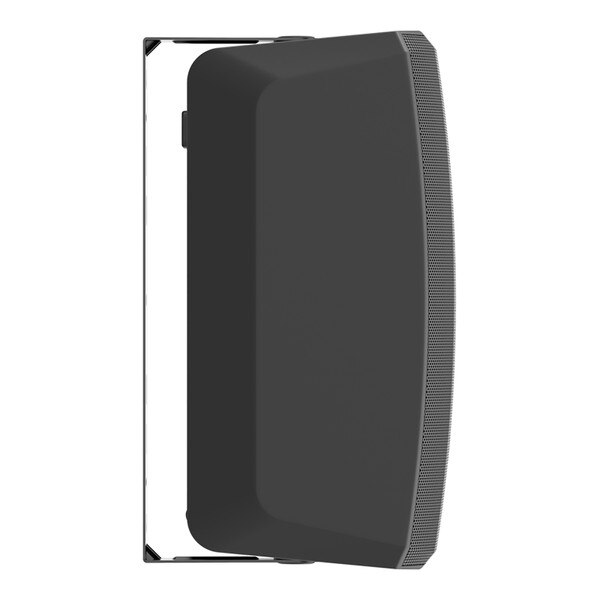

Installation is straightforward with the included slip-free yoke mount.

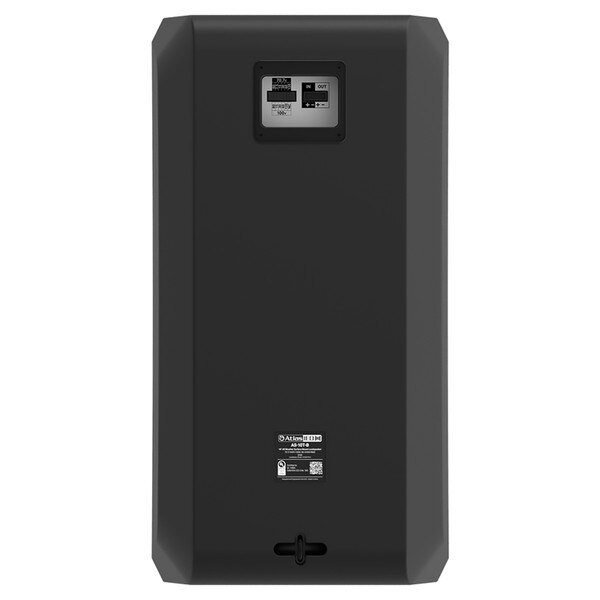

A low-insertion loss 120W transformer supports 70V or 100V distributed systems, with an easily adjustable wattage tap selection and low-impedance bypass via a rear-mounted slide selector switch with a security cover.

The AS-10T is acoustically matched with the full AS Series lineup, ensuring seamless integration in mixed installations. Advanced tunings are available through the Atmosphere DSP platform.

For precise system planning, designers and integrators can access a full suite of resources, including EASE compatibility (including EASE Focus), CF2, 3D CAD files, and BIM/Revit families, all available for download

Specifications

  • Type: Two-Way, Full Range, Surface Mount Loudspeaker
  • Frequency Range (-10dB): 45Hz-20kHz
  • Frequency Response (+/- 3dB): 58Hz-18kHzSystem
  • Sensitivity (1W @ 1m): 93dB
  • Nominal Coverage Angle (HxV -6dB): 100° x 90°

Power Handling

  • Average: 240W
  • Programme: 480W
  • Peak: 960W
  • Recommended Amplifier Power: 480W @ 8 Ohms
  • Nominal Impedance: 8 Ohms (min 8.15 Ohms)

Rated Maximum SPL

  • Average: 117dB
  • Peak: 123dB
  • With Max. Transformer Tap - Average: 114dB
  • Transformer Taps - via Slide Selector Switch: 120W, 60W, 30W, 15W ( 7.5W 70V) & Low Z operation
  • Directivity Index (dB): 8.5

Physical Specifications

  • Dimensions (HxWxD): 23.4" x 12.25" x 11.74" (594.4mm x 311.2mm x 298.2mm)
  • Weight: 35.63lbs (16.16kg)
  • Manufacturer Warranty Period: 60 months from date of purchase

Product Details

BrandAtlasIED
ModelAS-10T-W
Part Number242-9618
UPC612079703357
Unit of MeasureEach
Weight35.63

Product Specifications

ColorWhite
Configuration2-way
Input Rating480W
Mounting StyleSurface Mount
Woofer Diameter10"
