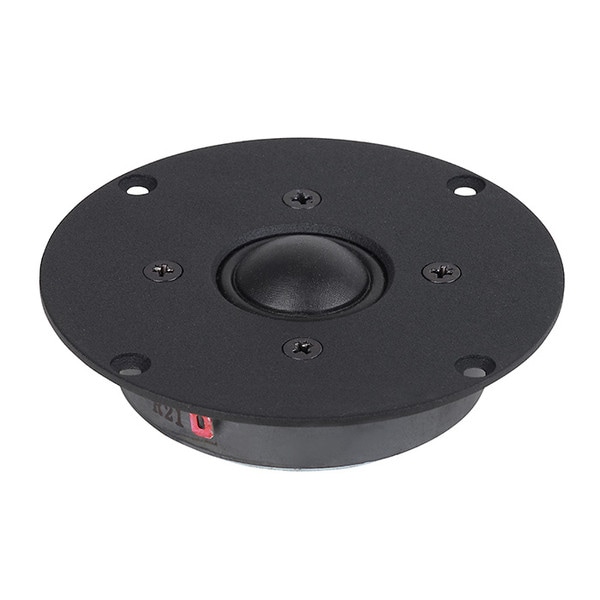

NEW Visaton G25FFL8 1" Fabric Dome Tweeter 8 Ohm

VisatonPart # 292-7802
Model: G 25 FFL

The Visaton G 25 FFL is a 25 mm (1") fabric dome tweeter engineered for high-frequency audio reproduction above 2,000 Hz. Its optimized dome shape, featuring a double coating and a highly damped surround, ensures a linear frequency response, delivering clear and detailed treble. The powerful magnetic driver and ferrofluid-cooled voice coil contribute to high efficiency and substantial power handling, making it suitable for high-fidelity audio applications.

Key Features

  • Frequency response from 1,000 to 30,000 Hz for extended high-frequency reproduction
  • Resonance frequency at 1,600 Hz contributing to clear high-frequency performance
  • Opening angle of 167° at 8,000 Hz for wide sound dispersion
  • Ferrofluid-cooled voice coil for enhanced efficiency and power handling
  • Peak power handling of 140 W with a 12 dB/octave high-pass filter at 2,000 Hz for robust performance
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Visaton DSM25FFL 1" Titanium Dome Tweeter 8 Ohm
Price: $82.48Part # 292-688
Visaton G25FFL8 1" Fabric Dome Tweeter 8 Ohm
Price: $87.98Part # 292-7802
See all items in Tweeters
NEW $87.98
Bulk Pricing
Quantity:Qty: 1-9 $87.98/ea
Quantity:Qty: 10+ $79.18/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Visaton G25FFL8 1" Fabric Dome Tweeter 8 Ohm is back in stock or available for preorder.

Estimated back in stock 8/29/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton G25FFL8 1" Fabric Dome Tweeter 8 Ohm

The G 25 FFL's design includes a 25 mm voice coil diameter and an effective piston area of 4.9 cm², contributing to its precise high-frequency reproduction. Its compact dimensions, with a cutout diameter of 80 mm, facilitate easy integration into various speaker systems. The tweeter's construction ensures durability and consistent performance, making it a reliable choice for both new builds and replacement applications in high-fidelity audio systems.

Technical Data

  • Nominal impedance: 8 Ohm
  • Frequency response: 1000-30000 Hz
  • Mean sound pressure level: 90 dB (1 W/1 m)
  • Opening angle: (-6 dB) 167°/8000 Hz
  • Resonance frequency fs: 1600 Hz
  • Magnetic induction: 1.7 T
  • Magnetic flux: 425 µWb
  • Height of front pole-plate: 2.5 mm
  • Voice coil diameter: 25 mm
  • Height of winding: 2 mm
  • Cutout diameter: 80 mm
  • Net weight: 0.56 kg
  • D.C. resistance Rdc: 5.6 Ohm
  • Mechanical Q factor Qms: 0.66
  • Electrical Q factor Qes: 1.11
  • Total Q factor Qts: 0.41
  • Effective piston area Sd: 4.9 cm²
  • Dynamically moved mass Mms: 0.3 g
  • Inductance of the voice coil L: 0.05 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Peak power handling with high pass: 140 W (12 dB/Okt.; 2000 Hz)180 W (12 dB/Okt.; 4000 Hz)
  • Nominal power handling with high pass: 80 W (12 dB/Okt.; 2000 Hz)120 W (12 dB/Okt.; 4000 Hz)

Product Details

BrandVisaton
ModelG 25 FFL
Part Number292-7802
Unit of MeasureEach
Weight0.79

Product Specifications

Nominal Diameter1"
Power Handling (RMS)80 Watts
Power Handling (MAX)140 Watts
Impedance8Ω
Frequency Response1000 to 30,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.984"

Thiele-Small Parameters

Resonant Frequency (Fs)1600Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)0.66
Electromagnetic Q (Qes)1.11
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)0.012ft³
Diaphragm Mass Inc. Airload (Mms)0.3g
Surface Area of Cone (Sd)4.9cm²

Mounting Information

Baffle Cutout Diameter3.150"
Depth0.945"
# Mounting Holes4
