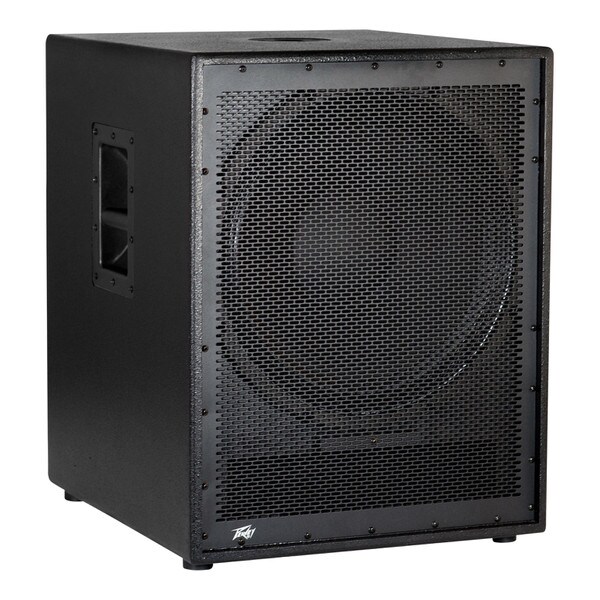

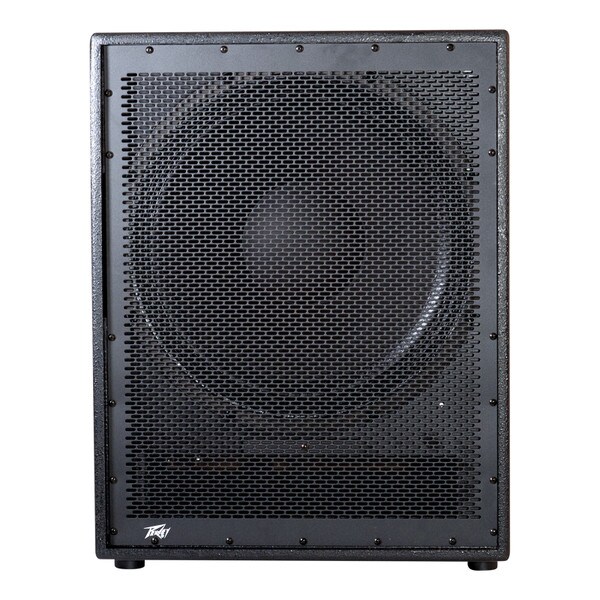

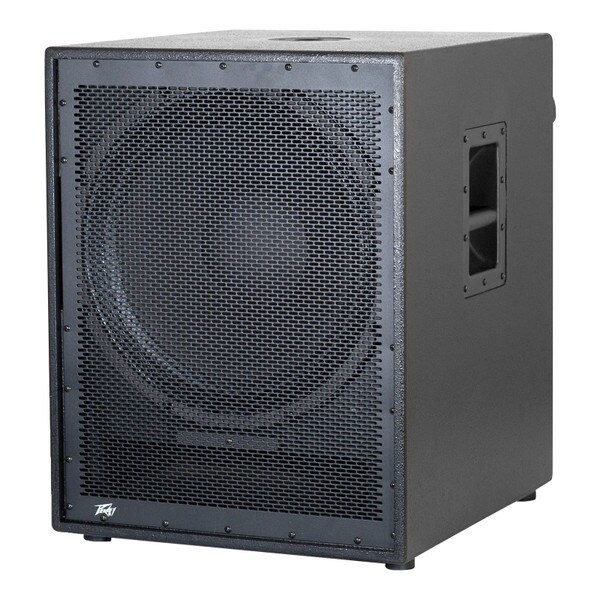

Peavey PVs 18 SUB 18" 1,000 Watt Powered SubwooferAt the core of the PVs 18 SUB is a 18-inch high-performance woofer, meticulously designed to produce bass that you can feel. Powered by 1,000 watts of dynamic power, this subwoofer ensures your audio has the depth and impact required to truly move your audience.
Peavey has always been synonymous with durability, and the PVs 18 SUB is no exception. Built to endure the demands of touring and consistent use, its rugged cabinet protects its components, ensuring that your subwoofer performs night after night.
Integration with your existing audio setup is effortless with the PVs 18 SUB. Balanced XLR inputs and outputs provide professional-grade connectivity, making it easy to link with mixers, main speakers, or additional subwoofers for a comprehensive sound system.
Despite its powerful output, the PVs 18 SUB boasts a compact design that offers versatility in placement. Whether it's on stage, in a studio, or part of a home theater setup, this subwoofer fits seamlessly into your space, delivering unmatched bass performance where you need it most.
The PVs 18 SUB comes equipped with an adjustable crossover and phase switch, allowing you to dial in the perfect bass response for your environment. These controls ensure that the subwoofer's output blends flawlessly with your main speakers, resulting in balanced, immersive sound across all frequencies.
- Frequency Response: 46 Hz – 180 Hz (Crossover Control Full CW), 46 Hz – 90 Hz (Crossover Control full CCW)
- Low Frequency range (-10 dB, half space): 43 Hz
- Power Amp Rating: 1,000 watts peak available power
- Sine wave Power: 500 watts into 4 ohms (Output duration is limiter controlled)
- Electronic Input Impedance (Nominal): Line In: 20 k ohms balanced (XLR or 1/4”), 10 k ohms unbalanced 1/4”
- Maximum Sound Pressure Level (1 meter in half space): 124 dB SPL continuous, 127 dB SPL peak
- 18” premium heavy-duty woofer, 3” voice coil, 113 oz. magnet.
- Box Tuning Frequency: 38 Hz

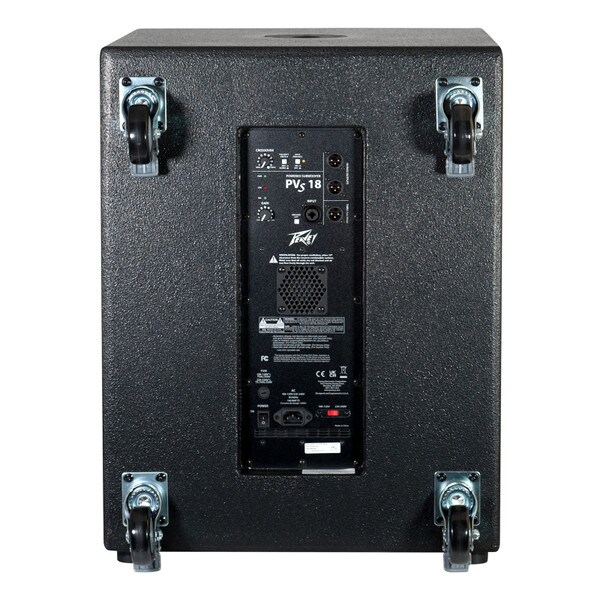

- Input Connections: One combo female XLR/ 1/4” phone jack providing balanced or unbalanced operation
- Electronic Input Impedance (Nominal): Line In: 20 k ohms balanced (XLR or 1/4”), 10 k ohms unbalanced 1/4”
- Output Connections: Two High Pass Outputs, One Full Range Thru
- Level Controls: Provides Off to + 20 dB gain adjustment
- Crossover Frequency Adjust: Adjusts electrical crossover frequency from 90 Hz to 180 Hz, in 15 discrete steps
- Polarity Switch: Provides either Normal (0 degrees) or Reversed (180 degrees) sub woofer polarity
- Ground Lift Switch for input
- Electronic Crossover: Linkwitz-Riley crossover variable from 90 Hz to 180 Hz.
- Low Pass slope: 24 dB/octave
- High Pass Output slope: 24 dB/octave
- Infrasonic Filter Slope: 36 dB/octave
- THD and IM: Typically less than 0.1 %
- Power Requirements: Nominal 160 Watts, 100-120 VAC 50-60 Hz
- Enclosure Materials & Finish: Black acrylic painted enclosure with 15 mm MDF, with a full-length, black powder coated perforated steel grille.
- Dimensions (H x W x D): 26.07 in. x 20.00 in. x 22.68 in. (662 mm x 508 mm x 603 mm)
- Net Weight: 94.5 Lbs. (43.0 kg)
- Mounting Provisions: Two 1 3/8” pole mounts with M20 threaded pole for stand mounting a suitable speaker on top of the Sub, and four large rubber feet on bottom and on the side for floor use. Threaded pole is supplied with the unit
