  • PRV Audio WGP14-50X Red Chrome 2" 45 x 45 Waveguide

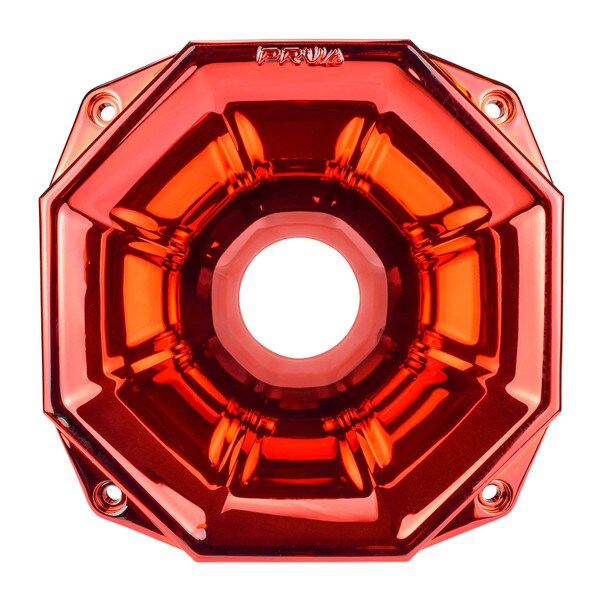

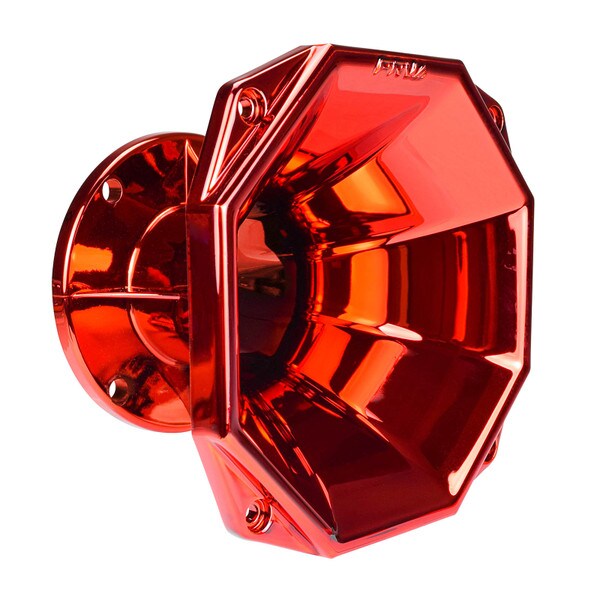

PRV Audio WGP14-50X Red Chrome 2" 45 x 45 Waveguide

PRV AudioPart # 294-3466
Model: WGP14-50X Red CR

Elevate your custom audio setup to new heights with the WGP14-50X Horn Series – a 2" throat exit waveguide meticulously crafted to complement any 2" Exit Compression Driver.

Key Features

  • Shallow Design allows to mount 2″ drivers with very little depth
  • Squared outside edges allow easy side or up stack of multiple drivers in a compact format
  • 2″ throat with standard 4-bolt mounting pattern
  • Non-resonant reinforced plastic construction
  • Wide Coverage with a Limit frequency of 700 Hz
Similar items that may interest you:
PRV Audio WGP14-50X SLIM Black 2" 60 x 60 Waveguide
Price: $19.91Part # 294-3456
See all items in Horns & Waveguides
Your Price: $29.91
MSRP: $37.39
Save $7.48 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio WGP14-50X Red Chrome 2" 45 x 45 Waveguide is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio WGP14-50X Red Chrome 2" 45 x 45 Waveguide

PRV WGP14-50X Horn Series

PRV Audio Group engineered the WGP14-50X Horn Series to deliver powerful low-frequency amplification in a compact design. Featuring a patented octagonal shape (Patent #29/842,663), this horn enhances dispersion and output while adding a bold, unique look.

Designed with a 2" throat exit, the WGP14-50X works seamlessly with any PRV 2" exit compression driver. The redesigned profile reduces mounting depth by 1.16" compared to the WGP14-50 series, now requiring only 3.86". This space-saving design provides more flexibility for custom installations, making it ideal for door panels and trunk systems.

A striking array of finishes set this horn apart, making it one of the most distinctive options in the car audio market today.

General Specifications

  • Throat Diameter: 2” (50.8 mm)
  • Mounting Type: Bolt-on
  • Hole Dimensions: 0.31″ (8 mm)
  • Bolt Circle: 4″ (102 mm)
  • Nominal Coverage: 60°Horizontal, 60° Vertical
  • Flare type: Hybrid
  • Material: Plastic (ABS)

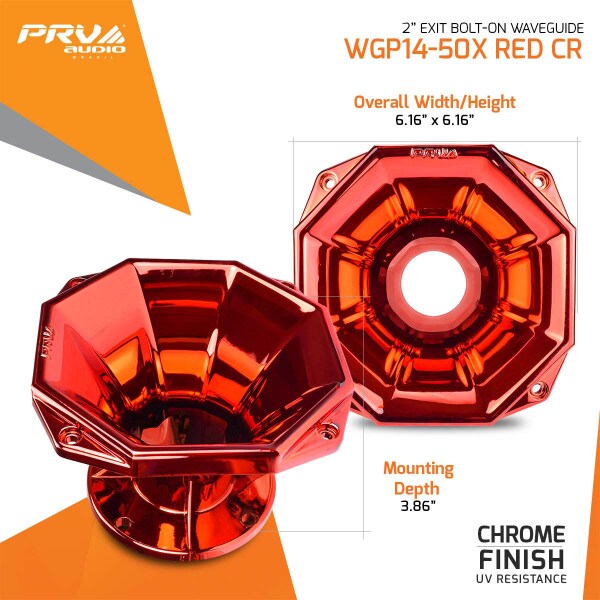

  • Dimensions (HxWxD): 6.16" x 6.16" x 4.37" (156.5mm x 156.5mm x 111mm)
  • Mounting Depth: 3.86″ (98 mm)
  • Baffle Cutout Diameter Circle: 5.75″ (146 mm)
  • Net weight: 0.46 lb (0.21 kg)

Product Details

BrandPRV Audio
ModelWGP14-50X Red CR
Part Number294-3466
UPC810075521658
Unit of MeasureEach
Weight0.5

Product Specifications

Entry / Throat Diameter2"
Mounting Type4-Bolt
