  • PRV Audio WGP14-50X SLIM Black 2" 60 x 60 Waveguide

PRV Audio WGP14-50X SLIM Black 2" 60 x 60 Waveguide

PRV Audio
Part #294-3456

PRV Audio WGP14-50X SLIM Black 2" 60 x 60 Waveguide

PRV Audio
Part #294-3456
Model: WGP14-50X SLIM

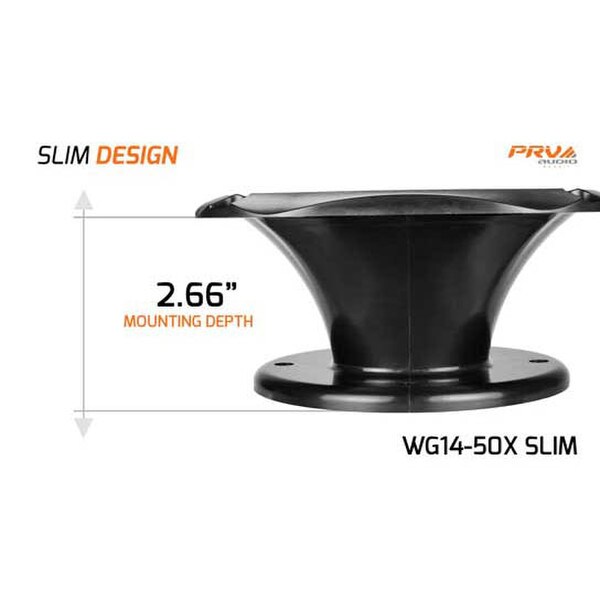

The PRV Audio WGP14-50X SLIM 2" bolt-on slim waveguide is a standout exponential horn tailored for your 2" exit compression driver. With a compact 2.66" mounting depth, this horn streamlines installation within confined areas.

Key Features
  • Its slim mounting depth of 2.66″, with a standard 6.14″ x 6.14″ faceplate, takes up very little mounting depth
  • Designed to deliver big performance in very limited space
  • Its 60° x 60° dispersion pattern is ideal for short throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 1,400 Hz
  • Includes 4x screws
Similar items that may interest you:
Your Price: $19.91
MSRP: $24.89
Save $4.98 (20%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

PRV Audio WGP14-50X SLIM Black 2" 60 x 60 Waveguide

PRV WGP14-50X Slim Horn Series

The WGP14-50X SLIM from PRV Audio is a 2" bolt-on slim waveguide designed for 2" exit compression drivers. With a compact 2.66" mounting depth, it offers easy installation in tight spaces.

Featuring a standard 4-bolt mount, it is compatible with most 2" compression drivers for versatile use. Constructed from durable, non-resonant ABS plastic, it is ideal for both automotive and outdoor applications. Acoustic loading remains effective down to 1400 Hz, delivering consistent performance.

General Specifications

  • Throat Diameter: 2” (50.8 mm)
  • Mounting Type: Bolt-on
  • Hole Dimensions: 0.31″ (8 mm)
  • Bolt Circle: 4″ (102 mm)
  • Nominal Coverage: 60° Horizontal, 60° Vertical
  • Flare type: Hybrid
  • Material: Plastic (ABS)
  • Dimensions (HxWxD): 6.14" x 6.14" x 2.97" (156mm x 156mm x 75.5mm)
  • Mounting Depth: 2.67″ (67.9 mm)
  • Baffle Cutout Diameter Circle: 5.59″ (142 mm)
  • Net weight: 0.42 lb (0.19 kg)

Product Details

BrandPRV Audio
ModelWGP14-50X SLIM
Part Number294-3456
UPC810075522730
Unit of MeasureEach
Weight0.65

Product Specifications

Entry / Throat Diameter2"
Mounting Type2-Bolt
