  • PRV Audio QS9000 1 Ohm QS Series 1-Channel Full-Range Amplifier 9000W

NEW PRV Audio QS9000 1 Ohm QS Series 1-Channel Full-Range Amplifier 9000W

PRV AudioPart # 294-3527
Model: QS9000 1 Ohm

The PRV Audio QS9000 1 Ohm is a powerful full-range mono amplifier built for demanding car audio systems. Its compact design delivers high output with exceptional efficiency and protection features. Engineered for reliability, it provides consistent performance for serious audio enthusiasts and competitors.

Key Features

  • 9,000 W RMS @ 1 Ω delivers demo-level output for large car audio systems
  • Digital Class D Brazilian design offers 77% efficiency for cooler, cleaner power
  • Built-in high- & low-pass filters streamline system tuning without external crossovers
  • Compact chassis fits easily in tight vehicle installations
  • Four-way protection circuit with LED indicators ensures long-term reliability
  • Premium RCA inputs maintain secure, vibration-resistant connections
  • Heavy-duty cast-aluminium heatsink and regulated supply maintain consistent output
NEW $699.91
+ FREE SHIPPING
MSRP: $874.89
Save $174.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio QS9000 1 Ohm QS Series 1-Channel Full-Range Amplifier 9000W is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio QS9000 1 Ohm QS Series 1-Channel Full-Range Amplifier 9000W

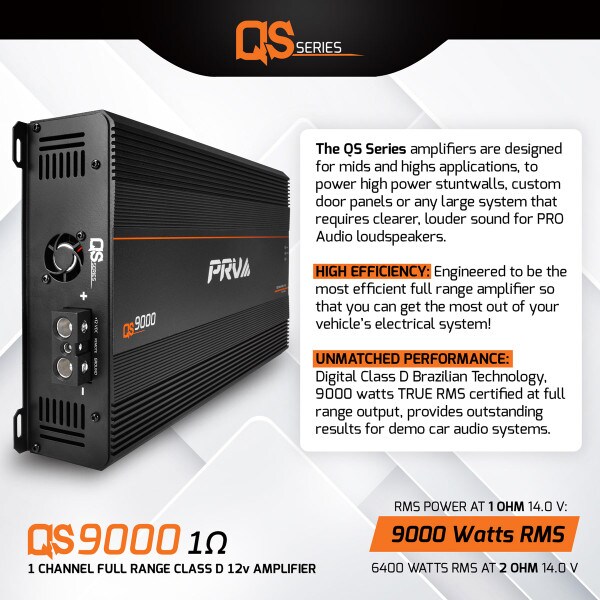

The QS Series amplifiers are built specifically for mids and highs, making them ideal for powering high-output stuntwalls, custom door panels, or any large-scale system demanding louder and more articulate sound reproduction for PRO Audio loudspeakers.

QS Series amplifiers focus on efficient engineering, delivering full-range frequency response performance at an affordable price.

The QS9000 is equipped with a regulated power supply that consistently delivers stable power output. Its design achieves an exceptional efficiency rate of 77%, minimizing energy loss. All of this performance is housed within a compact aluminum heatsink for effective thermal management.

  • 9000 watts true RMS at full range output using Digital Class D Brazilian Technology
  • 1-channel car amplifier stable at 1 ohm for flexible multi-speaker setups
  • High-efficiency full-range design to maximize output from your vehicle's electrical system
  • Compact chassis with 20″ x 10.25″ x 3″ dimensions for easy installation in tight spaces
  • 4-way protection circuitry includes high/low voltage, short, and current protection with top-mounted LED indicators

Channels1 Channel
Rated RMS Power at 14.0 V at 1 Ohm
9000 Watts
Rated RMS Power at 14.0 V at 2 Ohm
6400 Watts

High Power Amplifier designed for custom car audio systems, the QS series delivers premium Full Range HD Sound for clearer, louder output with PRO Audio loudspeakers. Ideal for 8x 12” loudspeakers, the QS9000 is stable at 1 Ohm, with a 2 Ohm version also available for added flexibility.

Its broad frequency response makes it suitable for a wide range of applications—including subwoofers, midbass, midrange, full-range speakers, phenolic and titanium drivers, and super tweeters. This all-purpose amplifier is an ideal fit for daily car audio systems that demand both power and versatility.

Built-in high and low pass filters give users the ability to fine-tune the frequency range for their setup—from deep bass to crisp highs.

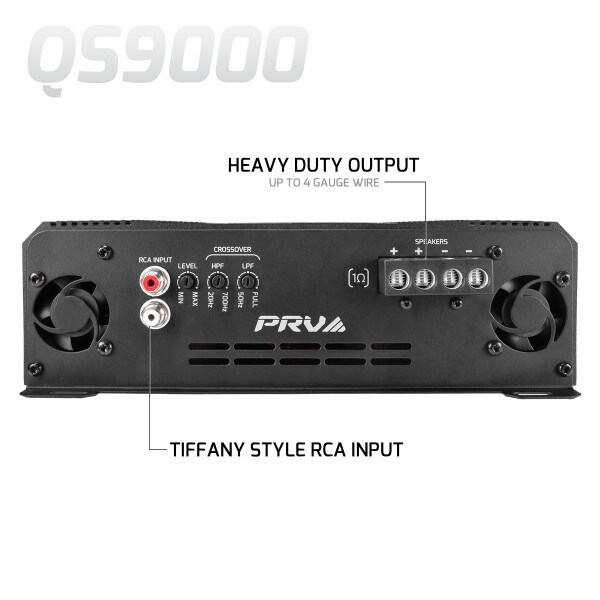

Premium Tiffany-style RCA inputs provide a secure, tight connection that minimizes issues from vibrations.

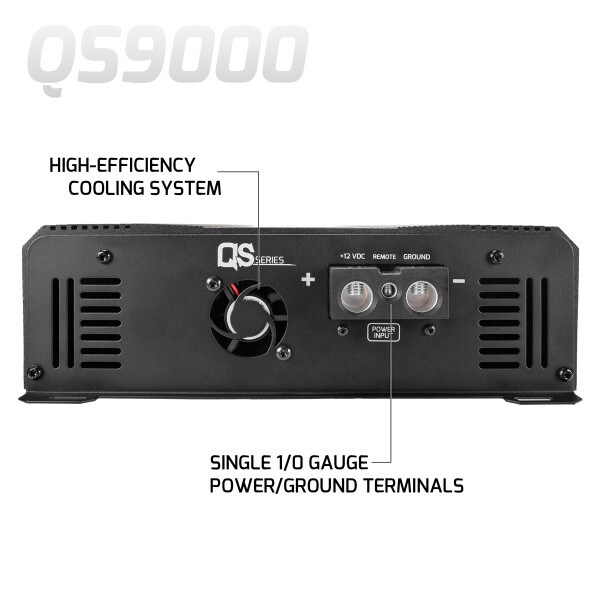

This proprietary heat dissipation design ensures high airflow, with cooling fans regulating temperature to keep the system running cool even during the most demanding playlists.

The LED indicator is a convenient built-in feature that lets you monitor your amplifier’s operating status in real time.

The clipping indicator flashes when the amplifier reaches its maximum clean power output, helping you maintain distortion-free performance. All functions are safeguarded by a four-stage intelligent protection circuit for reliable, long-term use.

Popular installation configurations with this amplifier:

1 Channel Configuration for 8 Ohm Components
Its high power output channel allows you to install 8x 8 Ohm Speakers in parallel at 1 Ohm, giving up to 1125 watts per component.

Before Installing

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

  • The gauge of the power supply wiring is extremely important to reach the desired amplifier output and for the amplifier’s safety. Not using the recommended wire gauge will result in power loss and overheating of cables. It is important that the power supply cables are the shortest possible length. Always use 100% Copper cables and good quality connectors. This guarantees the sound’s quality and fidelity; To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a fuse 12 inches away from the battery as a safety precaution
  • Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
  • In order to avoid interference, the signal cables ( RCA) must be kept away from the original wiring of the vehicle and from any other power supply cable.
  • Amplifier must be installed in a solid and ventilated area. Do not mount amplifier to the back of a subwoofer box; excess vibration may cause damage to the amplifier.

    The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

Specifications

  • Impedance: 1 Ohm
  • Channels: 1 Channel
  • Rated RMS Power at 14.0 V at 1 Ohm: 9000 Watts RMS
  • Rated RMS Power at 14.0 V at 2 Ohm: 6400 Watts RMS
  • Average Efficiency: 77%
  • Operating Voltage: 9 to 16 Volts
  • Musical Current Draw: 480 A
  • Minimal Power Wire Input: (OFC) 0 Gauge wires
  • Protection Fuse or Circuit Breaker: 500 Amps
  • Minimal Speaker Wire Output: Dual 12 Gauge

  • Frequency Response(-3dB): 20 – 15,000 Hz
  • Min. Input Sensitivity for Max. Output: 200 mV
  • Signal Input: 1 Pair RCA
  • Signal to Noise: >90 dB
  • Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
  • Heat Sink Type: Heavy Duty Cast Aluminum

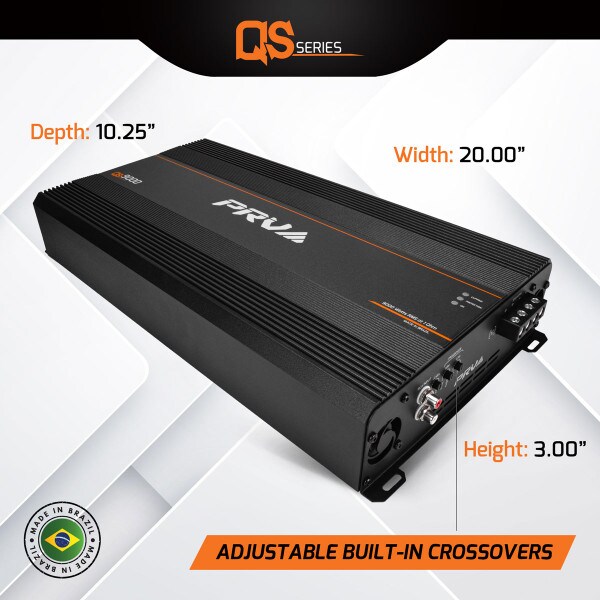

  • Dimensions ( Width x Depth x Height ): 20″ x 10.25″ x 3″
  • Weight: 16.30 Lbs

The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.

Product Details

BrandPRV Audio
ModelQS9000 1 Ohm
Part Number294-3527
UPC810075526431
Unit of MeasureEach
Weight18.15

Product Specifications

Input TypeRCA Line Level
Output Channels1
Special Features1 ohm Stable-2 ohm Stable
