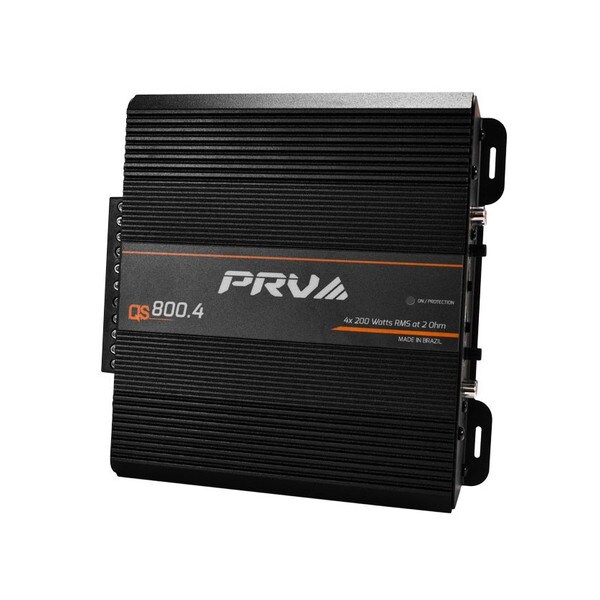

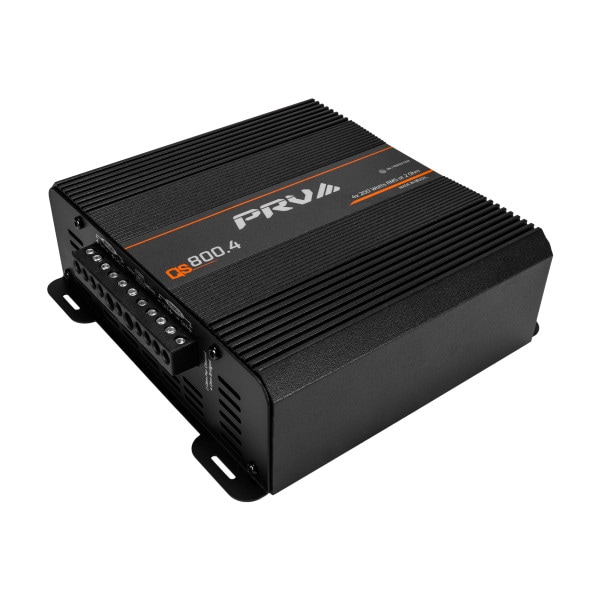

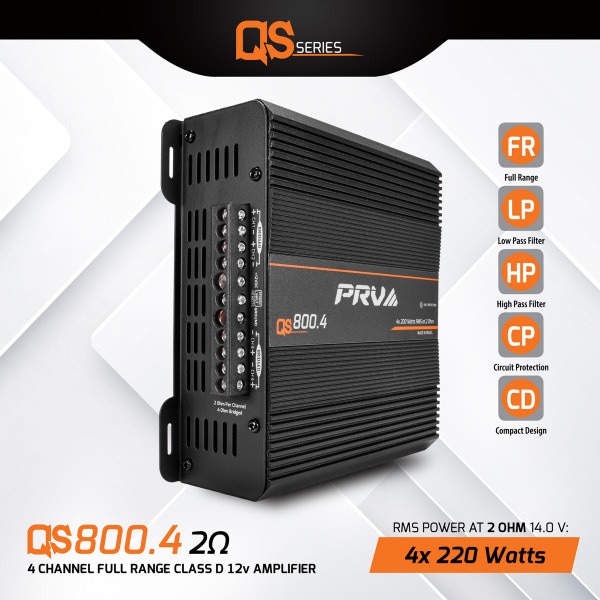

PRV Audio QS800.4 2 Ohm QS Series 4-Channel Full-Range Amplifier 220W

Name: PRV Audio QS800.4 2 Ohm QS Series 4-Channel Full-Range Amplifier 220W
Brand: PRV Audio
SKU: 294-3520
Price: 139.91 USD
Availability: OutOfStock

PRV AudioPart # 294-3520

Model: QS800.4 2 Ohms

1-Ch. 3000W 1Ω 1-Ch. 3000W 2Ω 1-Ch. 2000W 1Ω 1-Ch. 7000W 2Ω 1-Ch. 9000W 1Ω 1-Ch. 9000W 2Ω 1-Ch. 16000W 1Ω 1-Ch. 5000W 2Ω 4-Ch. 220W 2Ω 4-Ch. 100W 2Ω 4-Ch. 300W 2Ω

The PRV Audio QS800.4 is a compact 4-channel Class D car amplifier delivering 220 W RMS per channel into 2 Ω, bridgeable to two channels at 450 W each. It offers powerful, efficient operation in a minimalist chassis, ideal for full-range or subwoofer applications.

Key Features

4×220 W RMS @ 2 Ω for consistent, full-range output
Bridgeable to 2×450 W for enhanced subwoofer performance
Efficiency of 82% minimizes draw on vehicle electrics
Compact aluminum chassis (7.9″×8″×2.65″) fits tight spaces
Built-in 90 Hz high/low-pass crossover simplifies system setup
Heavy-duty cast-aluminum heatsink ensures reliable cooling
Frequency response from 20 Hz to 25 kHz delivers full-spectrum audio

See all items in Car Amplifiers

Your Price: $139.91

+ FREE SHIPPING

MSRP: $174.89

Bulk Pricing

Back-Ordered

Get Notified When Available

We'll send you an email when PRV Audio QS800.4 2 Ohm QS Series 4-Channel Full-Range Amplifier 220W is back in stock or available for preorder.

Estimated back in stock 10/24/2025

Alert Me When Available

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Overview

PRV Audio QS800.4 2 Ohm QS Series 4-Channel Full-Range Amplifier 220W

The QS Series amplifiers are built specifically for mids and highs, making them ideal for powering high-output stuntwalls, custom door panels, or any large-scale system demanding louder and more articulate sound reproduction for PRO Audio loudspeakers.

QS Series amplifiers focus on efficient engineering, delivering full-range frequency response performance at an affordable price.

The QS800.4 includes a regulated power supply that consistently delivers clean power while achieving an exceptional efficiency rate of 82%, all housed in a compact aluminum heatsink.

4 x 220 watts true RMS at full range output using Digital Class D Brazilian Technology
4-channel car amplifier stable at 2 ohms for flexible multi-speaker setups
High-efficiency full-range design to maximize output from your vehicle's electrical system
Compact chassis with 8″ x 7.9″ x 2.65″ dimensions for easy installation in tight spaces
Bridgeable to 2 channels for 2 x 450 watts RMS at 4 ohms minimum per bridged channel

Channels	4 Channel
Rated RMS Power at 14.0 V at 2 Ohm	4x 220 Watts
Rated RMS Power at 14.0 V at 4 Ohm	4x 140 Watts
Bridged Rated RMS Power at 14.0 V at 4 Ohm	2x 450 Watts

The QS Series is our latest lineup of full bridge, high-power amplifiers engineered for outstanding performance and value. Models like the QS800.4 and QS1200.4 expand the series with even more power options to suit a wide range of needs.

With broad frequency response, these amplifiers are compatible with everything from subwoofers and midbass drivers to full-range speakers and super tweeters, making them a highly adaptable solution for everyday car audio systems.

Its compact heatsink design delivers high-fidelity sound with tight midbass and crisp, detailed highs. Ideal for users seeking powerful audio performance without breaking the bank, this amplifier combines sound quality with value.

The proprietary heat dissipation system keeps temperatures low, even during intense listening sessions.

Before Installing

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 25A fuse 12 inches away from the battery as a safety precaution.

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.

Specifications

Impedance: 2 Ohm
Channels: 4 Channel
Rated RMS Power at 14.0 V at 2 Ohm: 4x 220 Watts RMS
Rated RMS Power at 14.0 V at 4 Ohm: 4x 140 Watts RMS
Bridged Rated RMS Power at 14.0 V at 4 Ohm: 2x 450 Watts RMS
Average Efficiency: 82%
Operating Voltage: 9 to 15 Volts
Musical Current Draw: 45 A
Minimal Power Wire Input: (OFC) 4 Gauge wires
Built-in Crossover: Fixed HPF & LPF at 90 Hz

Minimal Speaker Wire Output: 14 Gauge
Frequency Response(-3dB): 20 – 25,000 Hz
Min. Input Sensitivity for Max. Output: 200 mV
Signal Input: 2 Pair RCA
Signal to Noise: >90 dB
Protection System: High Temperature / Short circuit on Output
Heat Sink Type: Heavy Duty Cast Aluminum

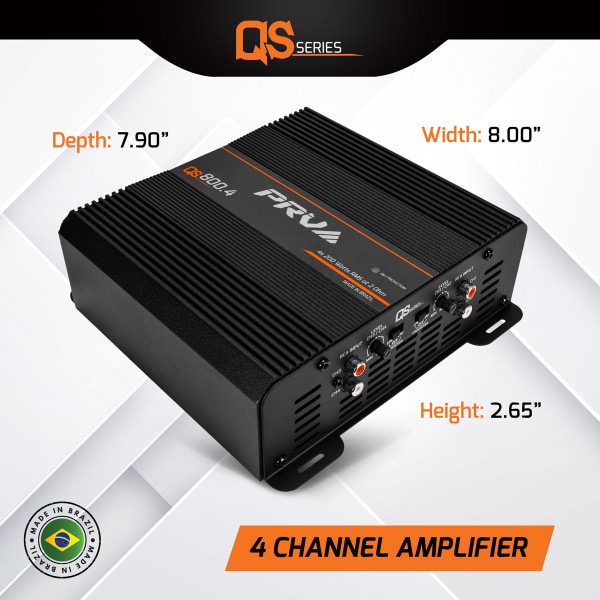

Dimensions ( Width x Depth x Height ): 7.90″ x 8.00″ x 2.65″
Weight: 3.80 Lbs

The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 100Hz to 1kHz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.

Product Details
Brand	PRV Audio
Model	QS800.4 2 Ohms
Part Number	294-3520
UPC	810075523973
Unit of Measure	Each
Weight	4.5
