  • PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm

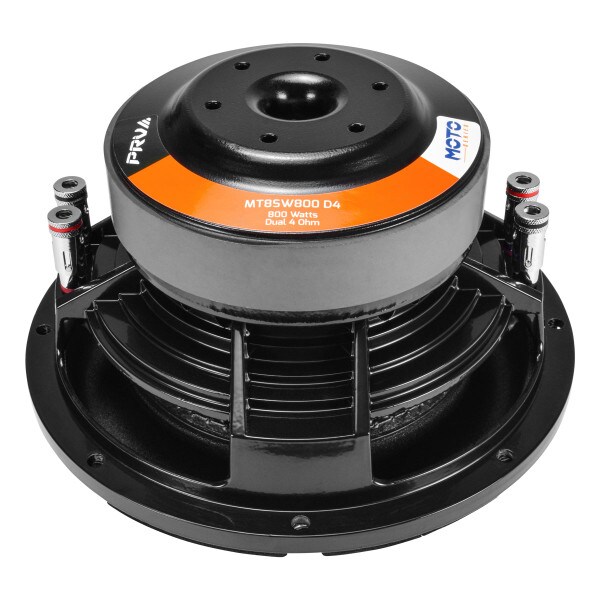

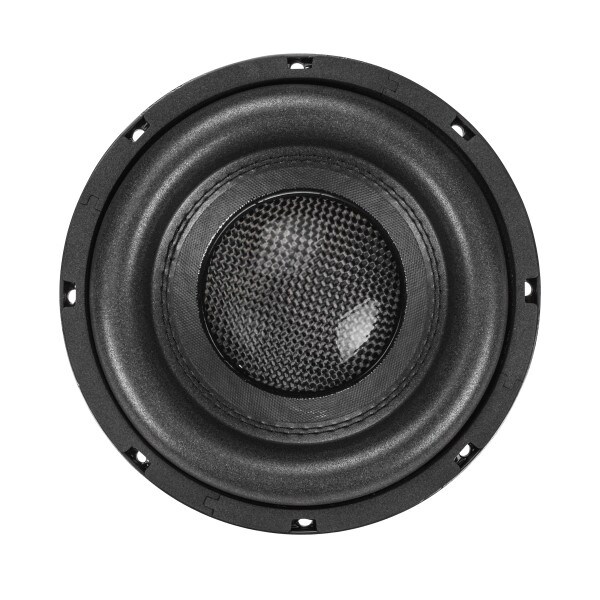

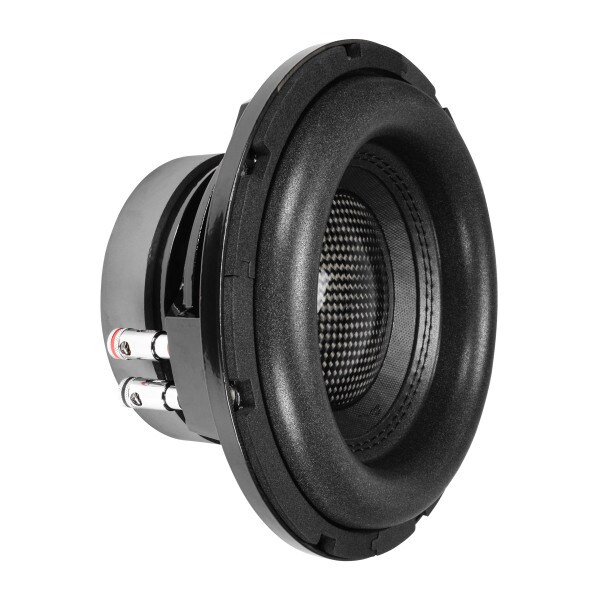

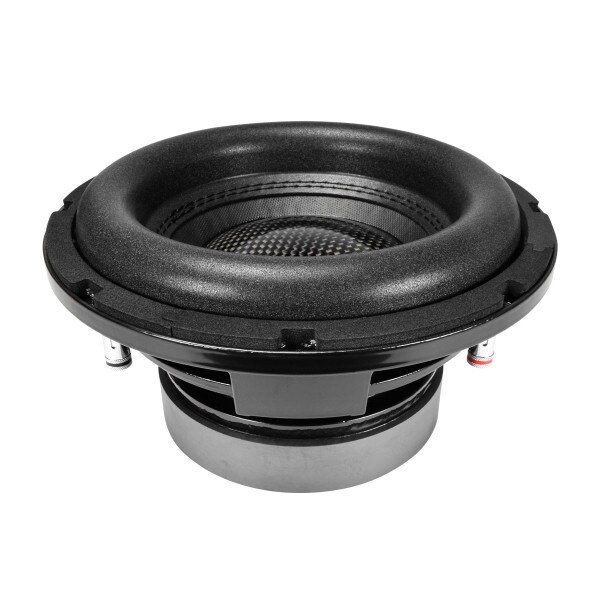

PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm

PRV AudioPart # 267-8044
Model: MT8SW800 D4
Read 8 Reviews or

Introducing the PRV MOTO Series, an innovative line of high-performance speakers engineered for the rigors of motorsports. Built with only the best components that are made to weather the great outdoors, the MOTO Series is here to upgrade your motorcycle, boat, ATV, side-by-side, and more. The MT8SW800 D4 is a dual voice coil shallow mount subwoofer that offers high quality low-end while only needing a saddlebag or slingshot pod.

Key Features

  • Dual 4 ohm voice coil offers more optionality when wiring to your amplifier
  • A great fit for a saddlebag with a size of only about a cubic foot
  • Weather-resistant to survive getting caught in the rain
  • A mere 4.01" mounting depth means this sub can fit nearly anywhere

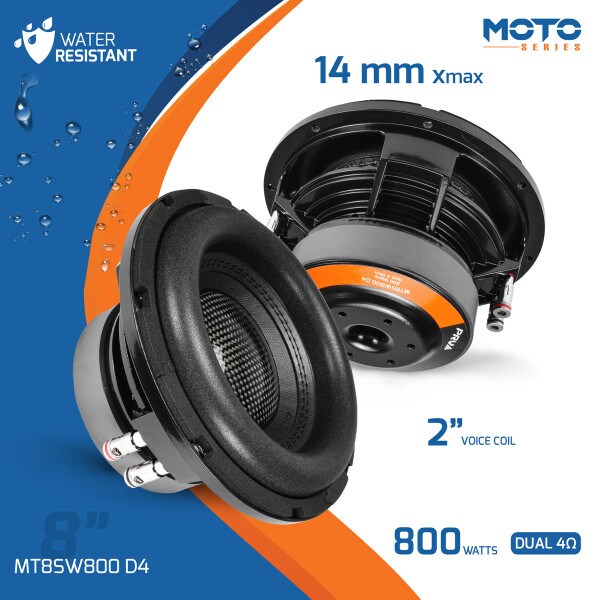

  • 14mm of Xmax offers deep bass reproduction without issue
  • Side Forced Cooling System will keep speaker cool as can be
  • Premium, durable craftmanship to withstand the open road
Your Price: $139.91
+ FREE SHIPPING
MSRP: $174.89
Save $34.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm

PRV Audio proudly introduces the MT8SW800 D4 Subwoofer from our MOTO Series (MT), a high-performance line built for motorsport installations.

Engineered for compact enclosures, this subwoofer fits perfectly in motorcycle saddlebags, slingshot pods, or similar enclosures around 1 cubic foot. Built with premium materials and components to resist the elements, it delivers powerful low-frequency performance whether you're riding or parked outdoors.

  • Delivers deep, powerful bass on the open road without taking up all your saddlebag space
  • 4-layer high-temperature copper voice coil supports 800 watts RMS program power, producing high acoustic output
  • High-roll U surround with dual-stitched cone attachment allows a generous 14 mm Xmax, enabling deep bass reproduction without compromise
  • Premium-grade spider with woven copper tinsel leads ensures durability and power handling, even at high excursion
  • Side-forced cooling system and vented backplate design improve heat dissipation for better performance

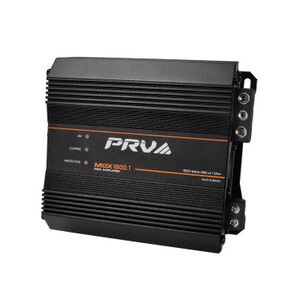

  • Dual 4 Ohm voice coil configuration, ideal for use with the Mini MDX1800.1 1 Ohm. Connect two subwoofers in parallel to achieve a 1 Ohm final load for maximum power output.

The shallow profile occupies minimal space, making it an excellent fit for any compact enclosure. Compact design is perfect for saddlebags with approximately 1 cubic foot, delivering impressive sound quality.

Recommended Enclosures:

  • Compact Sealed Box: 0.9 cubic feet
  • Compact Ported Box: 1 cubic foot with a 3″ diameter by 6″ long port tube, tuned at 47 Hz
  • Optimal Ported Box: 1.25 cubic feet with a 3″ diameter by 9″ long port tube, tuned at 39 Hz

This subwoofer sets a new standard for low-frequency performance in outdoor applications, making it perfect for enhancing the sound system in your boat, UTV, ATV, boat, or motorcycle. This 8-inch subwoofer produces powerful bass you can truly feel in open environments—not just vibrations.

Specifications

  • Nominal Diameter: 8″ (203 mm)
  • Nominal impedance: 4 + 4 Ohm
  • Nominal Power Handling: 400 Watts
  • Continuous Program Power (RMS): 800 Watts
  • Max Peak Power: 1600 Watts
  • Sensitivity 1.41V at 1m: 81 dB (Parallel VC)
  • Voice Coil Diameter: 2.0″ (50 mm)
  • Voice Coil Wire: Copper
  • Voice Coil Winding Depth: 33.0 mm
  • Former Material: Black Aluminum
  • Magnetic Gap Depth: 10 mm
  • Frame Material: Die Cast Aluminum

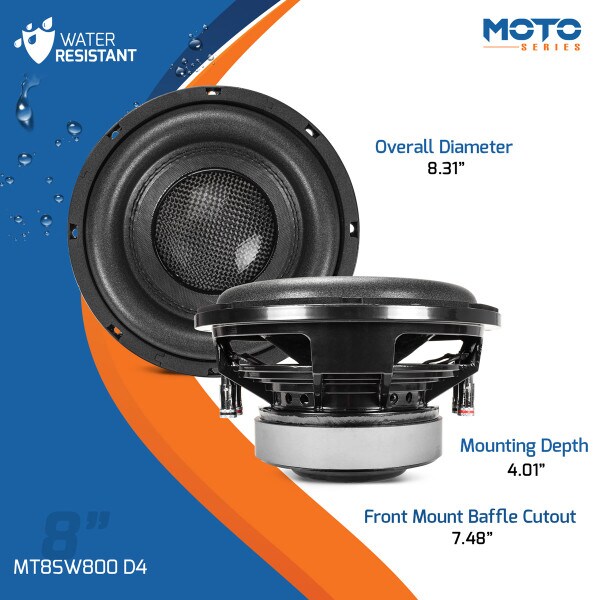

  • Overall Diameter: 8.31″ (211 mm)
  • Front Mount Baffle Cutout: 7.48″ (190 mm)
  • Mounting Depth: 4.01″ (102 mm)
  • Overall Depth: 5.00″ (127 mm)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
ModelMT8SW800 D4
Part Number267-8044
UPC810075525779
Unit of MeasureEach
Weight9.92

Product Specifications

Nominal Diameter8"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance8Ω
Sensitivity81dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)45.15Hz
DC Resistance (Re)1.7Ω
Voice Coil Inductance (Le)1.18mH
Mechanical Q (Qms)10.35
Electromagnetic Q (Qes)1
Total Q (Qts)0.92
Compliance Equivalent Volume (Vas)0.29ft³
Mechanical Compliance of Suspension (Cms)0.129mm/N
BL Product (BL)6.78T·m
Diaphragm Mass Inc. Airload (Mms)96.23g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)213cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter8.31"
Baffle Cutout Diameter7.48"
Depth5"
# Mounting Holes4
