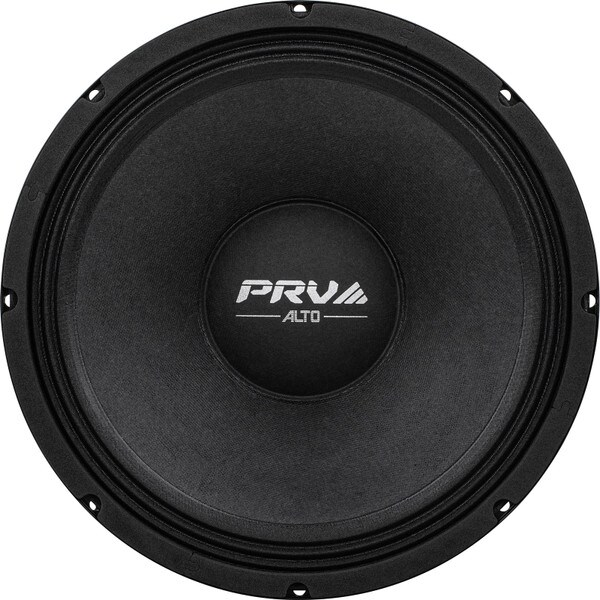

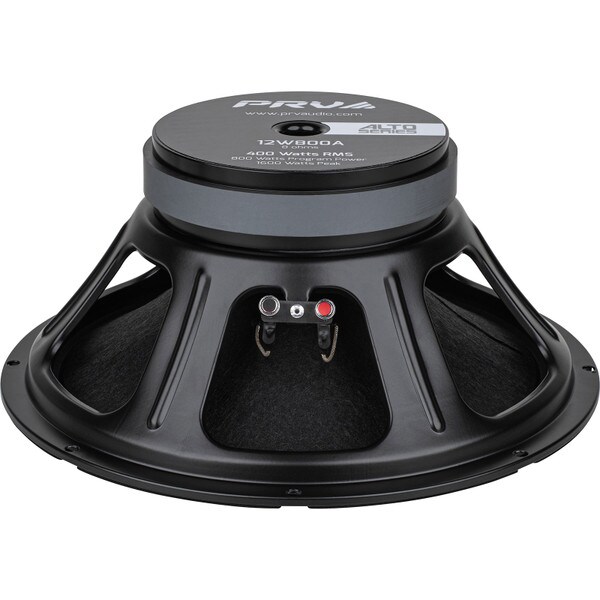

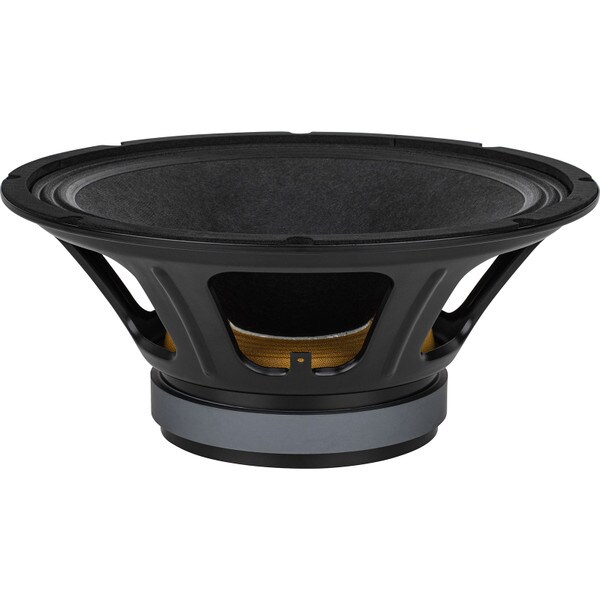

PRV Audio 12W800A Alto Series 12" Pro Woofer 8 Ohm

PRV AudioPart # 294-3169
Model: 12W800A

The PRV Audio 12W750A is a 12" woofer from the Alto Series, designed for high-output applications requiring natural, dynamic sound. With a program power rating of 750W, it delivers robust performance suitable for various setups, including two-way and three-way systems, as well as bass guitar and guitar speakers.

Key Features

  • 2.5" CCAW voice coil on Kapton former allows high power handling
  • Multi-roll surround and large flat spider maintain linearity at high output
  • Vented pole piece dissipates heat to minimize power compression
  • Frequency response of 60–5,500 Hz covers critical low to midrange frequencies
  • Suitable for vented and sealed enclosures
Your Price: $89.91
MSRP: $112.39
Save $22.48 (20%)
Bulk Pricing
Only 3 In Stock More due on 4/13/2026
Get Notified When Available

We'll send you an email when PRV Audio 12W800A Alto Series 12" Pro Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 0 hr 48 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12W800A Alto Series 12" Pro Woofer 8 Ohm

PRV Audio 12W800A Alto Series 12" Pro Woofer 8 Ohm

High fidelity meets high output in PRV Audio's Alto Series Woofers. Experienced audio engineers and musicians know that tone is crucial to a great performance, whether in the studio or on stage. That’s why PRV Audio’s Alto Series woofers are thoughtfully designed and voiced to deliver smooth, natural sound with dynamic range.

With greater excursion and higher power handling than PRV’s 12W750A, the 12W800A Alto Series 12″ professional woofer delivers more output capability and stronger low-frequency impact.

  • Nominal Impedance: 8 Ohms
  • 800 Watts program RMS power delivers strong acoustic output
  • 55 to 5,800 Hz frequency response makes this midbass/woofer ideal for two- or three-way designs
  • Handles extreme output levels with 97 dB sensitivity
  • 5.72 mm Xmax enables excellent excursion for impactful bass performance

The 12W800A’s rugged build makes it dependable for heavy-duty use, offering long-lasting durability in high-demand situations. Its advanced thermal management system keeps the driver running cool under stress, while its low distortion design provides powerful midbass that remains dynamic, clear, and accurate across applications.

Equipped with a multi-roll surround, oversized raised spider, and lightweight 2.50″ voice coil, the 12W800A delivers high output levels without sacrificing control. This careful combination of components helps maintain stability during large excursions while minimizing unwanted distortion, resulting in a clean, impactful performance.

With its generous 5.72 mm Xmax, the 12W800A is built to handle deep excursion tones while preserving clean, accurate playback. This capability translates into powerful low-frequency output that maintains clarity and definition, even when reproducing vocals. Whether you’re designing a home theater system or building a high-output car audio setup such as a stuntwall, the 12W800A delivers the precision and authority needed for impactful sound. Its ability to combine strong bass performance with detailed reproduction makes it a versatile choice across demanding applications.

This Woofer works great as a midbass speaker for custom car audio systems, designed for use in compact ported box, also works very well as door speakers. See stuntwall recommended box for optimal output below:

4 Triangle Ported box volume: 0.70 ft³
(approx: 12” x 12” x 8.5” inside dimensions) ¾ Wood
Port size: 3” x 3”x 4.25” by 5” deep.

How to Install them:
This midbass speaker will need 800 Watts RMS per speaker with recommended HPF using PRV Digital Signal Processor DSP

  • 115 Hz at 12 dB per octave filter Crossover / BT12
  • 105 Hz at 18 dB per octave filter Crossover / BT18

4 Speakers – 1x QS3000 at 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS7000 at 1 Ohm, 8 speakers in parallel

If you have compression drivers on your system the recommended LPF is 2,000 Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response

General Specifications

  • Nominal Diameter: 12″ (305 mm)
  • Nominal impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 400 Watts
  • Program Power: 800 Watts
  • Sensitivity 2.83V at 1m: 97 dB
  • Recommended Hi Pass Crossover:** 115 Hz**
  • **For Full Power Handling **12db Per Octave Crossover
  • Frequency Response at -10dB: 55 – 5800 Hz
  • Voice Coil Diameter: 2.5″ (65.5 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 16.2 mm
  • Former Material: Polyimide
  • Magnetic Gap Depth: 9.5 mm
  • Frame Material: Stamped Steel
  • Overall Diameter: 12.03” (305.5 mm)
  • Front Mount Baffle Cutout: 11.06” ( 281 mm)
  • Mounting Depth: 4.96” (126 mm)
  • Overall Depth: 5.22” (132.5 mm)
  • Net Weight: 10.8 Lbs (4.9 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
Model12W800A
Part Number294-3169
UPC619620088338
Unit of MeasureEach
Weight12.25

Product Specifications

Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response55 to 5,800Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)49.8Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)0.45mH
Mechanical Q (Qms)11.89
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)3.31ft³
Mechanical Compliance of Suspension (Cms)0.221mm/N
BL Product (BL)12.7T·m
Diaphragm Mass Inc. Airload (Mms)46.24g
Maximum Linear Excursion (Xmax)5.72mm
Surface Area of Cone (Sd)552cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.03"
Baffle Cutout Diameter11.6"
Depth5.22"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F386.4Hz
Vented Volume2.25ft³
Vented F356.3Hz
