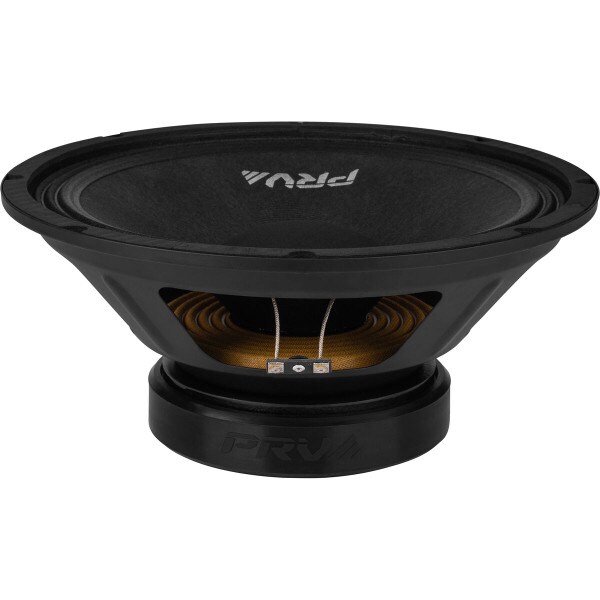

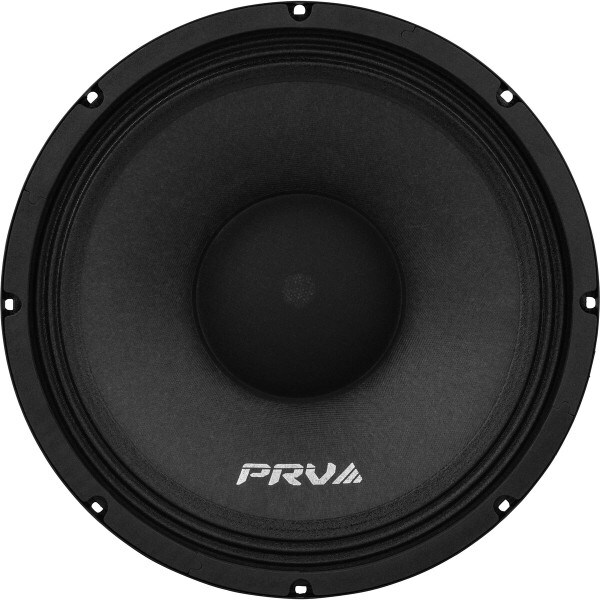

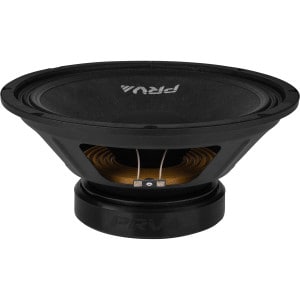

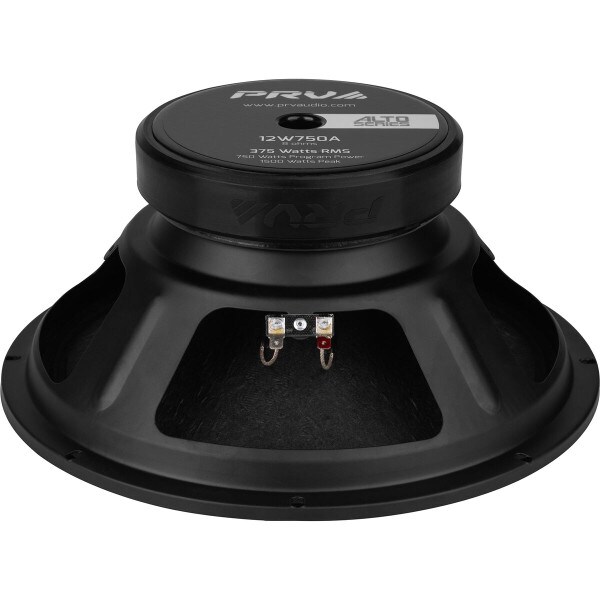

PRV Audio 12W750A Alto Series 12" Pro Woofer 8 Ohm

PRV AudioPart # 294-2736
Model: 12W750A

The PRV Audio 12W750A is a 12" woofer from the Alto Series, designed for high-output applications requiring natural, dynamic sound. With a program power rating of 750W, it delivers robust performance suitable for various setups, including two-way and three-way systems, as well as bass guitar and guitar speakers.

Key Features

  • 2.5" CCAW voice coil on Kapton former allows high power handling
  • Multi-roll surround and large flat spider maintain linearity at high output
  • Vented pole piece dissipates heat to minimize power compression
  • Frequency response of 60–5,500 Hz covers critical low to midrange frequencies
  • Suitable for vented and sealed enclosures
Your Price: $84.91
MSRP: $106.14
Save $21.23 (20%)
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 12W750A Alto Series 12" Pro Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12W750A Alto Series 12" Pro Woofer 8 Ohm

PRV Audio 12W750A Alto Series 12" Pro Woofer 8 Ohm

PRV Audio ALTO Series Woofers bring together high fidelity and high output for professionals and enthusiasts alike. Both audio engineers and performing musicians understand that tonal quality can define a performance, whether on stage or in the studio. With this in mind, the Alto Series woofers are designed and voiced to deliver a smooth, natural character while still maintaining dynamic presence and power.

  • Nominal Impedance: 8 Ohms
  • 750 Watts Program RMS power delivers high acoustic output
  • 60 to 5,500 Hz frequency response makes this midbass/woofer ideal for two or three-way systems
  • 97 dB sensitivity allows extreme output levels
  • 3.62 mm Xmax provides excellent displacement for impactful bass performance

The 12W750A was designed for use in compact ported enclosures, making it an excellent choice when high efficiency and strong output are the priority. This low-frequency midbass driver is carefully voiced to deliver a natural tone with minimal distortion, even at high levels.

To achieve its performance, it incorporates a multi-roll surround, a large raised spider, and a lightweight 2.50″ voice coil combined with a woven-cloth dustcap. This design reduces moving mass, boosts sensitivity, and improves cooling of the voice coil.

Due to strong demand, PRV Audio released an improved version: the 12W800A. Part of the Alto Series, this updated 12″ professional woofer offers greater excursion and higher power handling, providing enhanced output capability and deeper low-frequency impact compared to the original 12W750A.

Recommended Amplifier configurations and crossover points:
4 Speakers – 1x QS3000 at 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS7000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 750 Watts RMS musical power ( without clipping )

  • 125 Hz at 12 dB per octave filter Crossover / BT12
  • 115 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 2,000 Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

General Specifications

  • Nominal Diameter: 12″ (305 mm)
  • Nominal impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 375 Watts
  • Program Power: 750 Watts
  • Sensitivity 2.83V at 1m: 97 dB
  • Recommended Hi Pass Crossover:** 200 Hz**
  • **For Full Power Handling **12db Per Octave Crossover
  • Frequency Response at -10dB: 60 – 5,500 Hz
  • Voice Coil Diameter: 2.5″ (65.5 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 11.5 mm
  • Former Material: Kapton
  • Magnetic Gap Depth: 8.5 mm
  • Frame Material: Stamped Steel
  • Overall Diameter: 12.20” (310 mm)
  • Front Mount Baffle Cutout: 11.06” ( 281 mm)
  • Mounting Depth: 5.12” (130 mm)
  • Overall Depth: 5.47” (139 mm)
  • Net Weight: 10.85 Lbs (4.92 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
Model12W750A
Part Number294-2736
UPC799928734837
Unit of MeasureEach
Weight11.9

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.5
Power Handling (RMS)375 Watts
Power Handling (MAX)750 Watts
Impedance8Ω
Frequency Response60 to 5,500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)59.87Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.71mH
Mechanical Q (Qms)17.45
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)2.86ft³
Mechanical Compliance of Suspension (Cms)0.169mm/N
BL Product (BL)14.29T·m
Diaphragm Mass Inc. Airload (Mms)41.72g
Maximum Linear Excursion (Xmax)3.62mm
Surface Area of Cone (Sd)585cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.20"
Baffle Cutout Diameter11.06"
Depth5.47"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.1ft³
Sealed F3110.9Hz
Vented Volume2.13ft³
Vented F365.9Hz
