  • PRV Audio 12MR2000-NDY 12" Neodymium Professional Midrange 8 Ohm

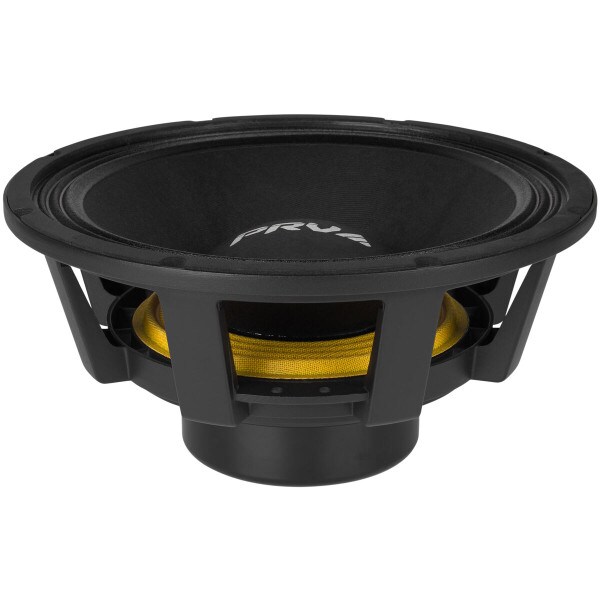

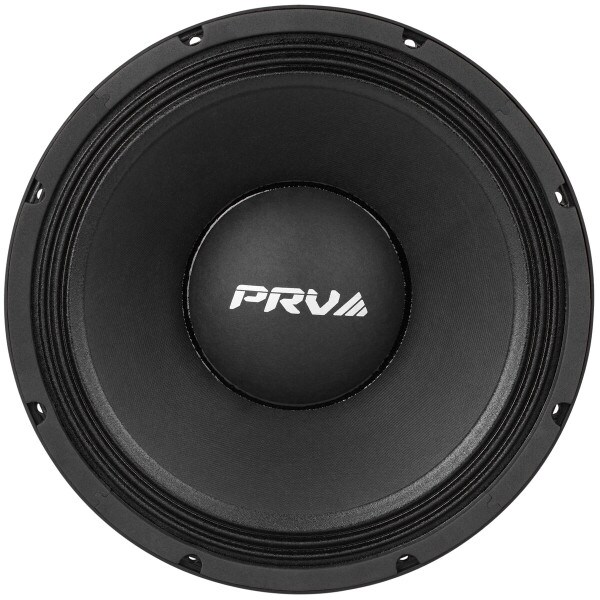

PRV Audio 12MR2000-NDY 12" Neodymium Professional Midrange 8 Ohm

PRV AudioPart # 294-2748
Model: 12MR2000-NDY
PRV Audio designed the 12MR2000-NDY for maximum midbass punch and exceptional midrange clarity to meet the demands of today’s high SPL systems. Featuring a new motor, voice coil, and suspension, the 12MR2000-NDY will deliver reliable performance in any high SPL installation.

Key Features

  • Neodymium motor reduces weight without sacrificing anything
  • Inside-outside wound voice coil distributes heat evenly for lower compression
  • Extensive venting keeps voice coil cool at high power handling over long periods
  • Solid cast frame provides rigid support for the large neodymium magnet
Your Price: $279.91
+ FREE SHIPPING
MSRP: $349.89
Save $69.98 (20%)
Bulk Pricing
14 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 12MR2000-NDY 12" Neodymium Professional Midrange 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12MR2000-NDY 12" Neodymium Professional Midrange 8 Ohm

PRV Audio 12MR2000-NDY 12" Neodymium Professional Midrange 8 Ohm

The new 12MR2000-NDY sets a new standard in vocal reproduction! It features a large 4” CCAW inside/outside voice coil, delivering exceptional efficiency along with smooth, precise midrange response.

    Specifications

  • Nominal Diameter: 12″ (305 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling* 1000 Watts
  • Continuous Program Power (RMS)** 2000 Watts
  • Max Peak Power*** 4000 Watts
  • Sensitivity 2.83V at 1m 98 dB
  • Recommended Hi Pass Crossover 145 Hz
    For Full Power Handling 12db Per Octave Crossover
  • Frequency Response at -10dB 68 – 4,800 Hz
  • Voice Coil Diameter 4″ (100 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth 16.8 mm
  • Former Material Glass Fiber
  • Magnetic Gap Depth 9.0 mm
  • Frame Material Die Cast Aluminum
  • Overall Diameter 12.32” (313 mm)
  • Front Mount Baffle Cutout 11.12” (282.5 mm)
  • Mounting Depth 5.51” (140 mm)
  • Overall Depth 5.94” (151 mm)
  • Net Weight 13.93 Lbs (6.32kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
Model12MR2000-NDY
Part Number294-2748
UPC602938021449
Unit of MeasureEach
Weight15.8

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response55 to 5,500Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)54.48Hz
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)0.69mH
Mechanical Q (Qms)17.61
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)1.7ft³
Mechanical Compliance of Suspension (Cms)0.11mm/N
BL Product (BL)22.77T·m
Diaphragm Mass Inc. Airload (Mms)81.11g
Maximum Linear Excursion (Xmax)6.15mm
Surface Area of Cone (Sd)573cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.32"
Baffle Cutout Diameter11.12"
Depth5.54"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F3130.2Hz
Vented Volume1.75ft³
Vented F354.6Hz
