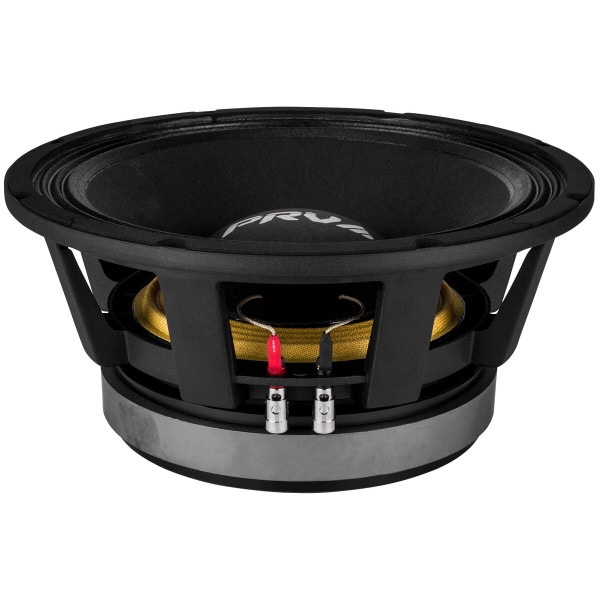

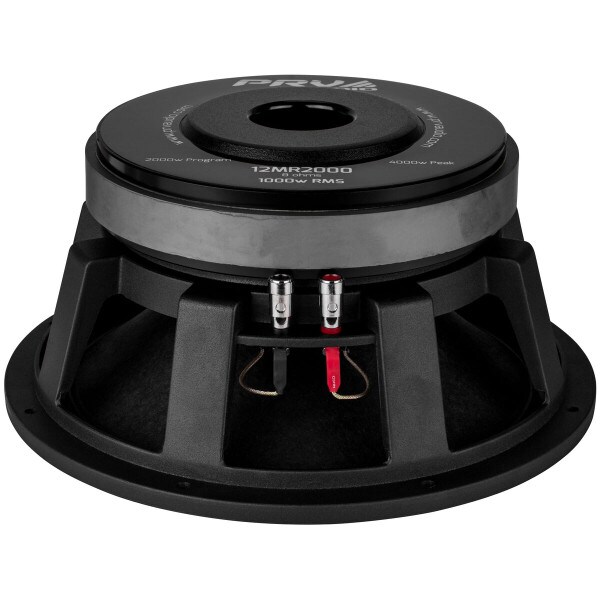

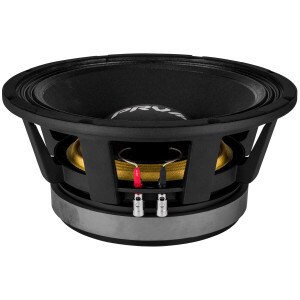

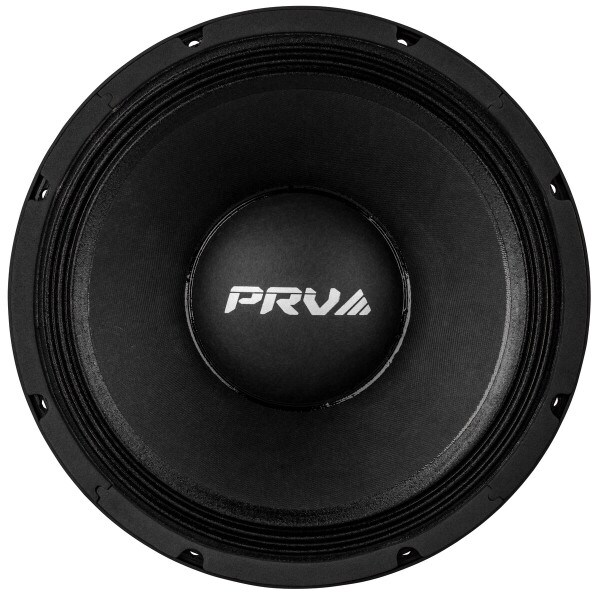

PRV Audio 12MR2000 12" Pro Audio Midrange Woofer 8 Ohm

PRV Audio
Part #294-2733

PRV Audio 12MR2000 12" Pro Audio Midrange Woofer 8 Ohm

PRV Audio
Part #294-2733
Model: 12MR2000

The PRV Audio 12MR2000 is a powerful 12-inch midrange loudspeaker designed for professional audio and extreme car audio applications. Delivering high efficiency and accurate bass response, it is an ideal solution for two or three-way systems and stage monitors. Its robust construction and advanced design ensure long-lasting performance in demanding environments.

Key Features
  • 4-inch CCAW voice coil for exceptional efficiency and precise sound reproduction
  • Thick yet lightweight cone for a linear frequency response up to 5,000 Hz
  • Low mounting depth for easy installation in stage monitors and car audio systems
  • Reinforced cast aluminum frame for reliable durability in various environments
  • High sensitivity of 97 dB at 1W/1m for clear, efficient sound
  • Versatile design suitable for professional audio and custom car audio projects
Your Price: $199.91
+ FREE SHIPPING
MSRP: $249.89
Save $49.98 (20%)
Bulk Pricing
Ships next business day. Details

6In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12MR2000 12" Pro Audio Midrange Woofer 8 Ohm

PRV Audio 12MR2000 12" Midrange Loudspeaker

    The PRV Audio 12MR2000 midbass woofer is built for exceptional durability and stands as the most powerful midrange driver in our lineup. Ideal for high-power 2 or 3-way systems, it delivers outstanding vocal clarity, making it perfect for stage monitors.

The 12MR2000 features a large 4” CCAW voice coil, delivering exceptional efficiency along with smooth and precise bass response. Its thick, stiff, yet lightweight cone ensures a linear frequency response up to 5,000 Hz, making it an excellent choice for high-quality two or three way systems. With its low mounting depth, it’s ideal for stage monitors and has also gained popularity as a go-to woofer for extreme car audio installations.

The 12MR2000’s magnet assembly is securely mounted to a reinforced cast aluminum frame, providing a robust support structure for reliable, long-lasting performance in almost any environment.

Specifications

  • Nominal Diameter: 12″ (305 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling*: 1000 Watts
  • Continuous Program Power (RMS)**: 2000 Watts
  • Max Peak Power***: 4000 Watts
  • Sensitivity: 2.83V at 1m 97 dB
  • Recommended Hi Pass Crossover For Full Power Handling: 145 Hz12db Per Octave Crossover
  • Frequency Response: 72 – 5,000 Hz
  • Voice Coil Diameter: 4″ (101 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 17.0 mm
  • Former Material: Aluminum
  • Magnetic Gap Depth: 7.5 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 12.32” (313 mm)
  • Front Mount Baffle Cutout: 11.12” (282.5 mm)
  • Mounting Depth: 5.47” (139 mm)
  • Overall Depth: 5.91” (150 mm)
  • Net Weight: 23.04 lbs. (10.45 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
Model12MR2000
Part Number294-2733
UPC799928734318
Unit of MeasureEach
Weight24.5

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response52 to 5,500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)57.23Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.83mH
Mechanical Q (Qms)23.84
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)1.85ft³
Mechanical Compliance of Suspension (Cms)0.114mm/N
BL Product (BL)21.25T·m
Diaphragm Mass Inc. Airload (Mms)67.39g
Maximum Linear Excursion (Xmax)6.62mm
Surface Area of Cone (Sd)573cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.28"
Baffle Cutout Diameter11.42"
Depth5.91"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F3141Hz
Vented Volume1.75ft³
Vented F359.7Hz
