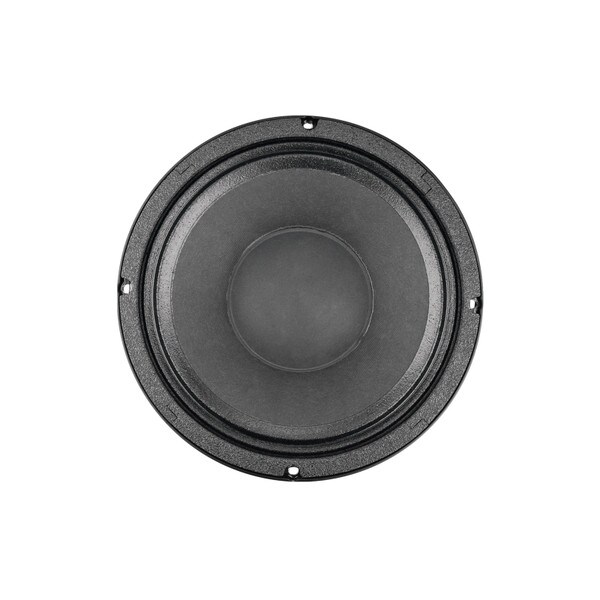

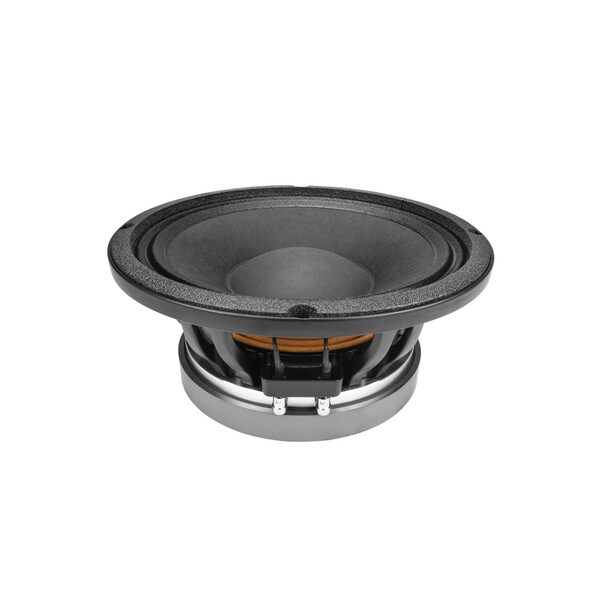

  • PRV Audio 10MR800 PRO Pro Series 10" Midrange Speaker 8 Ohm

CLEARANCE PRV Audio 10MR800 PRO Pro Series 10" Midrange Speaker 8 Ohm

PRV AudioPart # 294-3544
Model: 10MR800 PRO

PRV's Pro Series of midrange speakers is ideal for pro audio reinforcement, live sound, high-output home audio systems, and high SPL car audio applications. The 10MR800 PRO is a 10" midrange loudspeaker engineered for high-output performance in sealed, horn loaded and vented enclosures.

Key Features

  • 3" CCAW voice coil on fiberglass former allows high power handling
  • Die-cast aluminum frame adds structural integrity and reduces resonance
  • Optimized for small sealed, horn-loaded, and vented enclosures
  • Frequency response of 100–6,500 Hz covers critical midrange frequencies
  • Under-spider and rear venting enhance cooling for extended performance​
CLEARANCE $139.91
+ FREE SHIPPING
MSRP: $174.89
Save $34.98 (20%)
Bulk Pricing
3 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 10MR800 PRO Pro Series 10" Midrange Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 10MR800 PRO Pro Series 10" Midrange Speaker 8 Ohm

PRV Audio 10MR800 PRO Pro Series 10" Midrange Speaker 8 Ohm

The 10MR800 PRO is a high-power, high-output midrange from our PRO Series, built to perform in compact sealed, horn-loaded, and vented enclosures. It’s an excellent fit for various applications, including professional sound reinforcement, live audio, high-output home speaker systems, and high SPL car audio setups.


  • Delivers excellent results in 3-way systems, reproducing detailed percussion tones with high 98.5 dB sensitivity.
  • A premium paper cone and cloth surround provide clear, smooth response and controlled excursion at 800 Watts RMS program power.
  • The 3” inside/outside wound CCAW voice coil on a fiberglass former supports strong power handling. Cooling is enhanced through under-spider and rear venting, keeping the voice coil running cool during extended play.
  • Low Qts offers high damping and great performance in compact enclosures.

This professional midrange loudspeaker produces smooth, clear vocals that stand out to any listener. Its high efficiency comes from a specially lightweight cone, designed to deliver both refined midbass tones and detailed vocal reproduction.

The cast aluminum frame provides strong structural support, while the paper/glass fiber cone paired with a large 3″ voice coil maintains control at high output levels, allowing for a smooth handoff to a high frequency driver.


General Specifications

  • Nominal Diameter: 10″ (254 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling: 400 Watts
  • Continuous Program Power (RMS): 800 Watts
  • Max Peak Power: 1600 Watts
  • Sensitivity 2.83V at 1m: 98.5 dB
  • Recommended Hi Pass Crossover: 145 Hz
    ** **For Full Power Handling **12db Per Octave Crossover
  • Frequency Response at -10DB:   100 – 6,500 Hz
  • Voice Coil Diameter: 3″ (75 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 1.0 mm
  • Former Material: Glass Fiber
  • Magnetic Gap Depth: 10.0 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 10.27″ (261 mm)
  • Front Mount Baffle Cutout: 9.09″ (231 mm)
  • Mounting Depth: 4.60″ (116.7 mm)
  • Overall Depth: 5.10″ (129.5 mm)
  • Net Weight: 15.65 lbs (7.10 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.







Explore the PRV PRO Series

8MR500SEAL PRO 8" Sealed Basket Midrange Speaker 8 Ohm

8MR500SEAL PRO 8" Sealed Basket Midrange Speaker 8 Ohm

10MR800 PRO 10" Midrange Speaker 8 Ohm

10MR1000 PRO 10" Midrange Speaker 8 Ohm

12MR1000 PRO 12" Midrange Speaker 8 Ohm

Product Details

BrandPRV Audio
Model10MR800 PRO
Part Number294-3544
UPC810075524574
Unit of MeasureEach
Weight16.9

Product Specifications

Nominal Diameter10"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance
Frequency Response100 to 6,500Hz
Sensitivity98.5dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)96.4Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.56mH
Mechanical Q (Qms)11.3
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)0.462ft³
Mechanical Compliance of Suspension (Cms)0.078mm/N
BL Product (BL)15.08T·m
Diaphragm Mass Inc. Airload (Mms)34.9g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)346cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.27"
Baffle Cutout Diameter9.09"
Depth4.6"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.22ft³
Sealed F3165.1Hz
Vented Volume0.708ft³
Vented F379.09Hz
