PRV Audio 10MR650A Alto Series 10" Midrange Driver 8 Ohm

PRV AudioPart # 294-3168
Model: 10MR650A

The PRV Audio 10MR650A from the ALTO Series is a 10" midrange loudspeaker engineered for high-output applications requiring natural, smooth sound reproduction. It delivers robust performance suitable for multiple types of audio systems, including professional sound reinforcement and car audio systems.

Key Features

  • 2.5" CCAW voice coil on polyimide former allows high power handling
  • Vented pole piece dissipates heat to minimize power compression
  • Frequency response of 80–6,500 Hz covers critical midrange frequencies
  • Shallow 3.90" mounting depth facilitates installation in tight spaces
  • Stamped steel frame provides structural integrity and reduces resonance​
Similar items that may interest you:
PRV Audio 10W650A Alto Series 10" Woofer 8 Ohm
Price: $77.91Part # 294-2725
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $85.91
MSRP: $107.39
Save $21.48 (20%)
Bulk Pricing
10 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 10MR650A Alto Series 10" Midrange Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 10MR650A Alto Series 10" Midrange Driver 8 Ohm

PRV Audio 10MR650A Alto Series 10" Midrange Driver 8 Ohm

PRV Audio’s Alto Series is carefully engineered and voiced to deliver natural, smooth sound while staying dynamic. To achieve superior fidelity, a specially designed composite cone smooths frequency response and reduces moving mass, boosting overall efficiency. Introducing the updated version of the 10W650A—now improved as the 10MR650A.

  • New basket design decreases mounting depth from 4.33″ to 3.90″
  • +1dB gain in low frequency output response
  • Improved vocal performance between 350 Hz and 4000 Hz
  • Extended voice coil winding enhances power handling and increases Xmax to 5.72 mm
  • Specifically developed to boost vocal output where the 10W650A lacked, without compromising midbass

All these upgrades make the 10MR650A capable of delivering high output with low distortion—an ideal choice for reproducing essential midrange frequencies in high-output sound systems. A standout addition to the Alto Series!

  • 650 Watts program RMS power delivers strong acoustical output
  • 4 Ohm impedance makes this a great option for car audio
  • Handles extreme output levels with 97 dB sensitivity
  • Voice Coil Diameter: 2.5″

The new 10MR650A from the ALTO Series offers everything you need in a midrange pro audio loudspeaker, featuring a compact and versatile design with just 3.90” of mounting depth without compromising performance.

This midrange performs well as a door speaker in car audio systems or as a low frequency driver in a two-way satellite speaker setup.

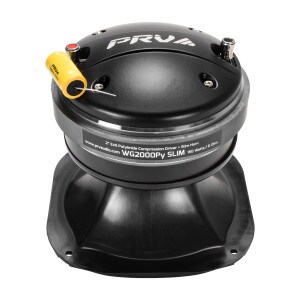

A popular combination with the 10MR650A in large systems is the WG2000Py SLIM Mids and Highs compression horn driver—using one horn driver for every two speakers, all tuned via our digital sound processor for seamless integration with the following settings:

10MR650A – High Pass Filter HPF 120 Hz at BT18 Filter to Low Pass Filter LPF 2200 Hz at BT12, following the compression driver from 1000Hz all way to 17,000Hz

Recommended system package 8x 10MR650A + 4x WG2000Py SLIM

General Specifications

  • Nominal Diameter: 10″ (254 mm)
  • Nominal impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 325 Watts
  • Program Power: 650 Watts
  • Max Peak Power: 1300 Watts
  • Sensitivity 2.83V at 1m: 97.5 dB
  • Recommended Hi Pass Crossover:** 140 Hz**
  • **For Full Power Handling  **12db Per Octave Crossover
  • Frequency Response at -10dB: 80 – 6,500 Hz
  • Voice Coil Diameter: 2.5″ (65.5 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 16.2 mm
  • Former Material: Polymide
  • Magnetic Gap Depth: 9.5 mm
  • Frame Material: Stamped Steel
  • Overall Diameter: 10.10” (256.5 mm)
  • Front Mount Baffle Cutout:  9.20” (233.5 mm)
  • Mounting Depth: 3.90”(99 mm)
  • Overall Depth: 4.23”(107.5 mm)
  • Net Weight: 10.4 Lbs (4.7 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Explore the PRV Alto Series

6MR200A 6.5" Midrange Driver 8 Ohm

6MR200A-4 6.5" Midrange Driver 4 Ohm

8MR450A 8" Midrange Driver 8 Ohm

10W650A 10" Woofer 8 Ohm

10W650A-4 10" Woofer 4 Ohm

10MR650A 10" Midrange Driver 8 Ohm

10MR650A-4 10" Midrange Driver 4 Ohm

12W750A 12" Woofer 8 Ohm

12W800A 12" Woofer 8 Ohm

Product Details

BrandPRV Audio
Model10MR650A
Part Number294-3168
UPC619620088314
Unit of MeasureEach
Weight12.55

Product Specifications

Nominal Diameter10"
Power Handling (RMS)355 Watts
Power Handling (MAX)650 Watts
Impedance8Ω
Frequency Response80 to 6,500Hz
Sensitivity97.3dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)64.7Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.44mH
Mechanical Q (Qms)14.19
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)1.48ft³
Mechanical Compliance of Suspension (Cms)0.19mm/N
BL Product (BL)12.29T·m
Diaphragm Mass Inc. Airload (Mms)31.86g
Maximum Linear Excursion (Xmax)5.72mm
Surface Area of Cone (Sd)394.2cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.1"
Baffle Cutout Diameter9.2"
Depth4.23"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F3111.7Hz
Vented Volume1.25ft³
Vented F366.8Hz
