  • Neutrik NLT8MP speakON STX 8 Pole Male Chassis Connector Nickel Housing

Neutrik NLT8MP speakON STX 8 Pole Male Chassis Connector Nickel Housing

NeutrikPart # 092-346
Model: NLT8MPXX

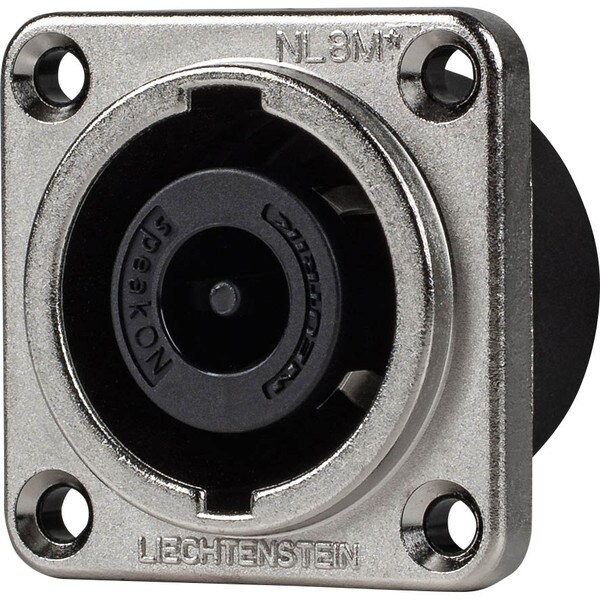

Neutrik's NLT8MP is an 8 pole male speakON chassis connector, with Nickel housing, and 1/4" flat tabs for quick disconnects or solder.

Key Features

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Robust and durable all metal housing
  • Reinforced metal quick lock system for ease and precise locking
  • Mate with all available speakON products
Your Price: $18.36
MSRP: $23.99
Save $5.63 (23%)
Bulk Pricing
Quantity:Qty: 1-99 $18.36/ea
Quantity:Qty: 100-249 $17.38/ea
Quantity:Qty: 250+ $16.71/ea
139 In Stock
Get Notified When Available

We'll send you an email when Neutrik NLT8MP speakON STX 8 Pole Male Chassis Connector Nickel Housing is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NLT8MP speakON STX 8 Pole Male Chassis Connector Nickel Housing

The new STX Series is the next generation of 8 pole speakON connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound. The extremely rugged and durable STX Series feature an all metal housing and metal reinforced latch lock system.



Product
Connector TypespeakON
GenderMale
Electrical
Contact resistance<2 mΩ (after lifetime)
Dielectric strength3 kVdc (peak)
Insulation resistance>10 GΩ (after dampheat)
Rated current per contact40A RMS continuous
Rated current per contact50A audiosignal, duty cycle 50%
Rated voltage250V (Insulation)
AttentionspeakON is NOT to be used as an AC mains connector!
Mechanical
Lifetime>5,000 mating cycles

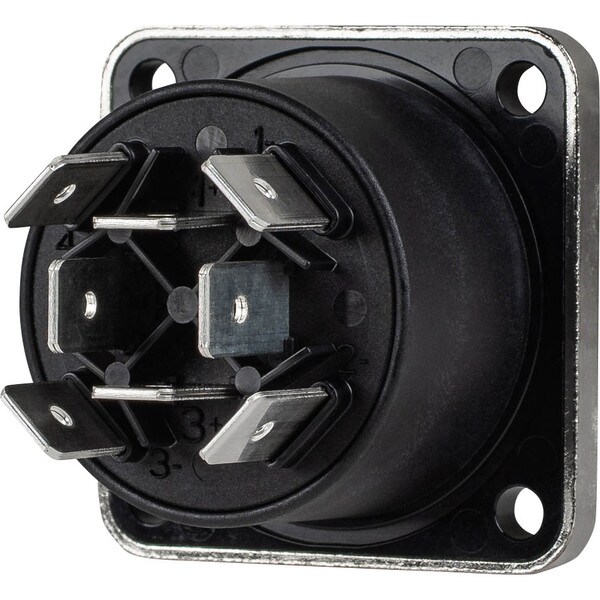

WiringFlat tabs for 1/4" (FASTON 6.3 x 0.8 mm) or soldering
Locking deviceQuick lock
Mounting directionFront and rear
Chassis shapeSquare G-size flange
LayoutFour thru holes
Material
Contact plating4 µm Ag
ContactsSpring copper (CuSn0.2)
InsertPolyamide (PA 6 30% GR)
ShellZinc diecast (ZnAl4Cu1) Ni
Environmental
FlammabilityUL 94 HB
Protection classIP 52 (mated condition)
SolderabilityComplies with IEC 68-2-20
Temperature range-30°C to +80°C

Product Details

BrandNeutrik
ModelNLT8MPXX
Part Number092-346
UPC844632095795
Unit of MeasureEach
Weight0.12

Product Specifications

Circuit8-Pole
GenderMale
Mounting TypeChassis / Panel Mount
