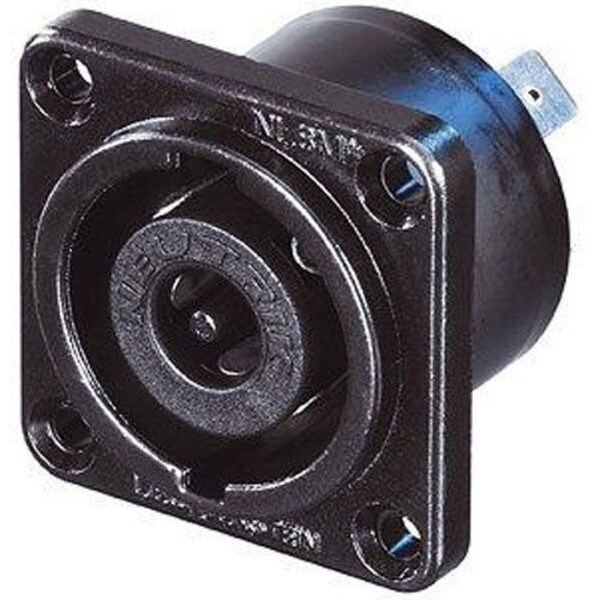

Neutrik NLT8MPXX-BAG speakON STX 8 Pole Male Chassis Connector Black-Chrome Metal Housing
$19.07
Ships next business day. Details
Free Shipping available on orders over in the US. Details
60 Day No Hassle Return PolicyOverview
The new STX Series is the next generation of 8 pole speakON connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound. The extremely rugged and durable STX Series feature an all metal housing and metal reinforced latch lock system.
| Product | |
| Connector Type | speakON |
| Gender | Male |
| Electrical | |
| Contact resistance | <2 mΩ (after lifetime) |
| Dielectric strength | 3 kVdc (peak) |
| Insulation resistance | >10 GΩ (after dampheat) |
| Rated current per contact | 40A RMS continuous |
| Rated current per contact | 50A audiosignal, duty cycle 50% |
| Rated voltage | 250V (Insulation) |
| Attention | speakON is NOT to be used as an AC mains connector! |
| Mechanical | |
| Lifetime | >5,000 mating cycles |
| Wiring | Flat tabs for 1/4" (FASTON 6.3 x 0.8 mm) or soldering |
| Locking device | Quick lock |
| Mounting direction | Front and rear |
| Chassis shape | Square G-size flange |
| Layout | Four thru holes |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Spring copper (CuSn0.2) |
| Insert | Polyamide (PA 6 30% GR) |
| Shell | Zinc diecast (ZnAl4Cu1) black chrome |
| Environmental | |
| Flammability | UL 94 HB |
| Protection class | IP 52 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30°C to +80°C |
