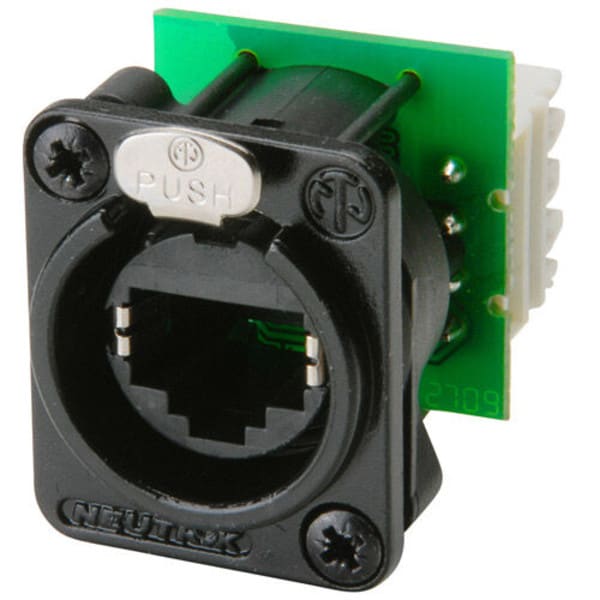

Neutrik NE8FDV-Y110-B etherCON D Series Panel Mount Connector IDC 110 Black
Panel mount receptacle with IDC 110 punch down terminals, black D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included.
etherCON ruggedized RJ45 connectors provide solutions for data transfer in harsh demanding environments by offering a cable carrier and receptacle that helps to protect the contacts of the RJ45 connections.
Key Features
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
- Selectable ground - panel connection

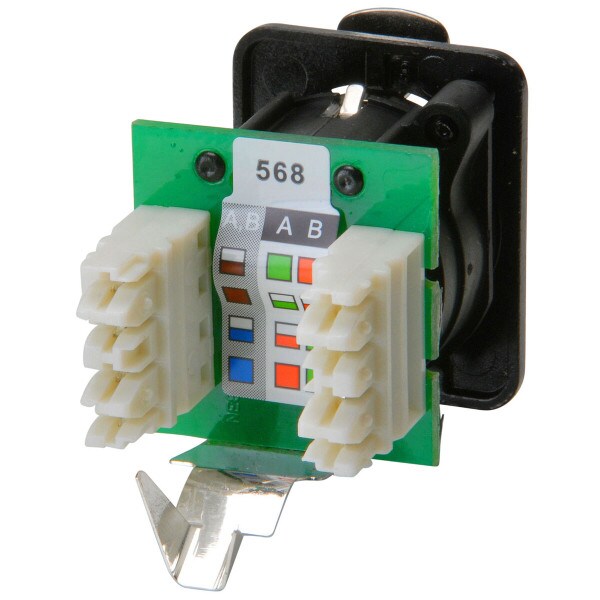

- Easy and quick mounting using 110 type punch down terminals
- Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables
Similar items that may interest you:
Neutrik NE8FDP-B etherCON D Series Panel Mount Connector Feedthrough BlackPrice: $13.58Part # 092-189
Neutrik NE8FDX-P6-B etherCON CAT6A Series etherCON Shielded Feedthrough CAT6A Connector BlackPrice: $21.16Part # 092-1819
Your Price: $10.79
MSRP: $11.48
Bulk Pricing
42 In Stock
Get Notified When Available
We'll send you an email when Neutrik NE8FDV-Y110-B etherCON D Series Panel Mount Connector IDC 110 Black is back in stock or available for preorder.
Order in the next 4 hr 44 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy
Neutrik NE8FDV-Y110-B Data Sheet
Neutrik NE8FDV-Y110-B Assembly Instructions
