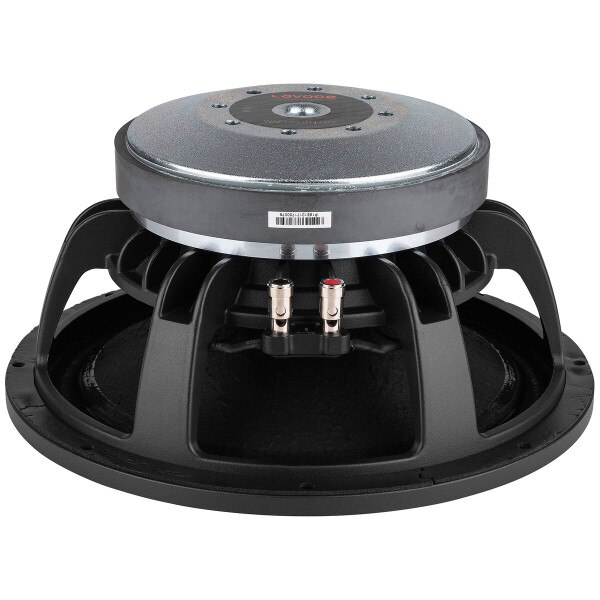

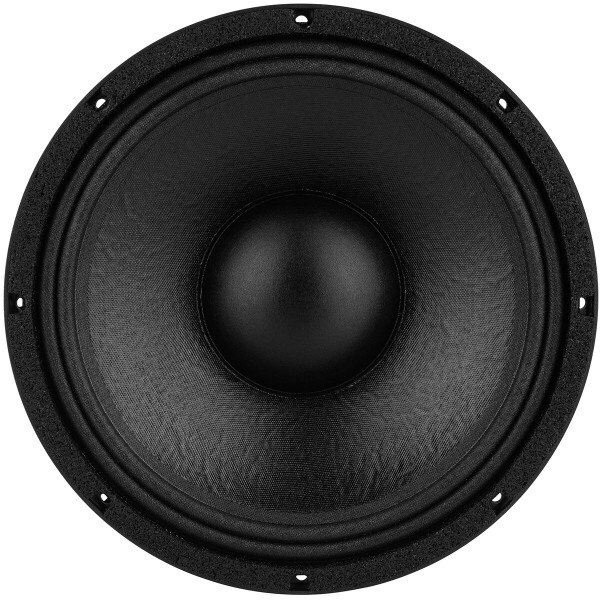

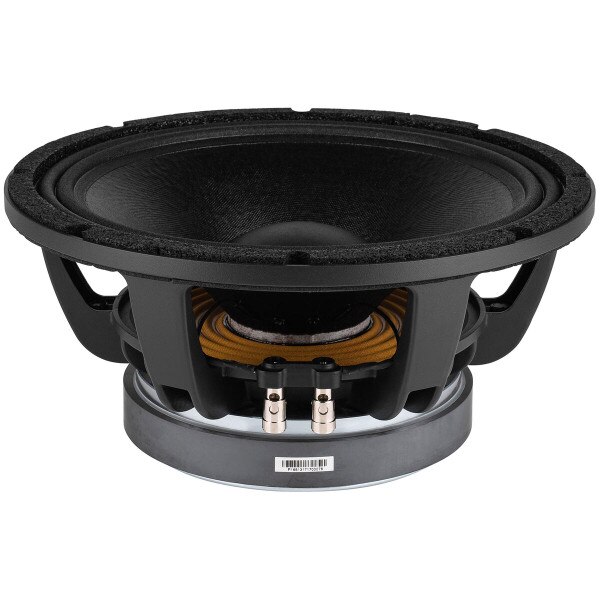

LaVoce WAF123.01 12" Ferrite Woofer 8 Ohm

LavocePart # 293-718
Model: WAF123.01
The LaVoce WAF123.01 is an impressive 12" woofer that features an impressive aluminum basket which provides exceptional cooling. The excellent 99 dB sensitivity is perfect for mating to other efficient drivers.

Key Features

  • FEM optimized Ferrite motor and suspensions
  • Optimized cooling system for reliable performance
  • Impressive 99 dB sensitivity
  • Resonance-free, heavy-duty aluminum basket demonstrates excellent build quality
Your Price: $199.00
+ FREE SHIPPING
MSRP: $297.00
Save $98.00 (33%)
Bulk Pricing
Only 2 In Stock
Get Notified When Available

We'll send you an email when LaVoce WAF123.01 12" Ferrite Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce WAF123.01 12" Ferrite Woofer 8 Ohm

The LaVoce WAF123.01 is an impressive 12" woofer that features an impressive aluminum basket which provides exceptional cooling. The excellent 99 dB sensitivity is perfect for mating to other efficient drivers. The gasket on this driver allows it to be rear mounted easily, providing additional installation flexibility. To add to the versatility of this driver, the cone has been treated to be waterproof, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelWAF123.01
Part Number293-718
UPC848864057408
Unit of MeasureEach
Weight22.45

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance
Frequency Response65 to 3,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)4.8Ω
Voice Coil Inductance (Le)0.74mH
Mechanical Q (Qms)6.3
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)1.48ft³
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)17T·m
Diaphragm Mass Inc. Airload (Mms)63g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)531cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.40"
Baffle Cutout Diameter11.28"
Depth6.14"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.79ft³
Sealed F393.7Hz
Vented Volume1.5ft³
Vented F364Hz
