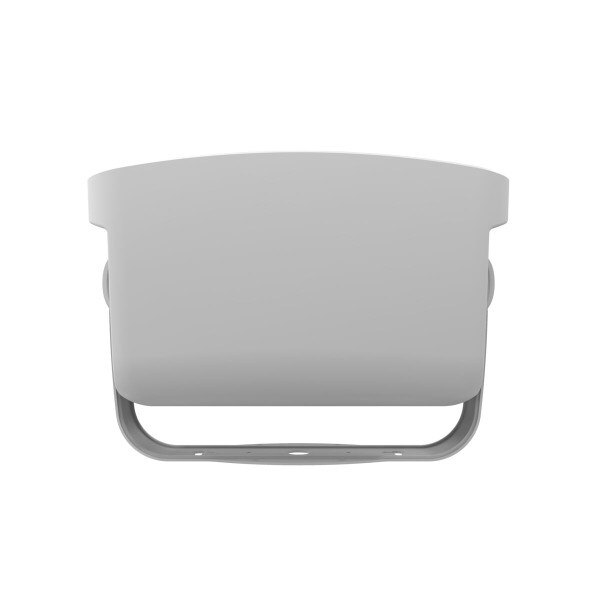

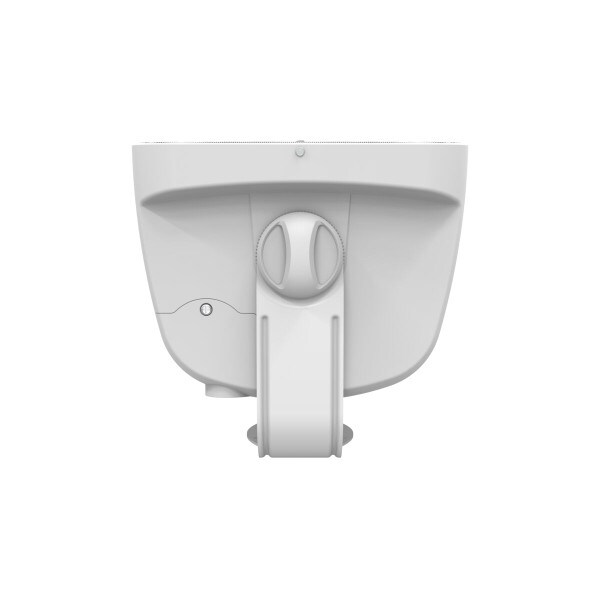

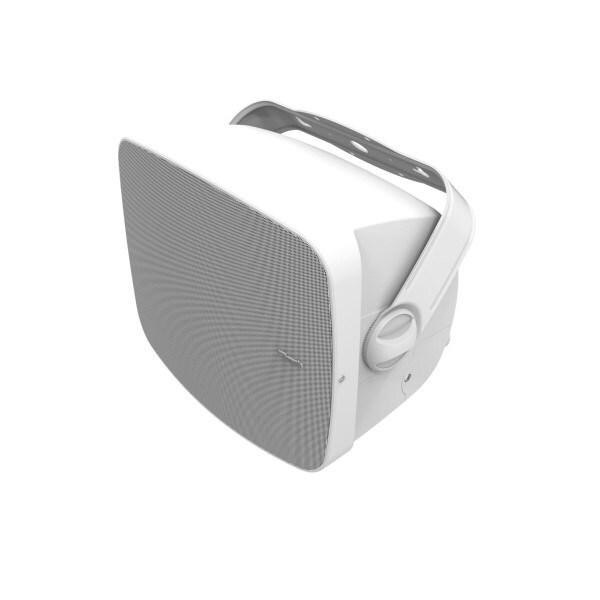

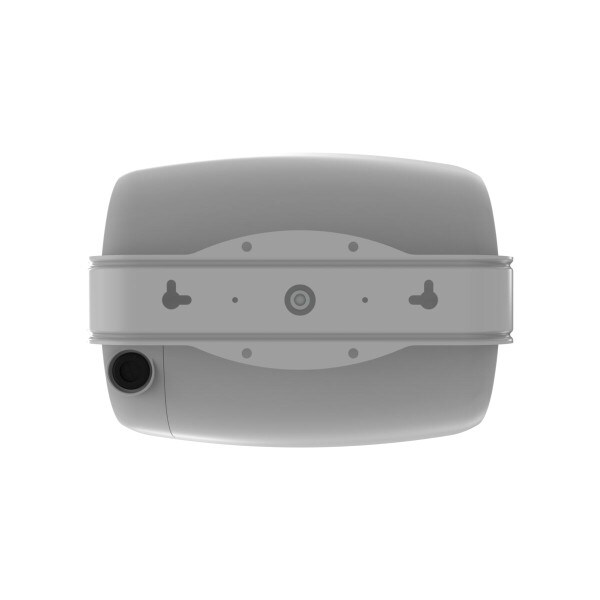

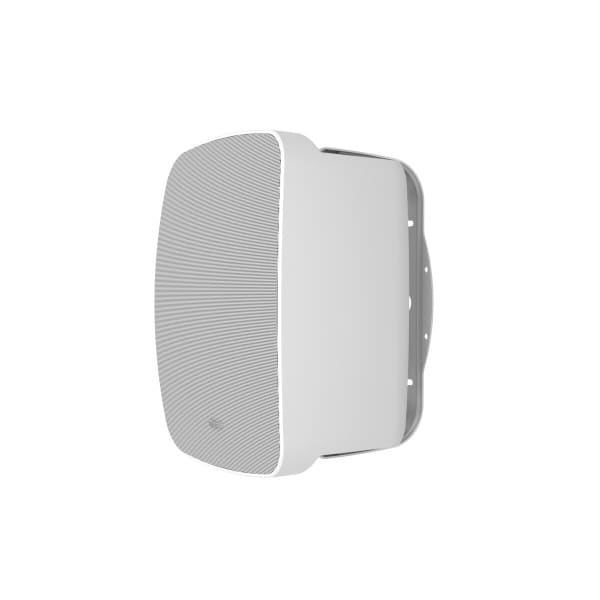

NEW Klipsch PSM-650-T Full-Range 6.5" Indoor/Outdoor Professional Surface Mount Speaker White

KlipschPart # 247-2063
Model: PSM-650-T White

The Klipsch PSM-650-T is a professional 6.5" surface-mount speaker designed for both indoor and outdoor use. Its rugged construction, IPX6 rating, and patented design make it ideal for commercial and distributed audio systems.

Key Features

  • Patent-pending Tractrix® Hyperfold Port provides “more bass, less space” for a compact but powerful performance
  • 1" titanium compression driver provides clear, wide dispersion of high frequencies
  • IPX6 rating protects against water and dust for reliable outdoor performance
  • Multi-tap transformer allows for 70/100 V distributed systems with an 8Ω bypass for flexibility
  • Set screws on the grille maintain secure placement
  • Phoenix connector simplifies wire connections for installer convenience
  • Paintable, rust-proof aluminum grille blends seamlessly into any décor
Similar items that may interest you:
Polk Audio Atrium 6 Outdoor Loudspeaker Pair
Price: $449.00Part # 243-623
Dayton Audio IO65XTB 6-1/2" IP66 Indoor/Outdoor 2-Way Speaker Pair with Radiator Black
Price: $279.98Part # 310-025
See all items in Outdoor Speakers
NEW $349.99
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Klipsch PSM-650-T Full-Range 6.5" Indoor/Outdoor Professional Surface Mount Speaker White is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Klipsch PSM-650-T Full-Range 6.5" Indoor/Outdoor Professional Surface Mount Speaker White

Professional Surface Mount Speakers

The updated Professional Surface Mount speaker line now features the newly developed Tractrix Hyperfold Port. This design innovation allows for stronger bass output while also broadening dispersion, all from a more compact enclosure. The result is a system that delivers greater low-frequency performance and wider sound coverage without requiring a larger cabinet.

IPX6 Waterproof Protection

Ready for use in commercial environments both indoor and outdoor.

All-New Tractrix Hyperfold Port

We’re introducing the all-new patented Tractrix Hyperfold Port, designed with a proprietary five-step folded structure to extend port length for maximum bass power. The increased airflow eliminates chuffing and port noise while also providing a broader dispersion pattern for greater coverage.

Paintable UV-Resistant ABS Enclosure

These professional surface mount speakers are designed for flexibility, featuring rustproof grilles that can be painted to match any project color.

Multiple Tap Settings & Phoenix Connector

These speakers come equipped with a multi-tap transformer for use in 70 or 100 volt systems. For installations that don’t need a transformer, a bypass position allows standard 8 ohm operation. The PSM Series also features a phoenix connector for fast, straightforward wiring.

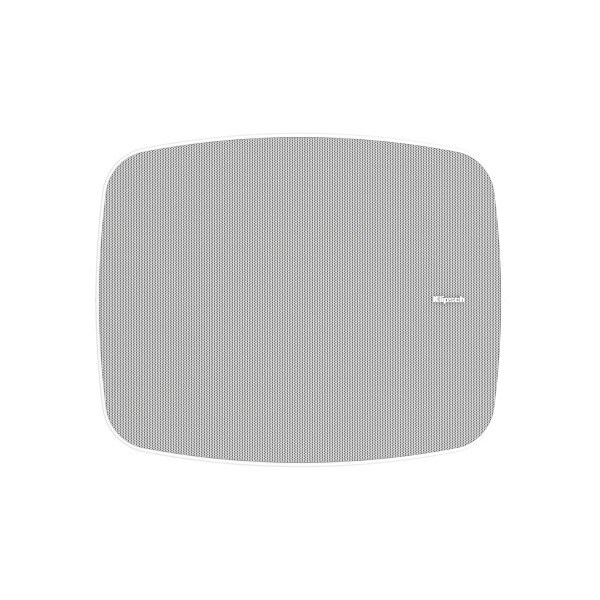

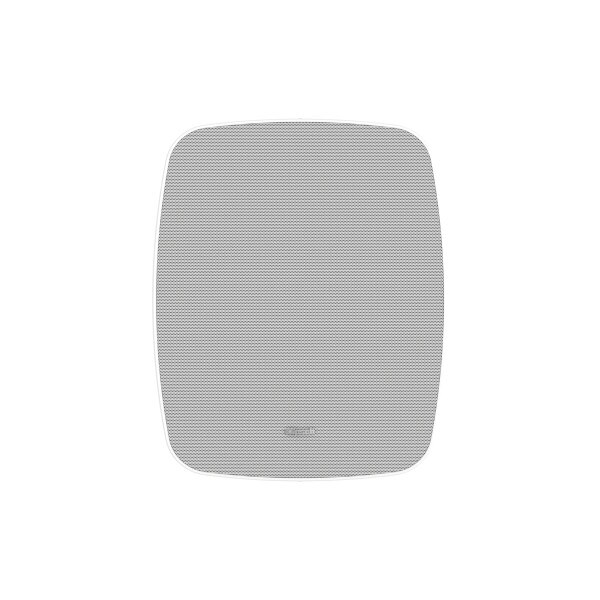

Set Screws on Grille

The included set screws on each grille provide a firm connection between the speaker and grille, keeping them securely attached. This design prevents the grilles from coming loose, even in challenging or demanding environments.

1" Titanium Compression Driver

Klipsch stands apart with its 1" titanium-loaded floating driver bridge featuring a wide dispersion phase plug. Combined with patented Mumps technology, these professional surface mount speakers deliver broad, even coverage and consistent acoustic energy across any space.

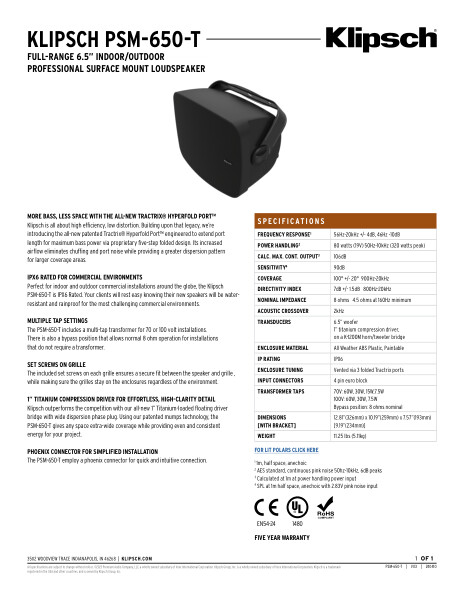

Specifications


PSM-450-T
PSM-525-T
PSM-650-T
PSM-800-T
Frequency Response
60Hz-20kHz +/- 4dB, 50Hz -10dB
58Hz-20kHz +/- 4dB, 48Hz -10dB
56Hz-20kHz +/- 4dB, 46Hz -10dB
52Hz-20kHz +/- 4dB, 44Hz -10dB
Power Handling50 watts (14.6V) 58Hz-10kHz (200 watts peak)
65 watts (16.7V) 55Hz-10kHz (260 watts peak)
80 watts (19V) 50Hz-10kHz
(320 watts peak)
100 watts (21V) 50Hz-10kHz (400 watts peak)
Calc. Max. Cont. Output102dB104dB106dB
109dB
Sensitivity88dB89dB90dB
92dB
Coverage90° +/- 40° 1kHz-20kHz
100° +/- 20° 1kHz-20kHz
100° +/- 20° 900Hz-20kHz
100° +/- 20° 1kHz-20kHz
Directivity Index7dB +/- 3dB 800Hz-20kHz
7dB +/- 1.5dB 1kHz-20kHz
7dB +/- 1.5dB 800Hz-20kHz
7dB +/- 1.5dB 800Hz-20kHz
Nominal Impedance8 ohms 4.3 ohms at 185Hz minimum
8 ohms 4.3 ohms at 175Hz minimum
8 ohms 4.5 ohms at 160Hz minimum
8 ohms 4.2 ohms at 150Hz minimum
Acoustic Crossover2kHz2kHz
2kHz
2kHz
Transducers4.5” woofer
1” titanium compression driver, on a K-1500M horn/tweeter bridge
5.25” woofer
1” titanium compression driver, on a K-1200M horn/tweeter bridge
6.5” woofer
1” titanium compression driver, on a K-1200M horn/tweeter bridge
8” woofer
1” titanium compression driver, on a K-1200M horn/tweeter bridge
Enclosure MaterialAll Weather ABS Plastic, Paintable
All Weather ABS Plastic, Paintable
All Weather ABS Plastic, Paintable
All Weather ABS Plastic, Paintable
IP RatingIPX6
IPX6
IPX6
IPX6
Enclosure TuningVented via 3 folded Tractrix ports
Vented via 3 folded Tractrix ports
Vented via 3 folded Tractrix ports
Vented via 3 folded Tractrix ports
Input Connectors4 pin euro block
4 pin euro block
4 pin euro block
4 pin euro block
Transformer Taps70V: 15W, 7.5W, 3.8W, 1.9W
100V: 15W, 7.5W, 3.8W
Bypass position: 8 ohms nominal
70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 7.5W, 3.8W
Bypass position: 8 ohms nominal
70V: 60W, 30W, 15W,7.5W
100V: 60W, 30W, 7.5W
Bypass position: 8 ohms nominal
70V: 100W, 50W, 25W,12.5W
100V: 100W, 50W, 25W
Bypass position: 8 ohms nominal
Dimensions [with Bracket]12.13” (309 mm) x 9.5” (242 mm) x 6.5” (166 mm) [8.38” (213 mm)]
12.13” (309 mm) x 9.5” (242 mm) x 6.5” (166 mm) [8.38” (213 mm)]
12.81” (326 mm) x 10.19” (259 mm) x 7.57” (193 mm) [9.19” (234 mm)]
15.5” (394 mm) x 12” (305 mm) x 9.31” (237 mm) [11.12” (283 mm)]
Weight7.25 lbs. (3.29kg)
7.75 lbs. (3.52kg)
11.25 lbs. (5.11kg)
15.75 lbs. (7.15kg)
