  • Jantzen Audio 0.47mH 16 AWG Copper Foil Inductor Crossover Coil

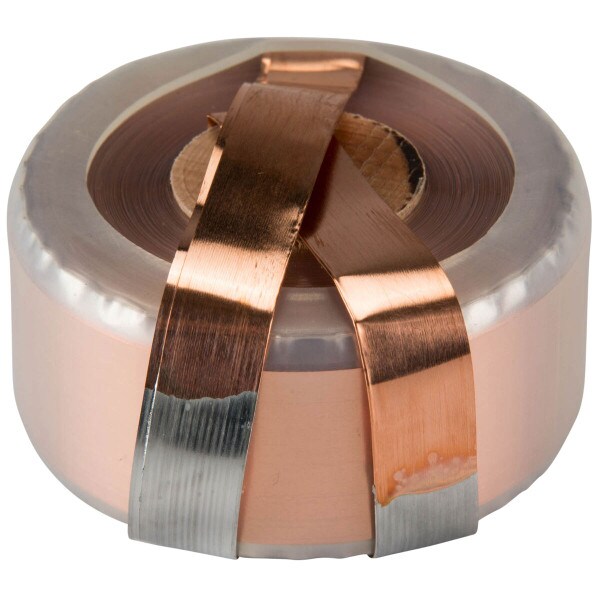

Jantzen Audio 0.47mH 16 AWG Copper Foil Inductor Crossover Coil

Jantzen AudioPart # 255-618
Model: 000-7715
5 Questions, 9 Answers or
The Jantzen Audio Cross-Coils are premium-quality, audiophile-grade copper foil inductors. They feature 99.99% pure copper foil windings separated by an extremely thin layer of polypropylene film and tightly wrapped around a hardwood core.
Your Price: $32.00
MSRP: $41.99
Save $9.99 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $32.00/ea
Quantity:Qty: 10+ $29.33/ea
Out of Stock
Get Notified When Available

We'll send you an email when Jantzen Audio 0.47mH 16 AWG Copper Foil Inductor Crossover Coil is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 0.47mH 16 AWG Copper Foil Inductor Crossover Coil

The Jantzen Audio Cross-Coils are premium-quality, audiophile-grade copper foil inductors. They feature 99.99% pure copper foil windings separated by an extremely thin layer of polypropylene film and tightly wrapped around a hardwood core, resulting in very low magnetoshrinkage factor and virtually zero FM distortion. The foil approach outperforms conventional round-wire inductors by providing over 12 times the surface area through which high-frequency electrons can travel, minimizing skin-effect problems and providing consistently low power-distortion figures. Very close to the "ideal inductor" in all respects, every coil goes through a specially developed Jantzen Audio anti-oxidizing treatment and measurement procedure prior to packaging. Jantzen Audio p/n 000-7715.

Specifications: • Tolerance: ± 3.0% • Inductance: 0.47 mH • Wire gauge: 16 AWG • DC resistance: 0.22 Ohms • Dimensions: 2.13" x 1.00" • Power handling: 350 watts RMS for 16 gauge, 500 watts RMS for 14 gauge and 650 watts RMS for 12 gauge.

Product Details

BrandJantzen Audio
Model000-7715
Part Number255-618
UPC844632023309
Unit of MeasureEach
Weight0.5

Product Specifications

DCR0.22Ω
Inductance0.47mH
Inductor TypeCopper Foil
Wire Gauge16
