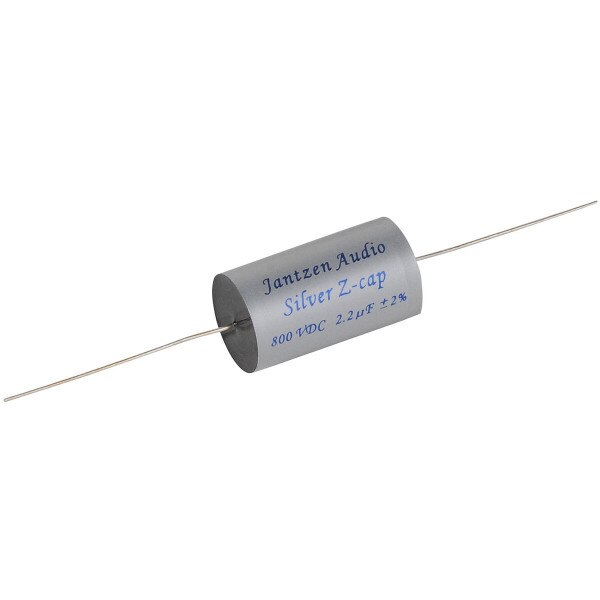

Jantzen Audio 2.2uF 800V Silver Z-Cap Crossover Capacitor

Jantzen AudioPart # 027-772
Model: 001-0646
Jantzen Audio Silver capacitors are possibly the most detailed caps on the market. These caps are constructed of a specially wound metallized polypropylene, high purity silver leads for the absolute best signal transfer, resin-sealed end caps to protect against humidity, and flame-retardant tape wrap. Truly, an outstanding audio component!

Key Features

  • Dimensions: 26mm x 45mm
  • Silver provides a high and tight quality and unparalleled connectivity
  • Rated Voltage: 800 VDC / 630 VAC
  • Pure silver lead wires
  • A tolerance of ±2% (on nominal value)
Your Price: $31.38
MSRP: $47.99
Save $16.61 (35%)
Bulk Pricing
Quantity:Qty: 1-9 $31.38/ea
Quantity:Qty: 10+ $28.24/ea
5 In Stock
Get Notified When Available

We'll send you an email when Jantzen Audio 2.2uF 800V Silver Z-Cap Crossover Capacitor is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 2.2uF 800V Silver Z-Cap Crossover Capacitor

Product Features

  • Dimensions: (Ø 26mm - L: 45mm)
  • Where the Superior Z-Cap is made with pure copper lead-wires, the Silver Z-Cap is made with pure silver lead-wires, changing the sound characteristics of the capacitor slightly.
  • Highly recommended for tweeters and mid-range application for high-end passive speakers and as coupling capacitors in tube and power amplifiers.
  • The Silver Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super MPK Capacitor”.
  • Super MKP capacitors are made with a double lane of metalized polypropylene foil, hence a double foil construction.

  • By using special winding machines and winding techniques, two capacitors are connected in series within one capacitor housing,
  • When making this type of capacitor you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.
  • Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.
  • An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.
  • Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.

Technical Data

  • Type: Non-polarized super MKP (double foil lanes)
  • Dielectric: Polypropylene film
  • Construction: Double-layer round tubular type axial leads
  • Winding: Bifilar extended metalized foil
  • Test Voltage: 150% rated voltage
  • Electrodes: Aluminum metallized vacuum deposited
  • Contacts: Non-inductive zinc thermally sprayed extended film
  • Coating: Silver plastic tape wrapped black resin, sealed in an anodized aluminum tube
  • Leads: Pure silver
  • Voltage rating: 1200 VDC / 800 VAC from 0.1 μF to 0.39μF
    800 VDC / 630 VAC from 0.47 μF to 22μF

  • Capacitance tolerance: ±2% (on nominal value)
  • Dielectric constant: Non-polar dielectric
  • Dissipation factor: Extremely low 4 / 6
  • Dielectric absorption factor: ＜0.5% @20℃
  • Dielectric thickness: PB=6µm
  • Equivalent series resistance: Extremely low
  • Self-inductance: 0 nH
  • Insulation resistance: ＞100.000 MΩ@20℃
  • Temperature coefficient: -200℃x10-6/℃
  • Temperature Range: -55℃to +85℃
  • Metal layer thickness: PB=0.4µm
  • Metal layer conductivity: PB =2.5 Ω/cm2

Product Details

BrandJantzen Audio
Model001-0646
Part Number027-772
UPC844632062193
Unit of MeasureEach
Weight0.04

Product Specifications

Capacitance2.2 uF
Tolerance2%
Voltage Rating800V
