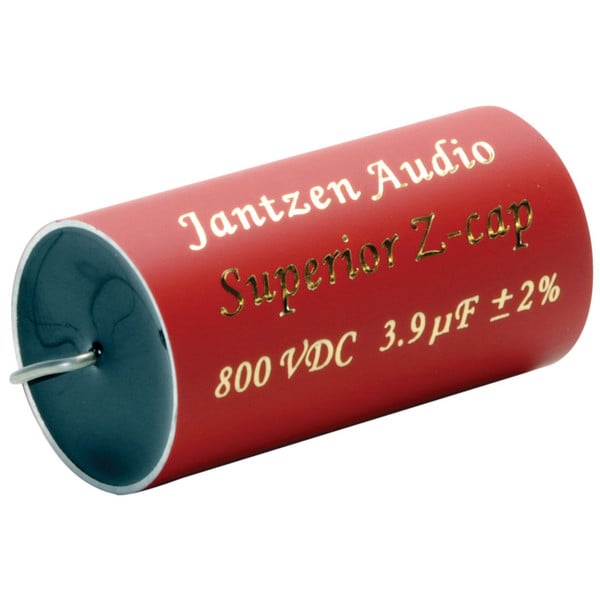

Jantzen Audio 3.9uF 800V Superior Z-Cap Crossover Capacitor

Jantzen Audio
Part #027-488

Jantzen Audio 3.9uF 800V Superior Z-Cap Crossover Capacitor

Jantzen Audio
Part #027-488
Model: 001-0558
Jantzen Audio Superior capacitors are manufactured with one thing in mind—to provide a natural, almost holographic soundstage. The result is a reliable and consistent product that facilitates the construction of high quality, precision crossovers.
Key Features
  • Dimensions: 30mm x 57mm
  • A step above the Standard Z-cap, the Superior Z-cap lets the finest nuances be heard
  • Rated Voltage: 1200 VDC / 800 VAC
  • Tin plated oxygen free copper leads
  • A tolerance of ±2% (on nominal value)
Similar items that may interest you:
See all items in Metalized Polypropylene Crossover Capacitors
Your Price: $29.78
MSRP: $38.99
Save $9.21 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $29.78/ea
Quantity:Qty: 10+$27.30/ea

Back-Ordered

Estimated back in stock 5/16/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 3.9uF 800V Superior Z-Cap Crossover Capacitor

Product Features

  • Dimensions: (Ø 30mm - L: 57mm)
  • The Superior-Z Cap offers extremely high performance, but still at a reasonable price point.
  • Highly recommended for tweeters and mid-range application for high-end passive speaker crossovers and as coupling capacitors in tube and power amplifiers.
  • The Superior Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super MPK Capacitor”.
  • Super MKP capacitors are made with a double lane of metalized polypropylene foil, hence a double foil construction.
  • By using special winding machines and winding techniques, two capacitors are connected in series within one capacitor housing,

  • When making this type of capacitor you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.
  • Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.
  • An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.
  • Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.

Technical Data

  • Type: Non-polarized super MKP (double foil lanes)
  • Dielectric: Polypropylene film
  • Construction: Double-layer round tubular type axial leads
  • Winding: Bifilar extended metalized foil
  • Test Voltage: 150% rated voltage
  • Electrodes: Aluminum metallized vacuum deposited
  • Contacts: Non-inductive zinc thermally sprayed extended film
  • Coating: Red plastic tape wrapped black resin, sealed in an anodized aluminum tube
  • Leads: Tin plated oxygen free copper
  • Voltage rating: 1200 VDC / 800 VAC from 0.1 μF to 0.39μF
    800 VDC / 630 VAC from 0.47 μF to 22μF

  • Capacitance tolerance: ±2% (on nominal value)
  • Dielectric constant: Non-polar dielectric
  • Dissipation factor: Extremely low 4 / 6
  • Dielectric absorption factor: ＜0.5% @ 20℃
  • Dielectric thickness: PB=6µm
  • Equivalent series resistance: Extremely low
  • Self-inductance: 0 nH
  • Insulation resistance: ＞100.000 MΩ @ 20℃
  • Temperature coefficient: -200℃ x 10-6/℃
  • Temperature Range: -55℃ to +85℃
  • Metal layer thickness: PB=0.4µm
  • Metal layer conductivity: PB =2.5 Ω/cm2

Product Details

BrandJantzen Audio
Model001-0558
Part Number027-488
UPC844632062001
Unit of MeasureEach
Weight0.05

Product Specifications

Capacitance3.9 uF
Tolerance2%
Voltage Rating800V
