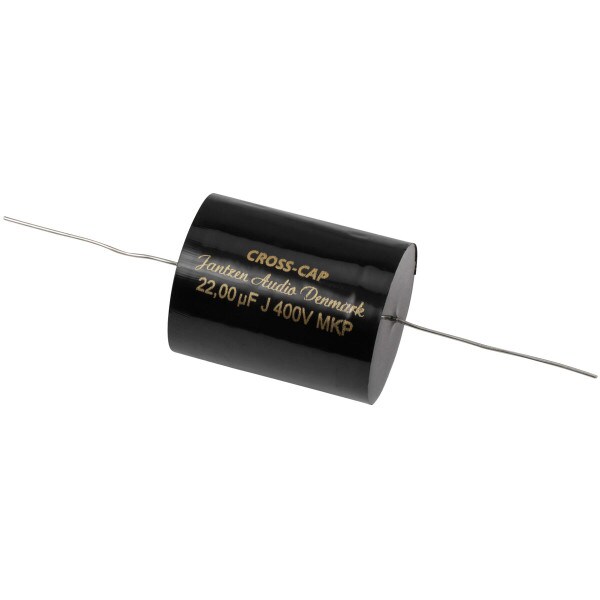

Jantzen Audio 22uF 400 V Cross Cap Crossover Capacitor

Jantzen Audio
Part #027-940

Jantzen Audio 22uF 400 V Cross Cap Crossover Capacitor

Jantzen Audio
Part #027-940
Model: 001-0272
Jantzen Audio Cross Caps are built from ultra-high-quality metallized film and provide superb sonic accuracy and detail for any audio application. 400 VDC rating is excellent for crossover networks, allowing the capacitors to flawlessly handle large current peaks without distortion.
Key Features
  • Dimensions: 34mm x 44mm
  • Virtually free of distortion with a neutral sonic profile
  • Rated Voltage: 400 VDC / 250 VAC
  • A tolerance of ±5% (on nominal value)
Your Price: $12.31
MSRP: $16.99
Save $4.68 (28%)
Bulk Pricing
Quantity:Qty: 1-9 $12.31/ea
Quantity:Qty: 10+$11.28/ea
Order in the next 4 hr 36 min to ship today. Details

88In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 22uF 400 V Cross Cap Crossover Capacitor

Product Features

  • Dimensions: (Ø 34mm - L: 44mm)
  • The Cross Cap is offering a high-level of performance and quality at a very reasonable price point.
  • A great multipurpose entry-level audiophile capacitor.
  • A single foil (standard type MKP/PP foil) construction that uses a good quality aluminum and zinc based metalized polypropylene foil.
  • Available in a very wide range of capacitance values.
  • Virtually free of distortion and delivers a pleasant and rather neutral sonic profile.

Technical Data

  • Capacitor foil: Polypropylene foil metalized with Zinc (Zn) and Aluminum (Al)
  • Dielectric insulation: Polypropylene film
  • Terminal leads: Tinned 4N copper wire
  • Voltage rating: 400 VDC / 250 VAC
  • Working Temperature Range: -40C to +85C
  • Capacitance tolerance: ±5%
  • Loss factor at 1 kHz (maximum)
    • C< l µF : 5 * 104
    • C> l < 20 µF : 105
    • C> 20 µF : 105
  • Insulation resistance at 1 kHz
    • C < l µF : 5 * 104 MOhm
    • l < 20 µF : 3 * 104 MOhm
    •C > 20 µF : 104 MOhm

Product Details

BrandJantzen Audio
Model001-0272
Part Number027-940
UPC844632002663
Unit of MeasureEach
Weight0.01

Product Specifications

Capacitance22 uF
Tolerance5%
Voltage Rating400V
