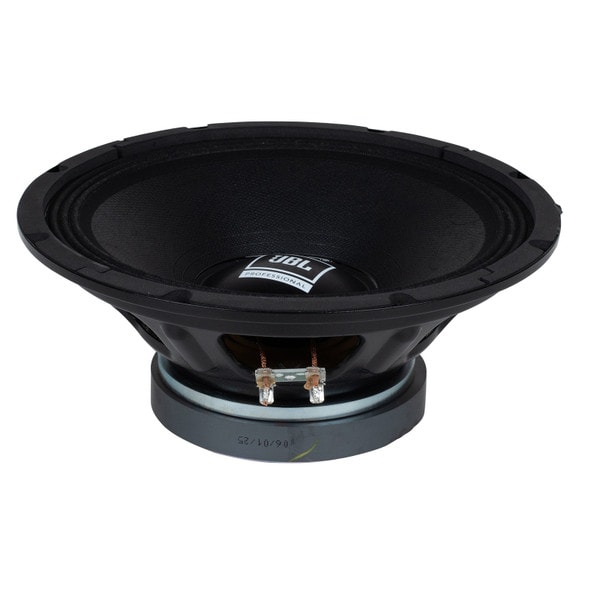

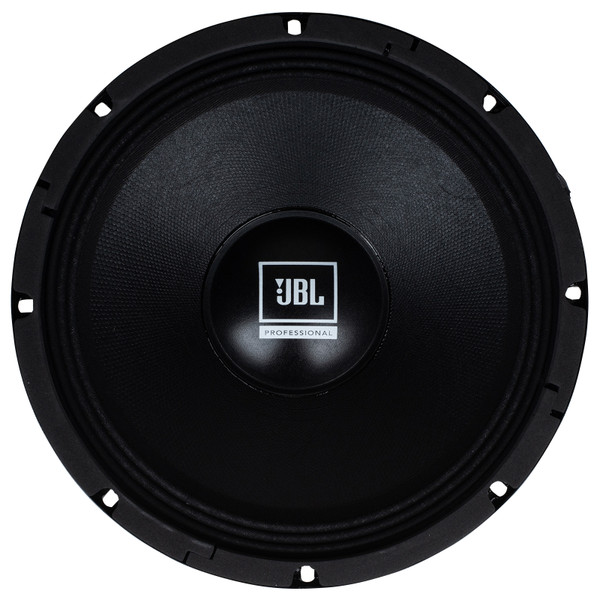

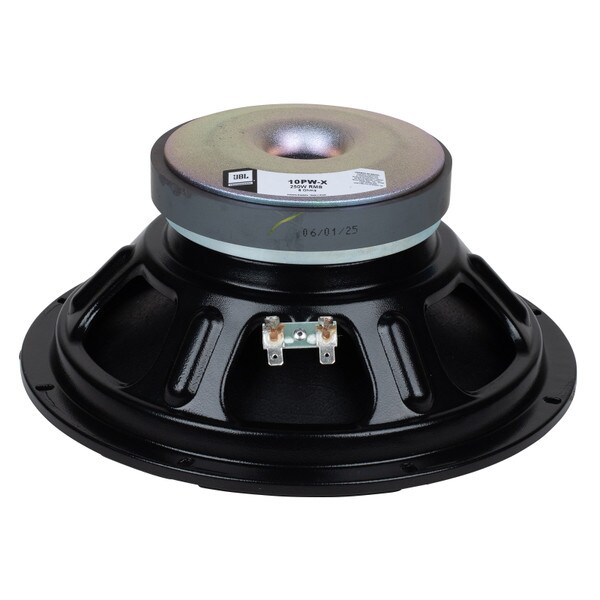

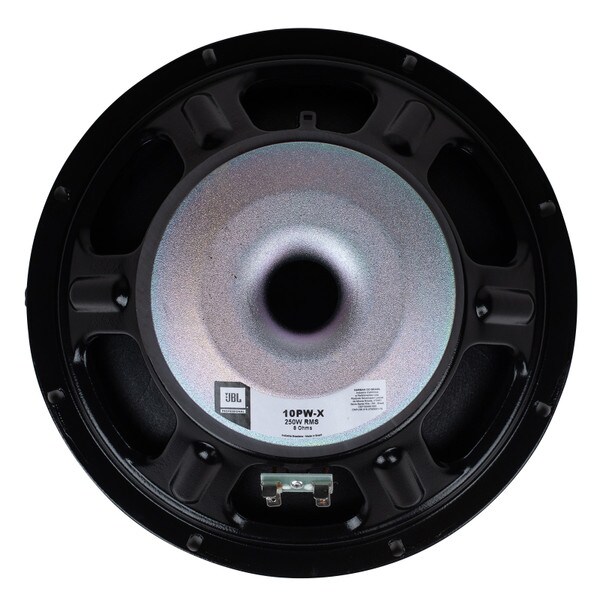

NEW JBL Selenium 10PWX-8R 10" Professional Woofer 8 Ohm

Selenium
Part #264-491

NEW JBL Selenium 10PWX-8R 10" Professional Woofer 8 Ohm

Selenium
Part #264-491
Model: 10PWX-8R

The 10PWX-8R is a professional 10" woofer designed for accurate bass and midbass reproduction. Its reinforced cone and precision-engineered suspension deliver clean response and consistent performance under demanding conditions.

Key Features
  • For bass and mid-bass reproduction for professional sound systems
  • Magnetic assembly optimized by the finite element method (FEA), using a Forged Polar Piece (T-Yoke)
  • Suspension with new geometry, ensuring the product has a flatter, distortion-free curve
  • Cellulose cone using MCF - MULTI COMPOSITE FIBER technology, adding mechanical resistance to the cone
  • Housing made of highly rigid steel sheet, with black epoxy paint
  • Minimum recommended crossover 100 Hz
NEW $119.99
+ FREE SHIPPING
Bulk Pricing
Order in the next 1 hr 7 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

JBL Selenium 10PWX-8R 10" Professional Woofer 8 Ohm

The 10PWX-8R woofer is built for professional audio systems that require tight and controlled bass response without compromising midrange definition. Its magnetic assembly has been developed through Finite Element Analysis (FEA) and incorporates a forged polar piece (T-yoke), resulting in enhanced magnetic control and improved efficiency. The MCF (Multi Composite Fiber) cone construction strengthens the diaphragm, allowing it to maintain tonal integrity under high excursion conditions.

A newly engineered suspension system contributes to a smoother and more linear frequency response, helping eliminate harmonic distortion during playback. Combined with a rigid stamped steel frame coated in black epoxy, the 10PWX-8R offers long-term mechanical stability and resistance to environmental wear. This woofer is suitable for use in both sealed and vented enclosures, making it versatile for various professional applications from portable PA to permanent installations.

With a broad frequency range extending up to 5.6 kHz, the 10PWX-8R covers the entire midbass region with confidence. Whether deployed as a dedicated midbass in multi-way systems or as a compact full-range driver in tighter configurations, it delivers the performance and reliability expected in demanding sound reinforcement settings.

Product Details

BrandSelenium
Model10PWX-8R
Part Number264-491
UPC7896359577330
Unit of MeasureEach
Weight7

Product Specifications

Nominal Diameter10"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response65 to 5600Hz
Sensitivity92dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)98.9Hz
DC Resistance (Re)6.21Ω
Voice Coil Inductance (Le)0.81mH
Mechanical Q (Qms)19.89
Electromagnetic Q (Qes)2.1
Total Q (Qts)1.9
Compliance Equivalent Volume (Vas)1ft³
Mechanical Compliance of Suspension (Cms)84mm/N
BL Product (BL)7.54T·m
Diaphragm Mass Inc. Airload (Mms)0.07g
Maximum Linear Excursion (Xmax)5.4mm
Surface Area of Cone (Sd)0.035cm²

Mounting Information

Baffle Cutout Diameter8.98"
Depth4.09"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.193ft³
Sealed F3121.2Hz
Vented Volume10.56ft³
Vented F363.82Hz
