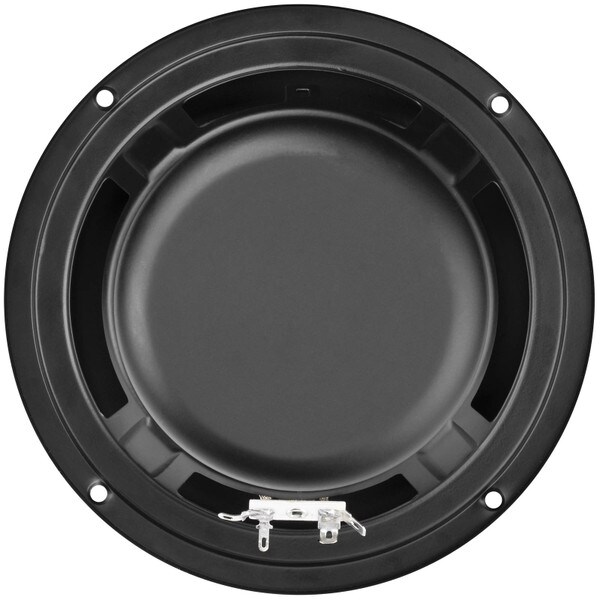

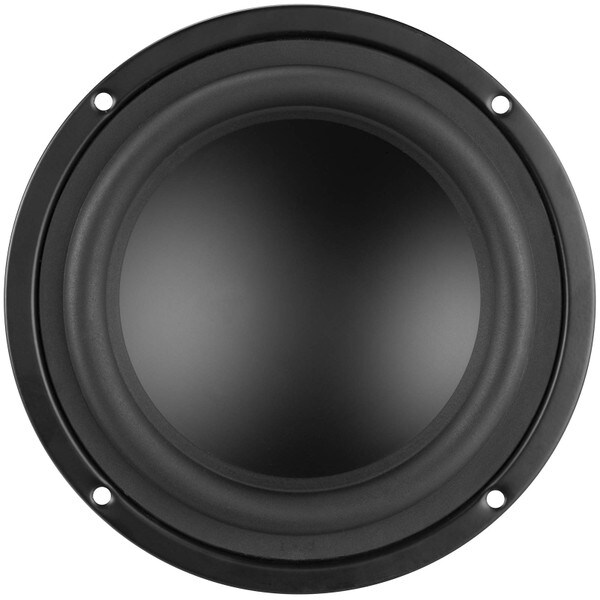

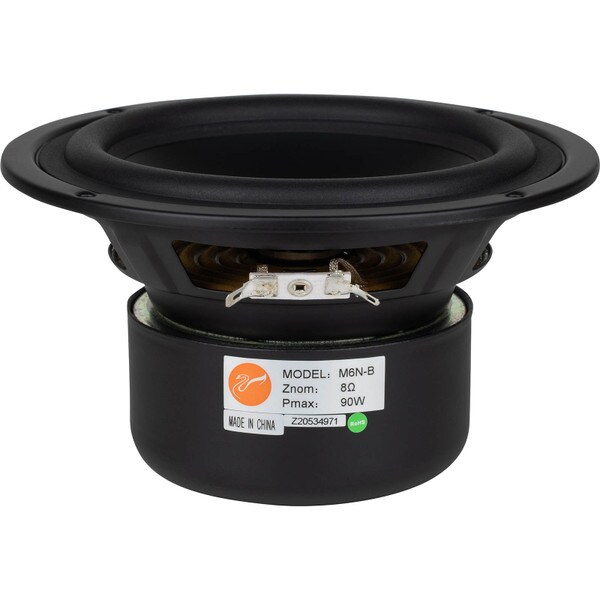

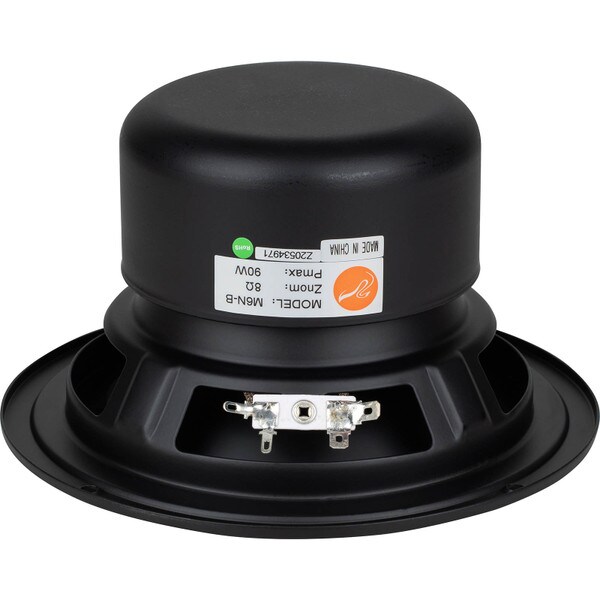

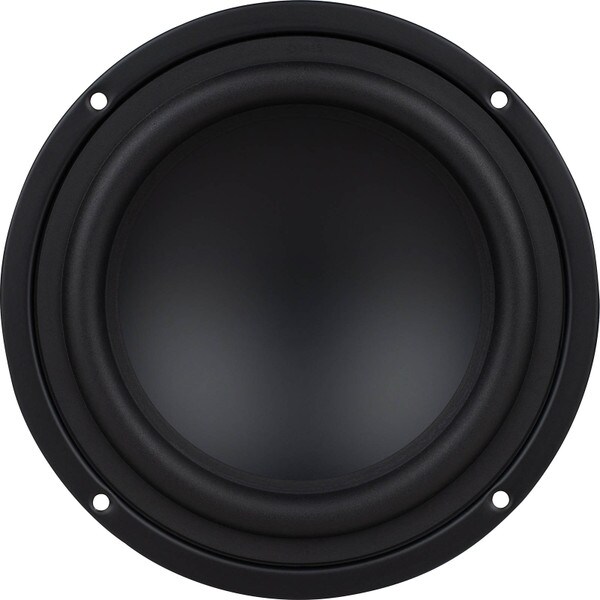

HiVi M6N-B 6" Damped Aluminum/Magnesium Cone Woofer

HiViPart # 297-488
Model: M6N-B
A shielded magnet structure allows the HiVi M6N-B to be incorporated easily into audio/video speaker applications.

Key Features

  • Symmetrical Motor Drive (SMD) reduces distortion
  • Advanced magnesium/aluminum alloy cone provides optimal stiffness and damping
  • Hi-temp voice coil and former for high power handling
  • Magnetically shielded
  • Dynamic, accurate performance
Your Price: $31.98
MSRP: $39.99
Save $8.01 (20%)
Bulk Pricing
Quantity:Qty: 1-3 $31.98/ea
Quantity:Qty: 4-9 $30.53/ea
Quantity:Qty: 10+ $29.08/ea
In Stock
Get Notified When Available

We'll send you an email when HiVi M6N-B 6" Damped Aluminum/Magnesium Cone Woofer is back in stock or available for preorder.

Order in the next 0 hr 38 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi M6N-B 6" Damped Aluminum/Magnesium Cone Woofer

A shielded magnet structure allows the HiVi M6N-B to be incorporated easily into audio/video speaker applications. The driver may be used in a small closed box as a midrange unit in a 3-way system and the good extension (50 Hz) in a vented enclosure allows for use in a 2-way, two-driver or MTM configured system.

Product Details

BrandHiVi
ModelM6N-B
Part Number297-488
UPC848864070643
Unit of MeasureEach
Weight4.4

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.65
Power Handling (RMS)45 Watts
Power Handling (MAX)90 Watts
Impedance
Frequency Response46 to 8,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)46Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)4.69
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)0.77ft³
Mechanical Compliance of Suspension (Cms)0.871mm/N
BL Product (BL)7.8T·m
Diaphragm Mass Inc. Airload (Mms)13.6g
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)133cm²

Materials of Construction

Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7"
Baffle Cutout Diameter5.313"
Depth4.0625"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.38ft³
Sealed F366.6Hz
Vented Volume0.75ft³
Vented F345.8Hz
