HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Full-Range Driver

HiViPart # 297-482
Model: M3N-B

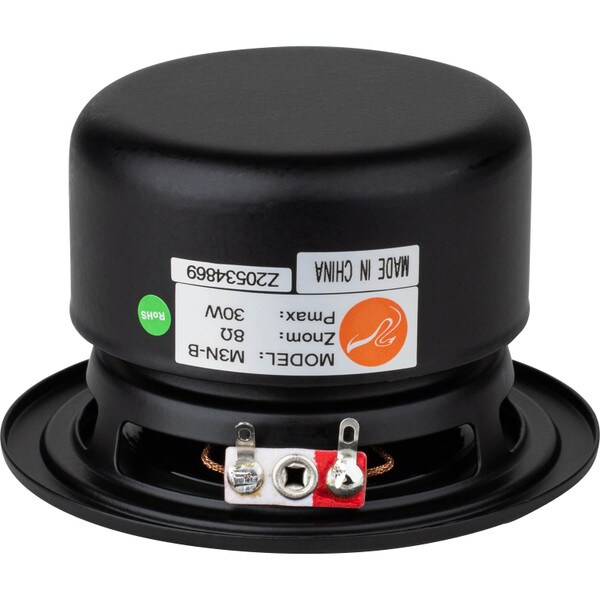

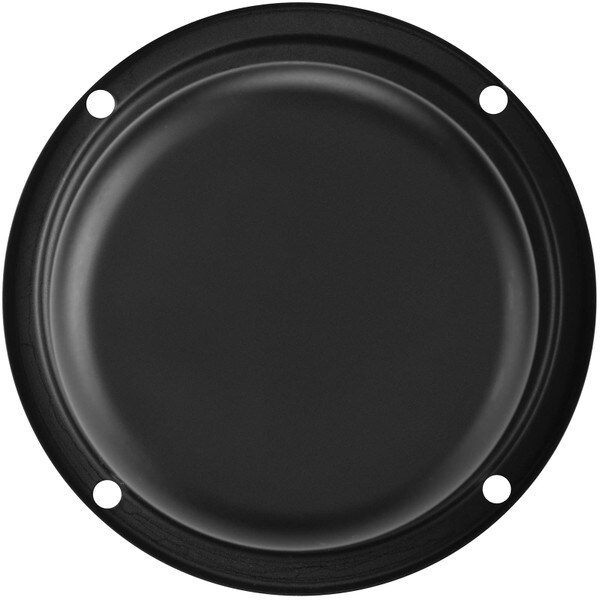

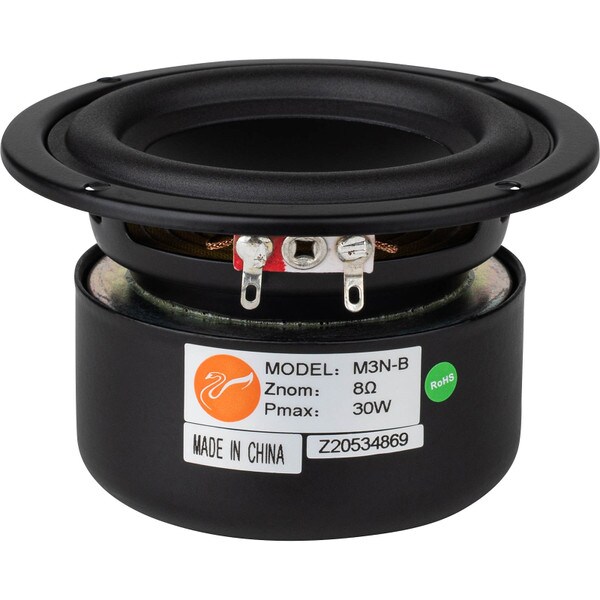

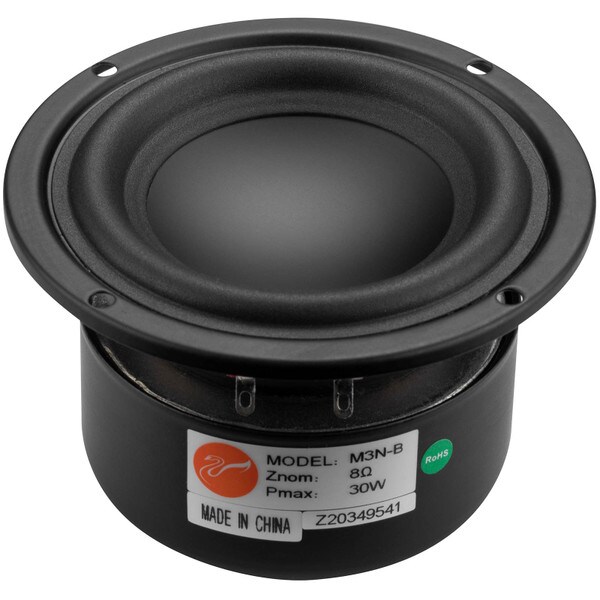

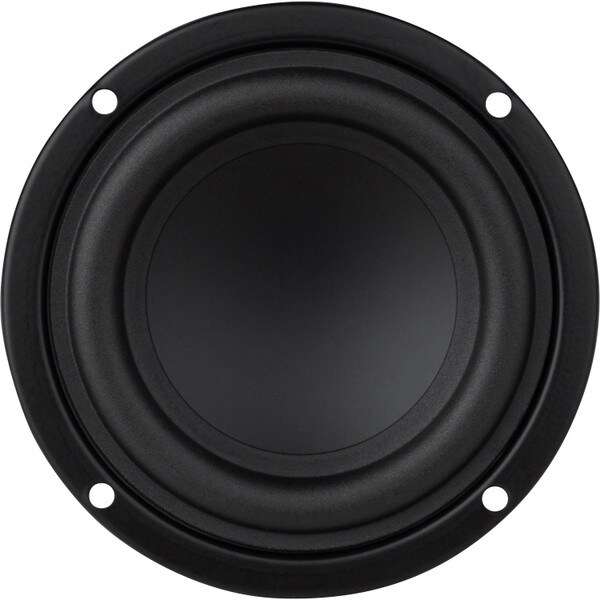

The HiVi M3N-B 3" full-range speaker features a black magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.
Your Price: $15.98
MSRP: $27.99
Save $12.01 (43%)
Bulk Pricing
66 In Stock
Get Notified When Available

We'll send you an email when HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Full-Range Driver is back in stock or available for preorder.

Order in the next 10 hr 34 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Full-Range Driver

A shielded magnet structure allows the HiVi M3N-B 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a black magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.

Product Details

BrandHiVi
ModelM3N-B
Part Number297-482
UPC848864070612
Unit of MeasureEach
Weight1.25

Product Specifications

Nominal Diameter3"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response100 to 8,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter0.78"

Thiele-Small Parameters

Resonant Frequency (Fs)91Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)1.03
Total Q (Qts)0.8
Compliance Equivalent Volume (Vas)0.05ft³
Mechanical Compliance of Suspension (Cms)0.82mm/N
BL Product (BL)3T·m
Diaphragm Mass Inc. Airload (Mms)2.6g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)30cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Magnet MaterialFerrite

Mounting Information

Baffle Cutout Diameter3"
Depth2.65"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F398.2Hz
Vented Volume0.15ft³
Vented F373.6Hz
