Overview

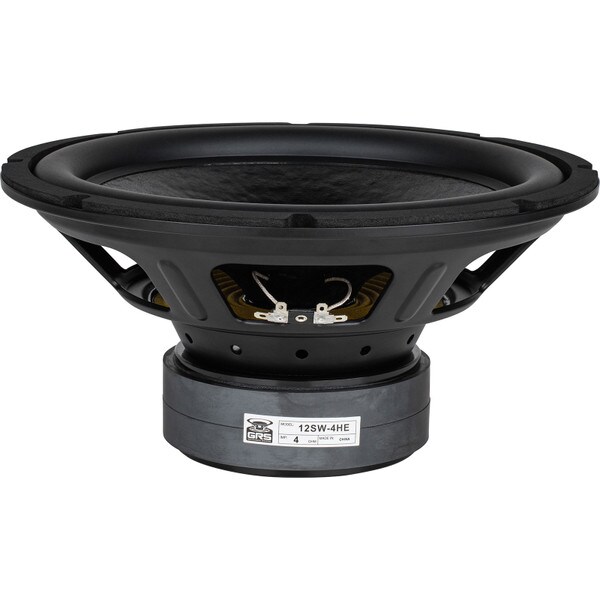

GRS 12SW-4HE 12" High Excursion Subwoofer
Engineered for extended low frequency response and flexibility
The GRS 12SW-4HE 12” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 12SW-4HE is suitable as a drop-in replacement for most existing 12” subwoofers.
Key Specs:
- Nominal Diameter: 12"
- Power Handling (RMS): 250W
- Power Handling (MAX): 500W
- Impedance: 4 Ω
- Frequency Response: 20-500Hz
- Sensitivity: 84dB 2.83V/1m
- Voice Coil Diameter: 2"
- Maximum Linear Excursion: 11.7mm
Frequency Response & Impedance Curve
the GRS 12SW-4HE has a bass-centric response from 26Hz up to 500Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from a 12-inch driver.
Bass-worthy construction

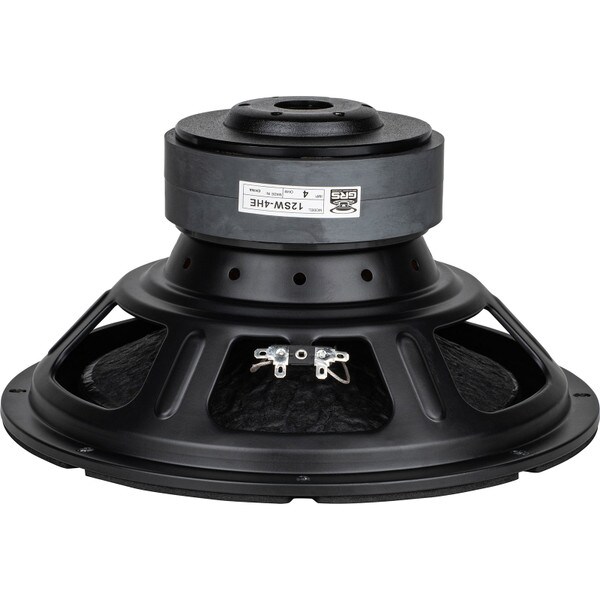

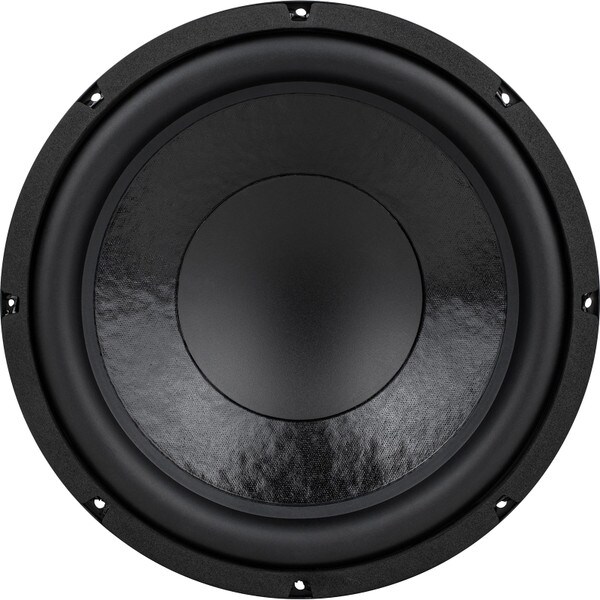

Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 12SW-4HE can comfortably handle up to 250 watts RMS of power.
