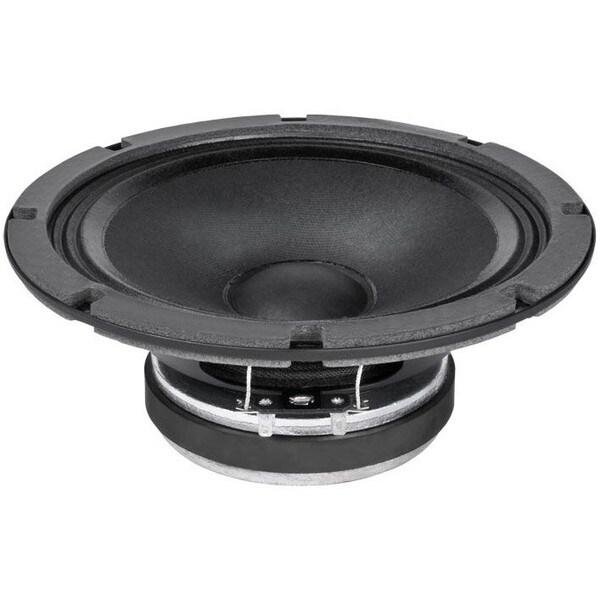

FaitalPRO 8FE200 8" Professional Midbass 8 Ohm

FaitalPRO
Part #294-1171

FaitalPRO 8FE200 8" Professional Midbass 8 Ohm

FaitalPRO
Part #294-1171
With a linear frequency response from 60 to 5,000 Hz and a high sensitivity of 95 dB, FaitalPRO's 8FE200 8" midrbass speaker stands out as a great value for professional, high output home audio, and car audio applications.
Key Features
  • 130 watt RMS, 260 watt program power handling
  • Cloth triple roll surround
  • High power ferrite ring motor for 95 dB sensitivity
  • Made in Italy
Your Price: $64.00
+ FREE SHIPPING
Bulk Pricing
Ships next business day. Details

8In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 8FE200 8" Professional Midbass 8 Ohm

FaitalPRO's 8FE200 8" professional midbass speaker is purpose-built to cover from 60 Hz to 5,000 Hz in three-way speakers, but also works great as a door speaker in car audio applications and a woofer in two-way speakers.

To ensure absolute signal fidelity, FaitalPRO built the 8FE200 with a strong ferrite ring-powered motor. Not only does this increase sensitivity to 95 dB (1W/1m), it keeps the Qts at a respectable figure of 0.63. A triple roll cloth surround, stamped steel frame, and treated paper cone combine to make the 8FE200 a truly durable driver. Made in Italy.

Product Details

BrandFaitalPRO
Model8FE200
Part Number294-1171
UPC848864010922
Unit of MeasureEach
Weight5.2

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.75
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance8Ω
Frequency Response60 to 5,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.46"

Thiele-Small Parameters

Resonant Frequency (Fs)80Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.44mH
Mechanical Q (Qms)13
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.63
Compliance Equivalent Volume (Vas)0.48ft³
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)8.2T·m
Diaphragm Mass Inc. Airload (Mms)15g
Maximum Linear Excursion (Xmax)4.67mm
Surface Area of Cone (Sd)191cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.24"
Baffle Cutout Diameter6.93"
Depth3.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3102.9Hz
Vented Volume0.88ft³
Vented F365.1Hz
