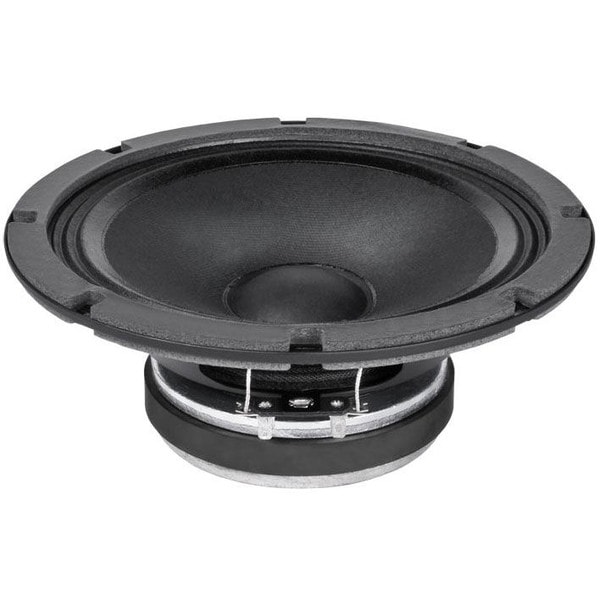

FaitalPRO 8FE200 8" Professional Midbass 4 Ohm

FaitalPROPart # 294-1170
Model: 8FE200
With a linear frequency response from 60 to 5,000 Hz and a high sensitivity of 95 dB, FaitalPRO's 8FE200 8" midrbass speaker stands out as a great value for professional, high output home audio, and car audio applications.

Key Features

  • High power ferrite ring motor for low Qts and sensitivity
  • 130 watt RMS, 260 watt program power handling
  • Cloth triple roll surround
  • Made in Italy
Your Price: $71.50
Bulk Pricing
14 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 8FE200 8" Professional Midbass 4 Ohm is back in stock or available for preorder.

Order in the next 9 hr 4 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 8FE200 8" Professional Midbass 4 Ohm

FaitalPRO's 8FE200 8" professional midbass speaker is purpose-built to cover from 60 Hz to 5,000 Hz in three-way speakers, but also works great as a door speaker in car audio applications.

To ensure absolute signal fidelity, FaitalPRO built the 8FE200 with a strong ferrite ring-powered motor. Not only does this increase sensitivity to 95 dB (1W/1m), it keeps the Qts at a respectable figure of 0.44. A triple roll cloth surround, stamped steel frame, and treated paper cone combine to make the 8FE200 a truly durable driver. Made in Italy.

Product Details

BrandFaitalPRO
Model8FE200
Part Number294-1170
UPC848864010915
Unit of MeasureEach
Weight5.15

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.75
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance4Ω
Frequency Response60 to 5,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.46"

Thiele-Small Parameters

Resonant Frequency (Fs)80Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.25mH
Mechanical Q (Qms)8.7
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)0.47ft³
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)7T·m
Diaphragm Mass Inc. Airload (Mms)15.3g
Maximum Linear Excursion (Xmax)4.62mm
Surface Area of Cone (Sd)191cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.24"
Baffle Cutout Diameter6.93"
Depth3.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.38ft³
Sealed F3145.5Hz
Vented Volume0.63ft³
Vented F372.1Hz
