  • FaitalPRO 12PR300 12" Neodymium Professional Woofer 4 Ohm

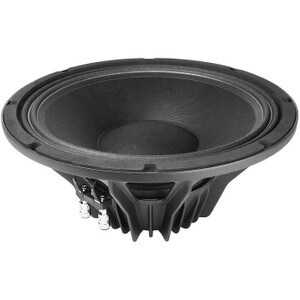

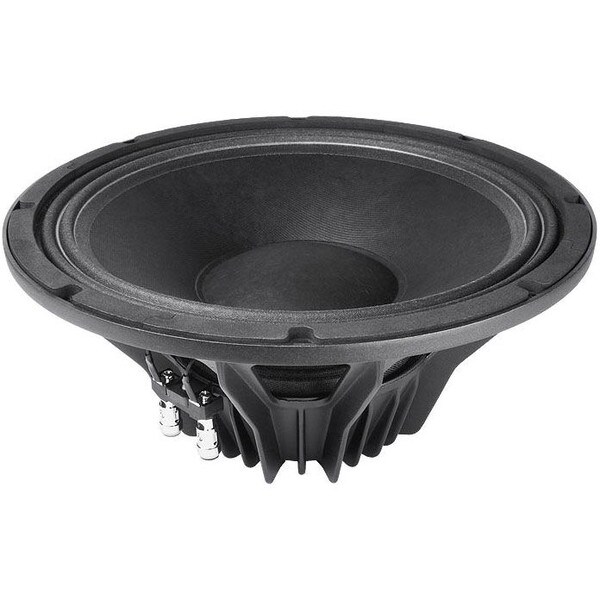

FaitalPRO 12PR300 12" Neodymium Professional Woofer 4 Ohm

FaitalPROPart # 294-1240
Model: 12PR300
Choose FaitalPRO's 12" 12PR300 woofer to replace or upgrade the woofer in your speaker cabinet. A flat frequency response to 5,000 Hz and high sensitivity of 99 dB (1W/1m) allows it to match well with nearly any horn driver.

Key Features

  • Lightweight design weighs just over 5-1/2 pounds
  • 97 dB sensitivity due to high-energy neo motor
  • Four ohm impedance
  • Durable cast-aluminum frame
  • Ultra-linear frequency response
  • Made in Italy
Your Price: $301.00
+ FREE SHIPPING
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when FaitalPRO 12PR300 12" Neodymium Professional Woofer 4 Ohm is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 12PR300 12" Neodymium Professional Woofer 4 Ohm

With high sensitivity and a ruler-flat frequency response from 50 Hz to 5,000 Hz, FaitalPRO's 12PR300 12" woofer is perfect for replacing and upgrading tired, worn-out woofers in small to large-sized, vented two-way speakers. The 12PR300 is a great choice for live sound and high output home audio speakers.

An eight-spoke, cast-aluminum frame adds structural integrity, while the treated paper cone and polycotton M-Roll surround can withstand years of constant use. The 300 watt RMS power handling rating is made possible by the use of a 2.5" voice coil on a glass fiber former. A neodymium slug motor keeps weight low, just over 5-1/2 pounds. Made in Italy.

Product Details

BrandFaitalPRO
Model12PR300
Part Number294-1240
UPC848864008431
Unit of MeasureEach
Weight7

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance4Ω
Frequency Response50 to 5,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)50Hz
DC Resistance (Re)3.3Ω
Voice Coil Inductance (Le)0.46mH
Mechanical Q (Qms)19.4
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)2.23ft³
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)11.8T·m
Diaphragm Mass Inc. Airload (Mms)54.4g
Maximum Linear Excursion (Xmax)4.92mm
Surface Area of Cone (Sd)489cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.41"
Baffle Cutout Diameter11.06"
Depth5.54"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.8ft³
Sealed F399.1Hz
Vented Volume1.9ft³
Vented F352.6Hz
