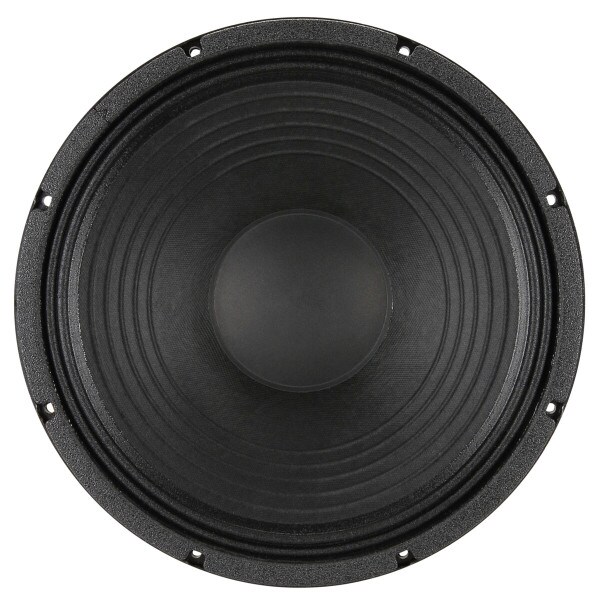

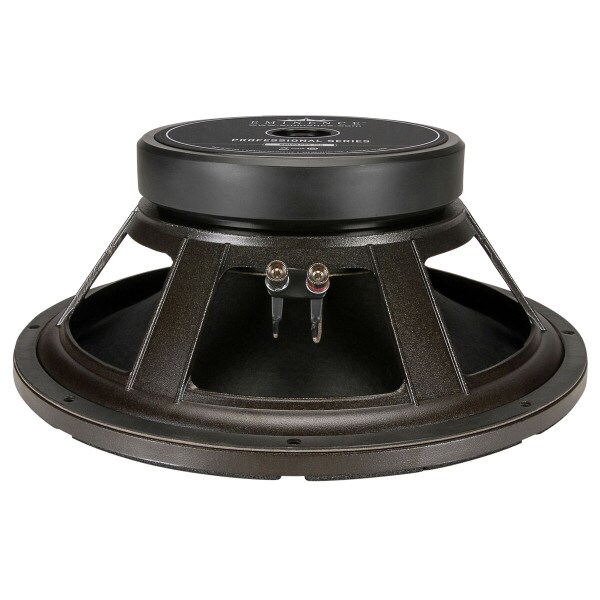

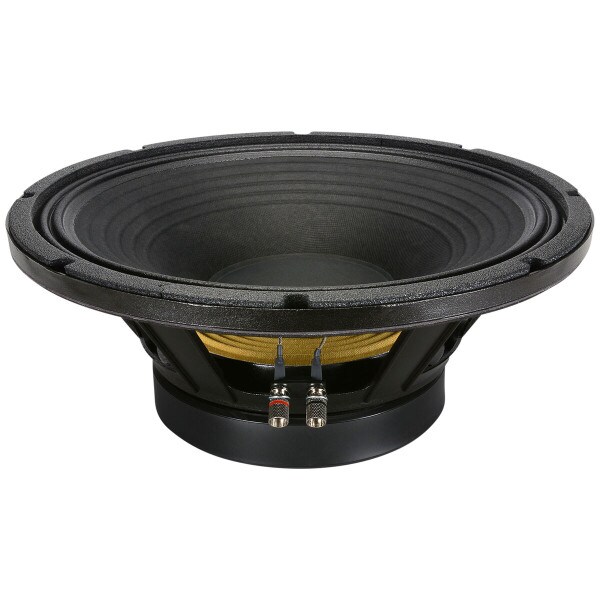

Eminence Omega Pro-15A 15" Cast Frame Driver

Eminence SpeakerPart # 290-430
Model: Omega Pro-15A
Recommended for professional audio, the Eminence Omega Pro-15A 15" speaker is optimized for use as a woofer in vented enclosures. Also good for horn loading and scoops.

Key Features

  • 4", two-layer, 27 ga. copper voice coil with Kapton® former
  • Vented and extended pole piece
  • Die-cast aluminum basket
  • Paper cone with double half-roll cloth cone edge
  • 800 watts RMS power handling
Similar items that may interest you:
Beyma 15WR400 WR Series 15" Subwoofer 8 Ohm
Price: $223.50Part # 253-061
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $224.99
+ FREE SHIPPING
MSRP: $281.24
Save $56.25 (20%)
Bulk Pricing
13 In Stock
Get Notified When Available

We'll send you an email when Eminence Omega Pro-15A 15" Cast Frame Driver is back in stock or available for preorder.

Order in the next 12 hr 40 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Omega Pro-15A 15" Cast Frame Driver

Recommended for professional audio, the Eminence Omega Pro-15A 15" speaker is optimized for use as a woofer vented enclosures. Also good for horn loading and scoops. 4" copper voice coil, 109 oz. magnet, cast aluminum frame. The 800 watts RMS Omega Pro-15A delivers performance equal to drivers costing twice as much! Made in the USA. 7-year manufacturer's warranty!

Product Details

BrandEminence Speaker
ModelOmega Pro-15A
Part Number290-430
UPC876358000418
Unit of MeasureEach
Weight24.31

Product Specifications

Nominal Diameter15"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance
Frequency Response51 to 1,700Hz
Sensitivity97.3dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)5.28Ω
Voice Coil Inductance (Le)1.04mH
Mechanical Q (Qms)5.69
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)9.1ft³
Mechanical Compliance of Suspension (Cms)0.25mm/N
BL Product (BL)17.5T·m
Diaphragm Mass Inc. Airload (Mms)94g
Maximum Linear Excursion (Xmax)4.8mm
Surface Area of Cone (Sd)856.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.21"
Baffle Cutout Diameter14"
Depth6.35"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F375.5Hz
Vented Volume5ft³
Vented F344.2Hz
