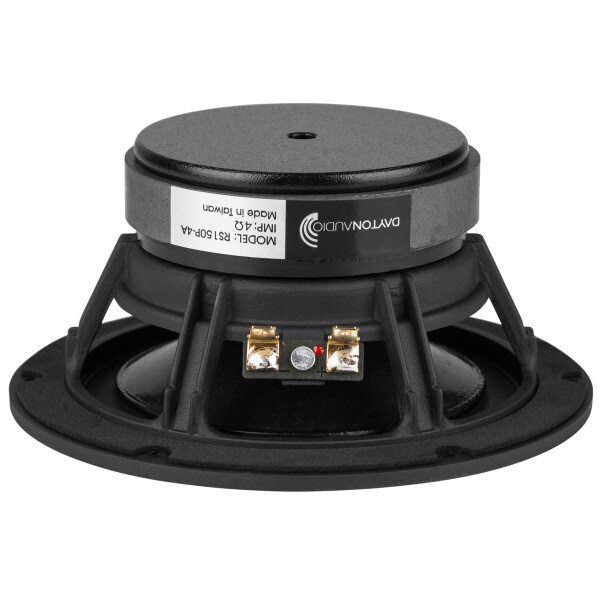

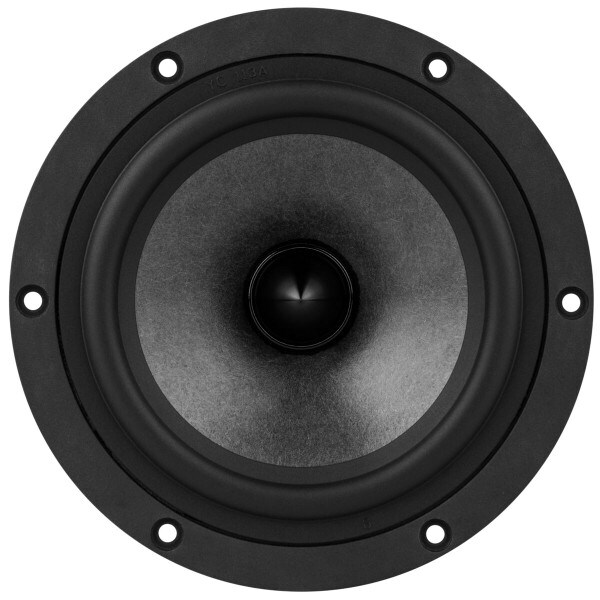

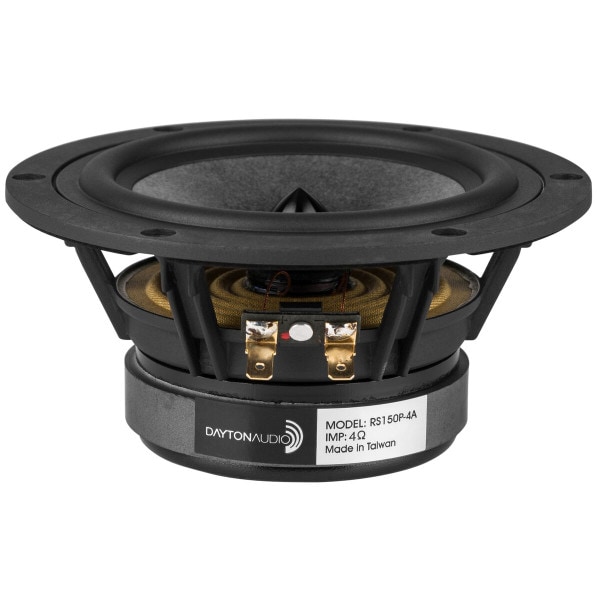

Dayton Audio RS150P-4A 6" Reference Paper Woofer 4 Ohm

Dayton AudioPart # 295-563
Model: RS150P-4A

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.

Key Features

  • Now with improved frequency response for easier crossover integration
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
  • 90.3 dB sensitivity and 4.4 mm of excursion
Your Price: $59.98
MSRP: $77.99
Save $18.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $59.98/ea
Quantity:Qty: 4+ $48.12/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio RS150P-4A 6" Reference Paper Woofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS150P-4A 6" Reference Paper Woofer 4 Ohm

Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Product Details

BrandDayton Audio
ModelRS150P-4A
Part Number295-563
UPC848791002649
Unit of MeasureEach
Weight2.7

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.43
Power Handling (RMS)40 Watts
Power Handling (MAX)65 Watts
Impedance4Ω
Frequency Response45 to 10,000Hz
Sensitivity90.3dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)43.7Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.39mH
Mechanical Q (Qms)1.85
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)0.55ft³
Mechanical Compliance of Suspension (Cms)1.54mm/N
BL Product (BL)4.4T·m
Diaphragm Mass Inc. Airload (Mms)8.6g
Maximum Linear Excursion (Xmax)4.4mm
Surface Area of Cone (Sd)85cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.91"
Baffle Cutout Diameter4.78"
Depth2.89"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.12ft³
Sealed F3102Hz
Vented Volume0.25ft³
Vented F361Hz
