CLEARANCE Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame

Dayton AudioPart # 295-338
Model: RS100T-8
Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.

Key Features

  • Truncated cast frame, great for line arrays and MTM speaker designs
  • Long-excursion motor and suspension for strong bass performance
  • Advanced low-distortion motor design
  • Extended, linear response
  • Distortion-reducing copper ring in magnetic gap
  • Lightweight black anodized aluminum cone
  • Designed and engineered in the U.S.A.
Similar items that may interest you:
Dayton Audio RS100P-8 4" Reference Paper Midwoofer 8 Ohm
Price: $38.98Part # 295-359
See all items in Woofers
Get Notified When Available

We'll send you an email when Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame

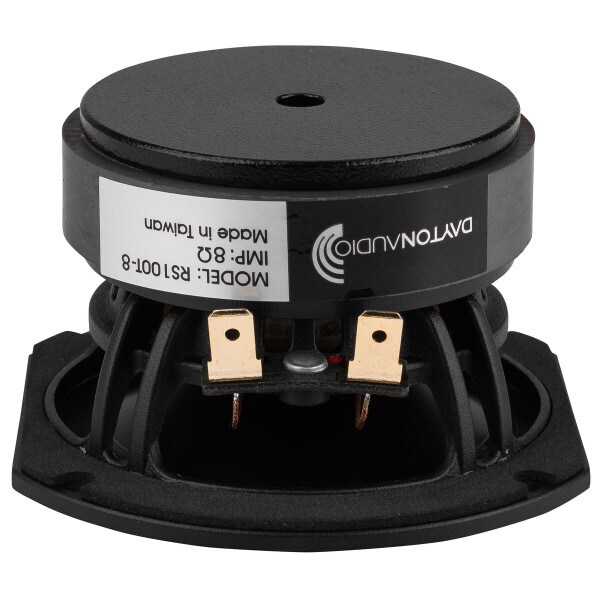

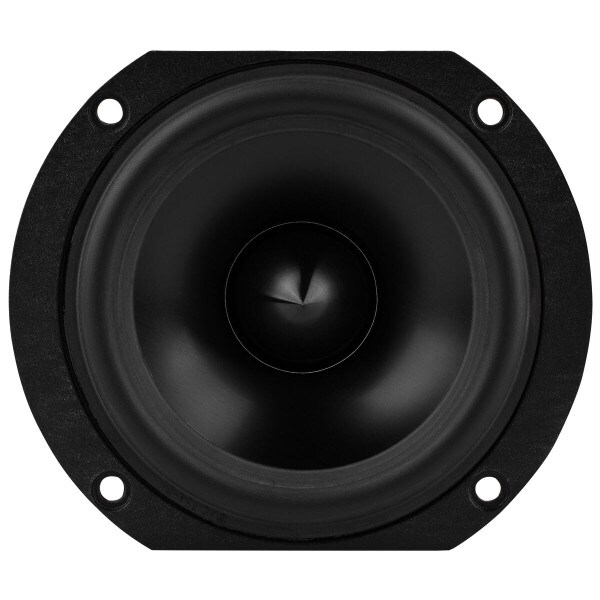

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.


Product Details

BrandDayton Audio
ModelRS100T-8
Part Number295-338
UPC844632079788
Unit of MeasureEach
Weight1.4

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter3.54
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance
Frequency Response90 to 20,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)94.9Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)2.4
Electromagnetic Q (Qes)0.79
Total Q (Qts)0.6
Compliance Equivalent Volume (Vas)0.08ft³
Mechanical Compliance of Suspension (Cms)1.3mm/N
BL Product (BL)3.27T·m
Diaphragm Mass Inc. Airload (Mms)2.2g
Maximum Linear Excursion (Xmax)3.7mm
Surface Area of Cone (Sd)36.3cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.86"
Baffle Cutout Diameter3.03"
Depth2.01"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.105ft³
Sealed F3124.8Hz
Vented Volume0.12ft³
Vented F377Hz
