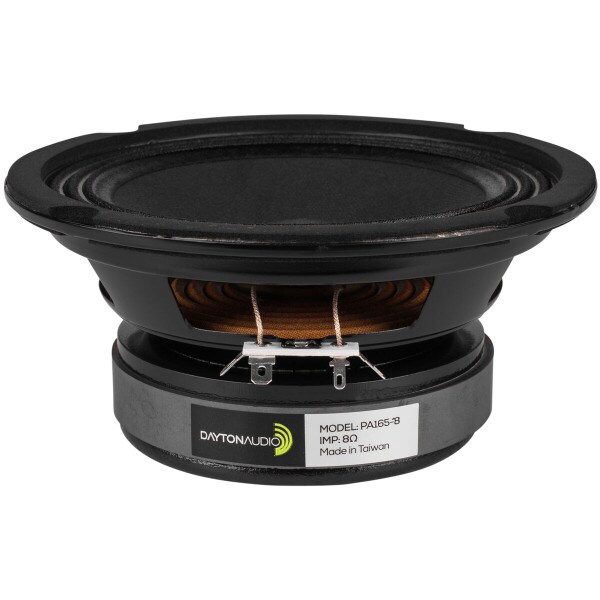

Dayton Audio PA165-8 6" PA Driver Speaker

Dayton AudioPart # 295-015
Model: PA165-8
This unit was designed with the goal of the producing the highest possible output from a driver its size. Great for use in small stage monitors, as a midrange in multi-way systems, or even as a hi-fi midbass.

Key Features

  • High power and efficiency for extreme output
  • Perfect for use as a high output midrange or midbass
  • Even hung voice coil to maximize efficiency
  • Naturally damped paper cone and cloth surround
Similar items that may interest you:
Pyle PDMW6 6-1/2" Mid-Woofer
Price: $23.12Part # 292-204
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $29.98
MSRP: $36.99
Save $7.01 (19%)
Bulk Pricing
Quantity:Qty: 1-3 $29.98/ea
Quantity:Qty: 4+ $24.98/ea
88 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio PA165-8 6" PA Driver Speaker is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PA165-8 6" PA Driver Speaker

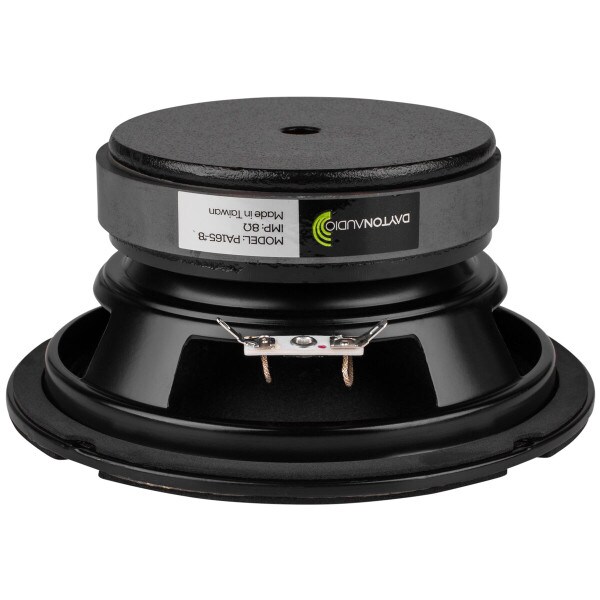

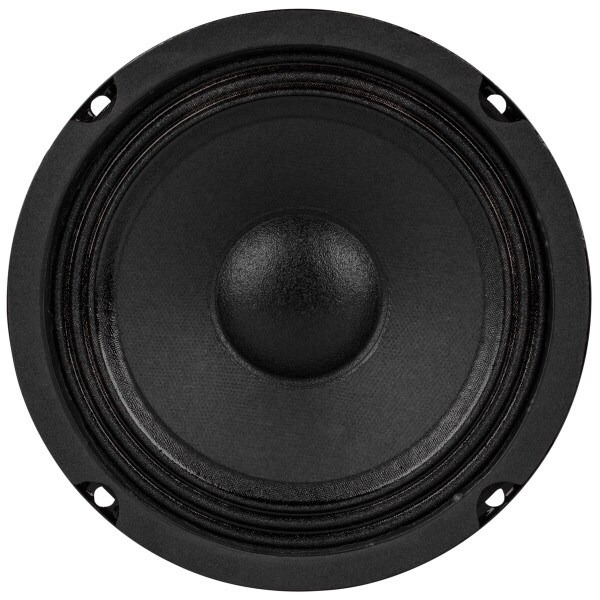

This unit was designed with the goal of the producing the highest possible output from a driver its size. Great for use in small stage monitors, as a midrange in multi-way systems, or even as a hi-fi midbass. Construction includes a steel frame, paper cone, treated cloth surround, vented pole piece and high-power-handling 1-1/2" aluminum voice coil.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelPA165-8
Part Number295-015
UPC844632000201
Unit of MeasureEach
Weight3.8

Product Specifications

Nominal Diameter6"
Power Handling (RMS)75 Watts
Power Handling (MAX)150 Watts
Impedance8Ω
Frequency Response80 to 5,000Hz
Sensitivity92.9dB 2.83V/1m
Voice Coil Diameter1.38"

Thiele-Small Parameters

Resonant Frequency (Fs)80.8Hz
DC Resistance (Re)5.15Ω
Voice Coil Inductance (Le)0.54mH
Mechanical Q (Qms)2.19
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)0.32ft³
Mechanical Compliance of Suspension (Cms)0.42mm/N
BL Product (BL)6.33T·m
Diaphragm Mass Inc. Airload (Mms)9.2g
Surface Area of Cone (Sd)120.8cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.69"
Depth2.96"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.13ft³
Sealed F3145Hz
Vented Volume0.42ft³
Vented F375Hz
