• Home
  • Pyle PDMW6 6-1/2" Mid-Woofer

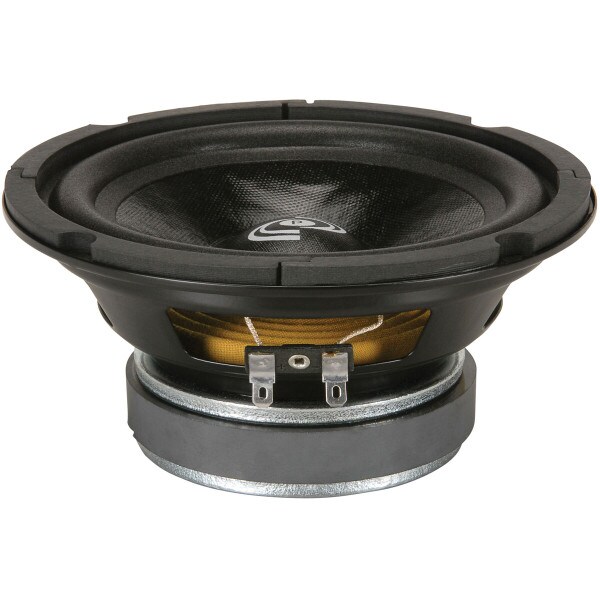

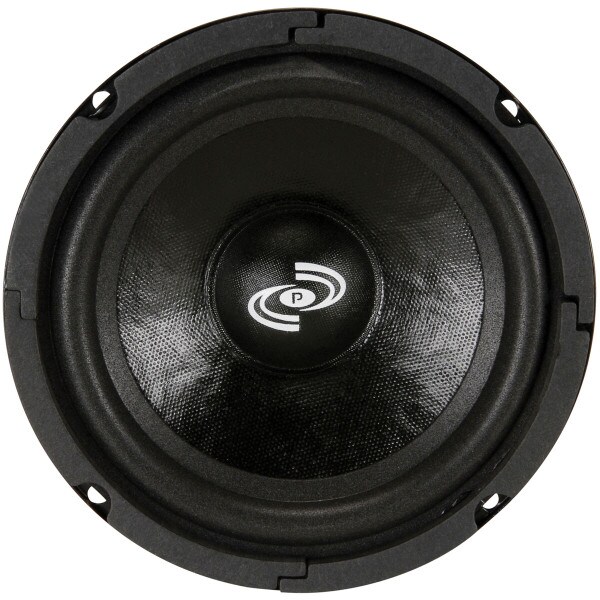

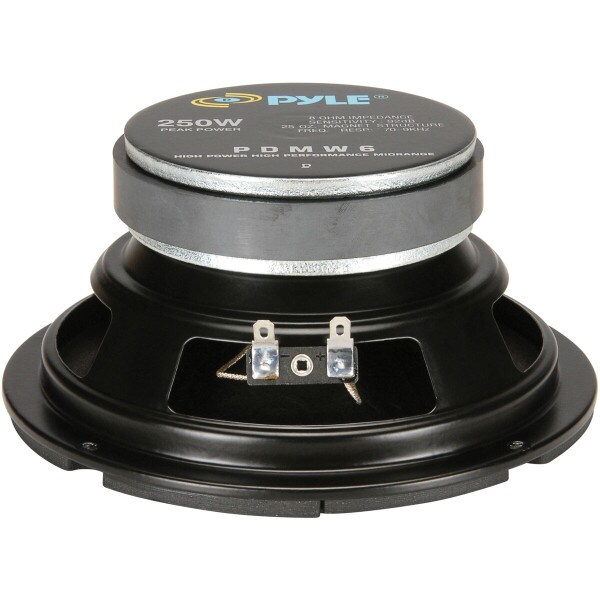

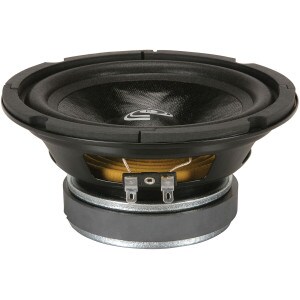

Pyle PDMW6 6-1/2" Mid-Woofer

Pyle AudioPart # 292-204
Model: PDMW6
Pyle Pro professional P.A. mid-woofers and woofers provide low and mid frequency sound reproduction in a wide range of sizes and capabilities.
Similar items that may interest you:
Dayton Audio PA165-8 6" PA Driver Speaker
Price: $29.98Part # 295-015
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $23.12
MSRP: $46.99
Save $23.87 (51%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Pyle PDMW6 6-1/2" Mid-Woofer is back in stock or available for preorder.

Estimated back in stock 9/26/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Pyle PDMW6 6-1/2" Mid-Woofer

Pyle Pro professional P.A. mid-woofers and woofers provide low and mid frequency sound reproduction in a wide range of sizes and capabilities. Featuring strong, steel baskets and large voice coils, these speakers enable the audio professional to design performance systems perfectly suited to their environments and applications at a price that can't be beat. The mid-woofers feature paper coated cones and 1" high temperature aluminum voice coils while the woofers offer strong black paper cones, cloth edge suspension, and bumped and vented pole pieces for longer excursion and greater power handling.

Product Details

BrandPyle Audio
ModelPDMW6
Part Number292-204
UPC068888713078
Unit of MeasureEach
Weight3.28

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)125 Watts
Power Handling (MAX)250 Watts
Impedance8Ω
Frequency Response70 to 9,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)67Hz
DC Resistance (Re)7.1Ω
Voice Coil Inductance (Le)0.96mH
Mechanical Q (Qms)4.99
Electromagnetic Q (Qes)0.95
Total Q (Qts)0.8
Compliance Equivalent Volume (Vas)0.36ft³
Maximum Linear Excursion (Xmax)3.3mm

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.63"
Depth3"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.35ft³
Sealed F376.1Hz
Vented Volume0.7ft³
Vented F350.5Hz
