Dayton Audio ME525MTM 5-1/4" Micro-Edge MTM LCRS In-Wall Speaker Each

Name: Dayton Audio ME525MTM 5-1/4" Micro-Edge MTM LCRS In-Wall Speaker Each
Brand: Dayton Audio
SKU: 300-435
Price: 99.98 USD
Availability: InStock
Rating: 4.5 (19 reviews)

Dayton AudioPart # 300-435

Model: ME525MTM

Read 19 Reviews | 135 Questions, 320 Answers or

5-1/4 in. In-Wall MTM 6-1/2 in. Ceiling Angled 6-1/2 in. Ceiling Stereo 6-1/2 in. Ceiling 6-1/2 in. In-Wall 8 in. Ceiling 8 in. In-Wall Rough-In Kit

The Micro-Edge series in-wall and in-ceiling speakers from Dayton Audio combine sophisticated, minimalist styling with robust acoustical engineering and design features, for outstanding home theater and musical performance. The dual-woofer ME525MTM is designed to be used as a front, center, or surround channel speaker.

Key Features

Versatile all-purpose L/C/R/S speaker for home theater or music

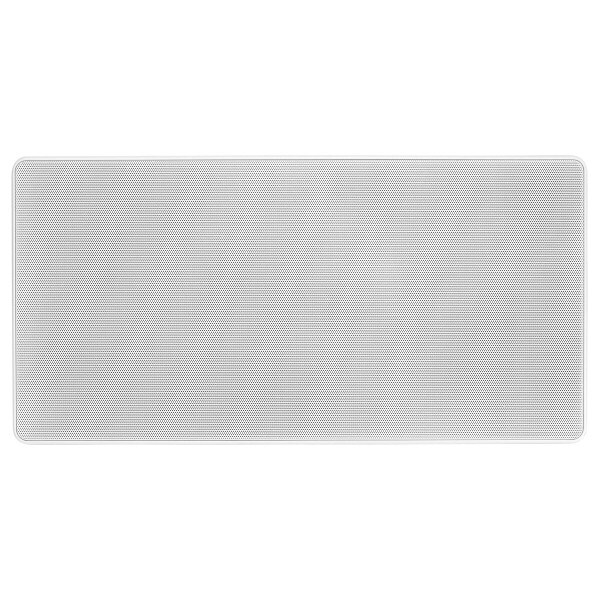

Contemporary Micro-Edge™ grills with magnetic grill retention

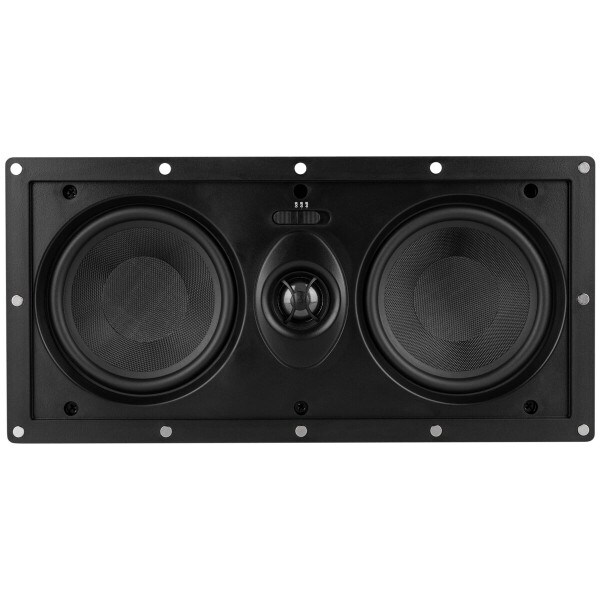

Dual 5-1/4" woven Kevlar cone woofers and 1" pivoting silk dome tweeter
Mounts vertically or horizontally
Room integration switch with selectable 0/-3/-6 dB treble adjustment

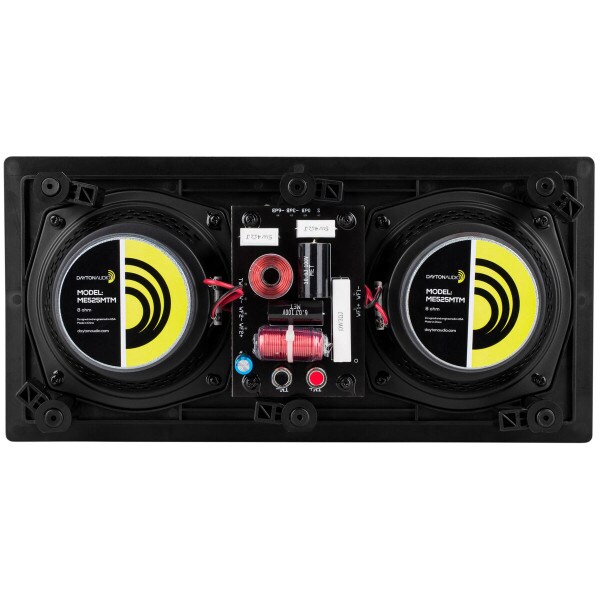

Optimized 12 dB/octave crossover with exclusive tuning by Dayton Audio

Overview

Dayton Audio ME525MTM 5-1/4" Micro-Edge MTM LCRS In-Wall Speaker Each

Dayton Audio ME525MTM 5-1/4" MYM LCRS In-Wall Speaker Each

Quality Inside and Out

Dayton Audio’s Micro-Edge™ speakers were created to combine the high-quality sonic performance of a premium free-standing speaker with sleek, contemporary in-wall styling, for a thoroughly modern take on the in-wall speaker. The ME525MTM model uses dual woofers and a centrally-mounted pivoting silk-dome tweeter, for a speaker with symmetrical dispersion that can be mounted vertically as left/right/surround channel speakers, or horizontally under a display or projection screen as a center-channel speaker. The low-profile perforated grill with ultra-slim Micro-Edge™ frame almost disappears into the wall entirely, and is easily paintable to match its surroundings.

Installation Made Easy

The dual 5-1/4" woofers feature woven black Kevlar cones that provide excellent transient 'snap' and crisp vocal clarity along with impactful bass, and the 1" silk-dome tweeter delivers rich detail that never becomes harsh, even at high volumes. The pivoting tweeter mount lets you target the best treble performance directly at the listening position, and the three-position room integration switch lets you decrease treble output if desired, for the best balance with your room’s natural acoustics.

Timbre Matched

All Dayton Audio Micro-Edge™ (ME-series) speakers are timbre-matched for a seamless and consistent home theater experience when used together. The ME525MTM is perfectly sized to fit between studs in standard 16-inch stud spacing when mounted horizontally as a center channel speaker. No additional adjustment is required for horizontal mounting.

Specifications:

Width (including grill): 14-3/4"
Height (including grill): 7-1/2"
Mounting Depth: 2-7/8"
Overall Depth: 3-1/4"
Cutout width: 13-3/8"
Cutout height: 6-1/8"
Woofer: 5-1/4" Black Woven Kevlar
Tweeter: 1" Silk Dome
Impedance: 8 Ohm
Power Handling: 50W RMS
Sensitivity: 86 dB 1W/1m

Product Details
Brand	Dayton Audio
Model	ME525MTM
Part Number	300-435
UPC	848791001260
Unit of Measure	Each
Weight	6.3

Product Specifications
Configuration	MTM / LCR
Woofer Diameter	5.25"
Special Features	Micro Edge Low Profile

Specifications
