CLEARANCE Dayton Audio H08RW 8" Round Waveguide 1-3/8"-18 TPI

Dayton Audio
Part #270-308

CLEARANCE Dayton Audio H08RW 8" Round Waveguide 1-3/8"-18 TPI

Dayton Audio
Part #270-308
Model: H08RW

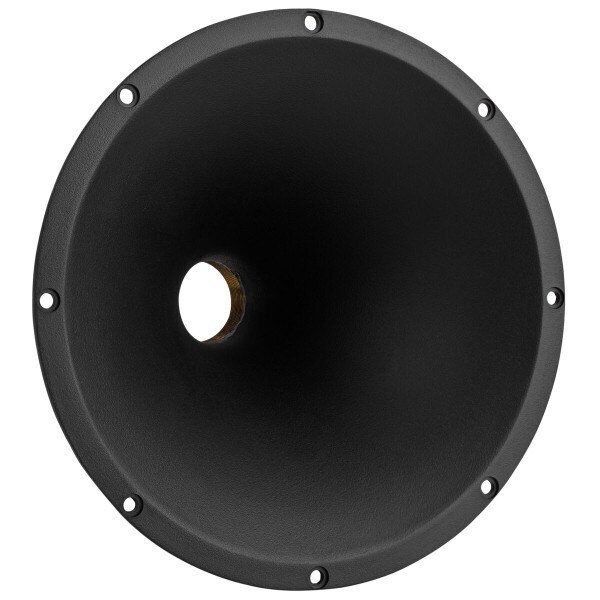

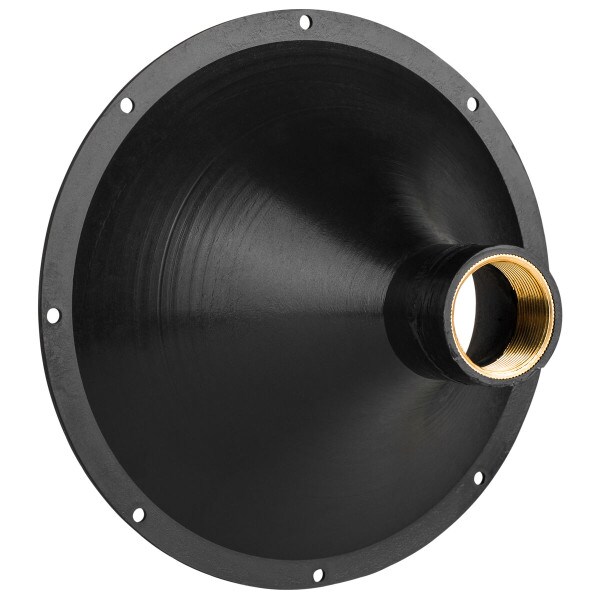

The Dayton Audio H08RW high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers.
Key Features
  • Uncolored, natural sound
  • Precision molded from high-performance plastic
  • Standard 1-3/8" x 18 TPI mounting for screw-on drivers
  • Nominal dispersion pattern: 75&#176 conical
  • Recommended minimum crossover frequency of 2,200 Hz
  • Cutout diameter of 7-1/3"

Overview

Dayton Audio H08RW 8" Round Waveguide 1-3/8"-18 TPI

A waveguide couples the high frequency driver to the listening space without the harmful distortion artifacts of marginally designed and implemented horn loading. It achieves this through the use of non-traditional geometries and lower expansion rates. The resultant sound has less distortion, with an "open" characteristic not often associated with typical "pinched" or "honky" compression driver/horn combinations. Dayton Audio waveguides reveal all of the articulate, accurate sound reproduction that your HF drivers are capable of delivering, whether the application is live sound, critical studio monitoring, or demanding home audio playback. The Dayton Audio H08RW high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. It is designed to exhibit a nominal 75° conical-shaped coverage pattern, and will provide useful acoustical loading down to 2,200 Hz. Dimensions: 8" round x 4-3/4" deep. Cutout Diameter: 7-1/8"

Product Details

BrandDayton Audio
ModelH08RW
Part Number270-308
UPC844632009211
Unit of MeasureEach
Weight0.6401

Product Specifications

ConstructionABS
Entry / Throat Diameter1"
Mounting Type1-3/8"-18 TPI
