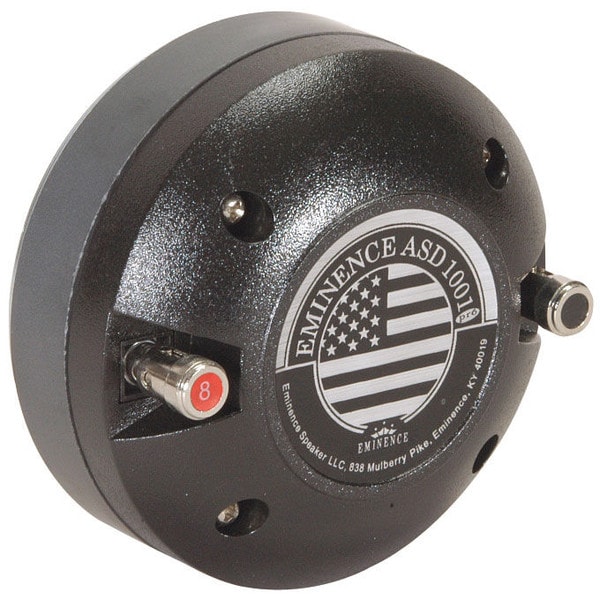

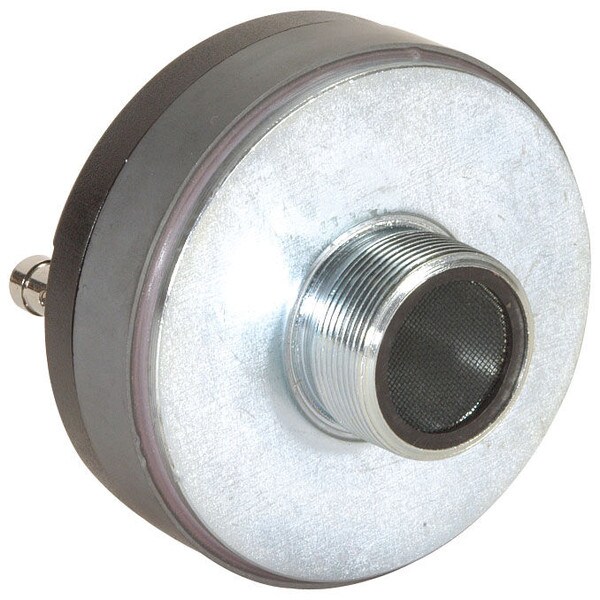

Eminence ASD1001 1" HF Titanium Horn Driver 1-3/8"-18 TPI

Name: Eminence ASD1001 1" HF Titanium Horn Driver 1-3/8"-18 TPI
Brand: Eminence Speaker
SKU: 290-525
Price: 39.99 USD
Availability: InStock
Rating: 4.8 (65 reviews)

Eminence SpeakerPart # 290-525

Model: ASD1001

Read 65 Reviews | 33 Questions, 123 Answers or

With the new ASD1001, Eminence has answered your call for a really affordable 1" throat compression driver!

Key Features

1" exit HF screw-on driver, 1-3/8"-18 TPI
Aluminum former with titanium diaphragm
Recommended crossover: 2.5 kHz, 18 dB/octave

See all items in Horn Drivers

Your Price: $39.99

MSRP: $49.99

Bulk Pricing

In Stock

Get Notified When Available

We'll send you an email when Eminence ASD1001 1" HF Titanium Horn Driver 1-3/8"-18 TPI is back in stock or available for preorder.

Ships next business day. Details

QtyQuantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Overview

Eminence ASD1001 1" HF Titanium Horn Driver 1-3/8"-18 TPI

With the ASD1001, Eminence has answered your call for a really affordable 1" throat compression driver!

Featured in Eminence's "Using coaxial products for DIY monitors and home hi-fi applications" article.

Specifications: • Power handling: 50 watts RMS (EIA426B specification, 2.5 kHz @ 18 dB) • Impedance: 8 ohms • Frequency response: 2,500-20,000 Hz • Sensitivity: 104 dB 2.83V/1m • Dimensions: 3.5" dia. x 2.42" depth.

Product Details
Brand	Eminence Speaker
Model	ASD1001
Part Number	290-525
UPC	876358001330
Unit of Measure	Each
Weight	2.24

Product Specifications
Diaphragm Material	Titanium
Exit Diameter	1"
Mounting Type	1-3/8"-18 TPI
Power Handling (RMS)	50 Watts
Impedance	8Ω
