Dayton Audio DS90-8 3" Designer Series Full-Range Driver 8 Ohm

Dayton Audio
Part #295-422

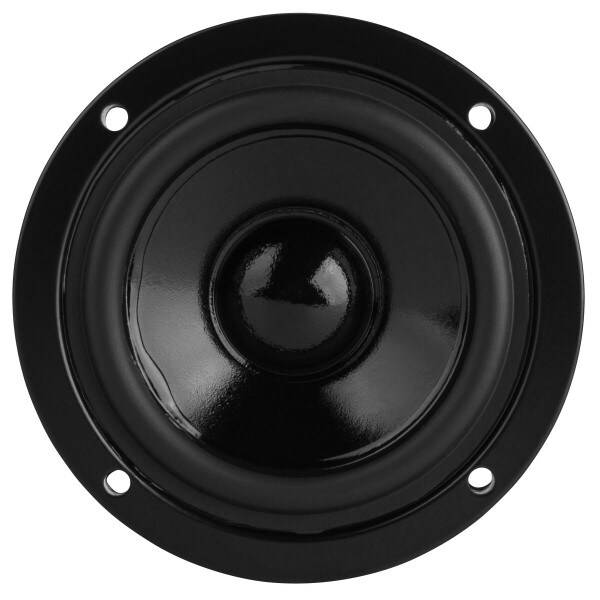

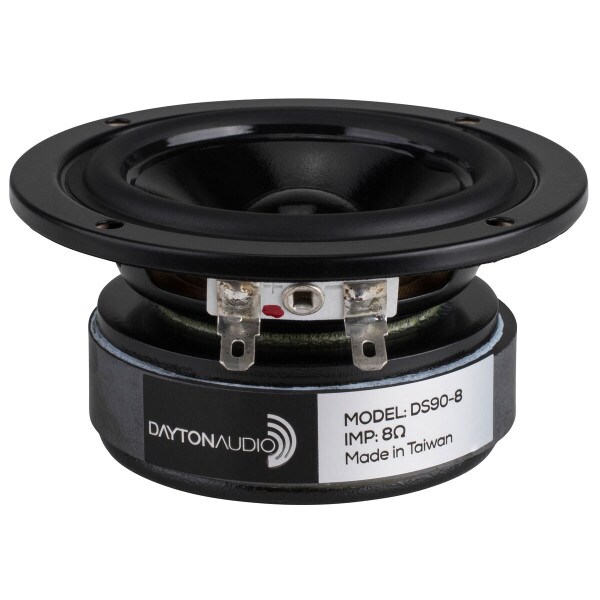

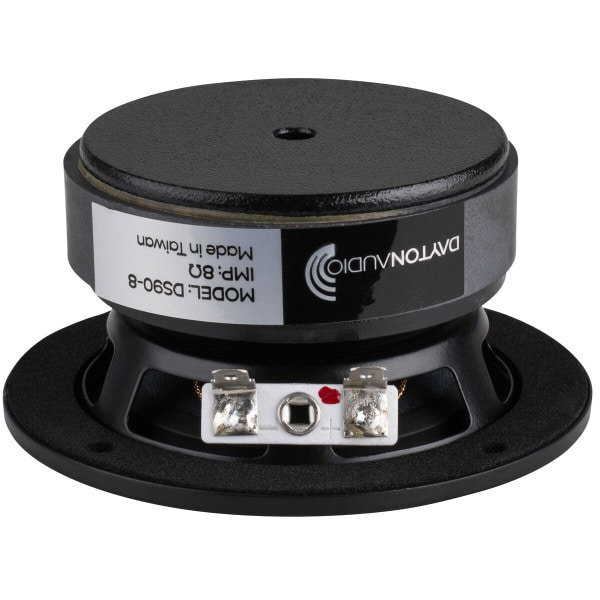

Dayton Audio DS90-8 3" Designer Series Full-Range Driver 8 Ohm

Dayton Audio
Part #295-422
Model: DS90-8
The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Your Price: $18.49
MSRP: $27.99
Save $9.50 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $18.49/ea
Quantity:Qty: 4+$16.64/ea
Order in the next 4 hr 50 min to ship today. Details

86In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DS90-8 3" Designer Series Full-Range Driver 8 Ohm

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

• Suggested enclosures:

Sealed cabinet:Type: Acoustic suspension (alpha 3.5), Qtc 0.69; Size (internal) including volume displaced by driver: 0.03 ft³; Internal cabinet dimensions (golden ratio): 6-1/4"H x 3-7/8"W x 2-3/8"D. Typical results:3 dB down-point (f3): 158 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 90 Hz.

Vented cabinet:Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 7-3/4"H x 4-3/4"W x 3"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results:3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.

Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

Product Details

BrandDayton Audio
ModelDS90-8
Part Number295-422
UPC844632095375
Unit of MeasureEach
Weight1.2

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.27
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance8Ω
Frequency Response80 to 13,000Hz
Sensitivity84.1dB 2.83V/1m
Voice Coil Diameter0.8"

Thiele-Small Parameters

Resonant Frequency (Fs)81.4Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.56mH
Mechanical Q (Qms)2.19
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)0.05ft³
Mechanical Compliance of Suspension (Cms)1.02mm/N
BL Product (BL)4.76T·m
Diaphragm Mass Inc. Airload (Mms)3.8g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)31.2cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.63"
Baffle Cutout Diameter2.76"
Depth1.76"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3175Hz
Vented Volume0.06ft³
Vented F379Hz
