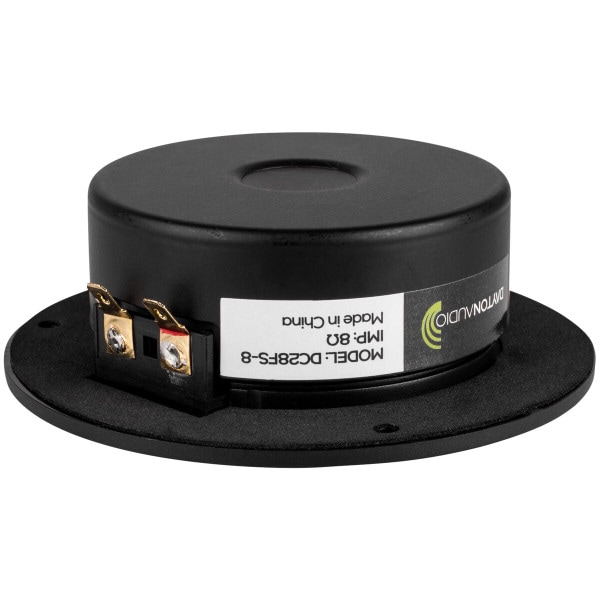

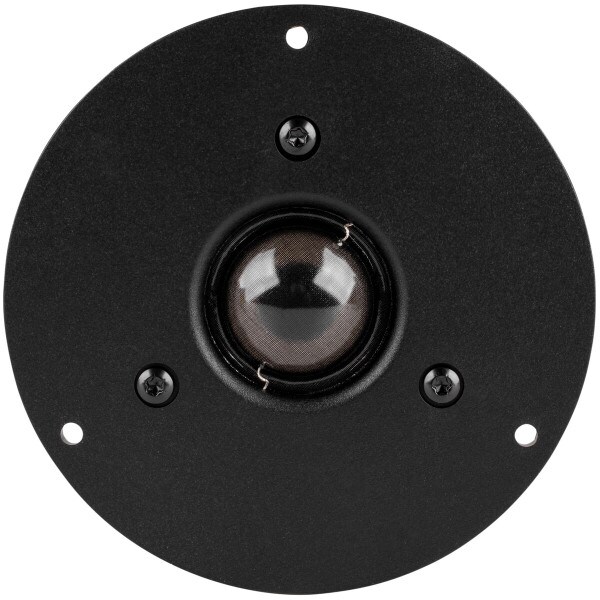

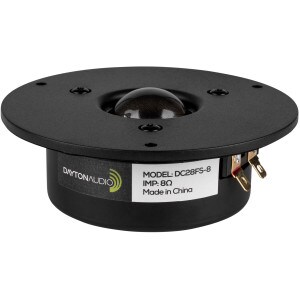

Dayton Audio DC28FS-8 1-1/8" Silk Dome Shielded Tweeter

Dayton Audio
Part #275-075

Dayton Audio DC28FS-8 1-1/8" Silk Dome Shielded Tweeter

Dayton Audio
Part #275-075
Shielded version of the famous Dayton Audio Silk Dome Tweeter. 1-1/8" silk dome with ferrofluid cooling and fully shielded motor structure.
Key Features
  • Offers smooth and detailed high frequency performance
  • Magnetically shielded
  • Ferrofluid cooled voice coil
Similar items that may interest you:
See all items in Tweeters
Your Price: $25.98
MSRP: $33.99
Save $8.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $25.98/ea
Quantity:Qty: 4+$23.38/ea
Order in the next 0 hr 55 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DC28FS-8 1-1/8" Silk Dome Shielded Tweeter

The shielded version of the famous Dayton Audio Silk Dome, this tweeter offers the same performance but in a CRT-safe design. Features a 1-1/8" silk dome with a ferrofluid cooled voice coil for superior damping. Compare it to drivers costing $30 to $40 more! Recommended for crossover points as low as 1,800 Hz, making it ideal for most 2-way speaker designs. 5 year warranty.

Specifications: • Power handling: 50 watts RMS/100 watts max • VCdia: 1.14" • Le: 0.09 mH • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 1,600-20,000 Hz • Fs: 813 Hz • SPL: 89 dB 1W/1m • Qms: 1.97 • Qes: 1.6 • Qts: 0.88 • Dimensions: Overall diameter: 4.33", Cutout diameter: 3.07", Depth: 1.42".

Product Details

BrandDayton Audio
ModelDC28FS-8
Part Number275-075
UPC844632015878
Unit of MeasureEach
Weight1.3

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter3.07
Tweeter TypeSoft Dome
Power Handling (RMS)50 Watts
Impedance8Ω
Frequency Response1,600 to 20,000Hz
Sensitivity89dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)905Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)1.58mH
Mechanical Q (Qms)2.21
Electromagnetic Q (Qes)1.73
Total Q (Qts)0.97

Mounting Information

Overall Outside Diameter4.33"
Depth1.42"
