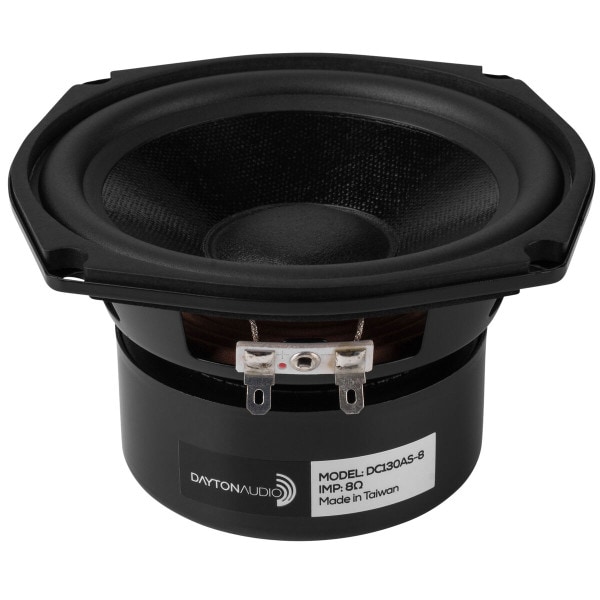

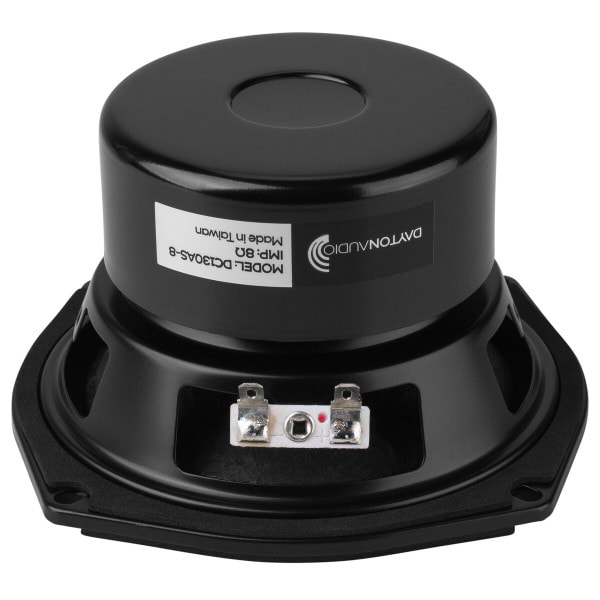

Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer

Dayton AudioPart # 295-300
Model: DC130AS-8
Choose the Dayton Audio DC130AS-8 Classic Series 5-1/4" woofer for use as a great replacement bookshelf speaker, midrange in 3-way designs, or even as a small subwoofer. The shielded design allows for use near tube TVs and focuses the magnetic flux in the gap for high sensitivity.

Key Features

  • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
  • Smooth frequency response up to 2 kHz and great bass response
  • Rubber surround, aluminum voice coil, and extended bump plate
  • Shielded design increases performance and allows it to be used near tube TVs
  • 4 ohm impedance for series pair use in MTMs and center channel speakers
Similar items that may interest you:
Dayton Audio DC130BS-8 5-1/4" Classic Shielded Woofer
Price: $28.98Part # 295-301
Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm
Price: $30.98Part # 295-302
See all items in Woofers
Your Price: $27.98
MSRP: $36.99
Save $9.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $27.98/ea
Quantity:Qty: 4+ $25.28/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130AS-8 shielded 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130AS-8 as a small subwoofer! The excellent low frequency performance will amaze you.

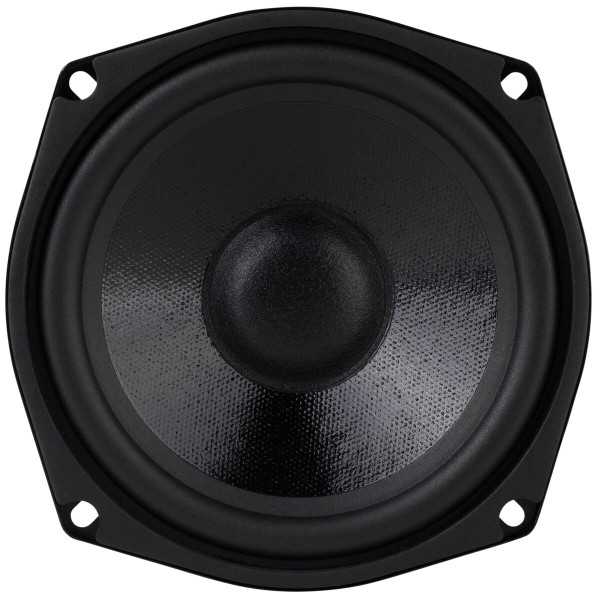

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Product Details

BrandDayton Audio
ModelDC130AS-8
Part Number295-300
UPC844632000218
Unit of MeasureEach
Weight2.5

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response55 to 4,000Hz
Sensitivity88.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)57.2Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.84mH
Mechanical Q (Qms)2.01
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.34ft³
Mechanical Compliance of Suspension (Cms)0.8mm/N
BL Product (BL)5.83T·m
Diaphragm Mass Inc. Airload (Mms)9.7g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)91.6cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.28"
Baffle Cutout Diameter4.72"
Depth3.09"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.12ft³
Sealed F3117Hz
Vented Volume0.4ft³
Vented F352Hz
