Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 8 Ohm DAEX32Q-8

Name: Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 8 Ohm DAEX32Q-8
Brand: Dayton Audio
SKU: 295-268
Price: 24.98 USD
Availability: OutOfStock
Rating: 4.3 (9 reviews)

Dayton AudioPart # 295-268

Model: DAEX32Q-8

Read 9 Reviews | 3 Questions, 36 Answers or

The Dayton Audio DAEX32Q-8 balanced exciter transforms rigid surfaces into full-range sound sources, making audio truly invisible. Its dual-suspension system maintains controlled pistonic movement, even when mounted vertically, and the 32 mm voice coil paired with a strong neodymium motor delivers dependable output and heat handling. A removable mounting pad with pre-applied 3M VHB adhesive allows clean placement on smooth surfaces, while two screw holes provide a secure option for challenging materials. The DAEX32Q-8 is an excellent choice for inventive sound projects and discreet speaker installations.

Key Features

Dual steel spider design to better support the large neodymium motor
32 mm two layer voice coil for high, 20 watt RMS, power handling

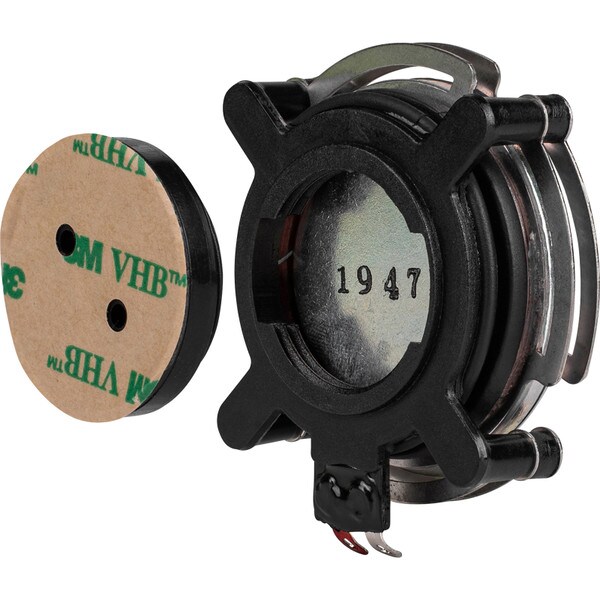

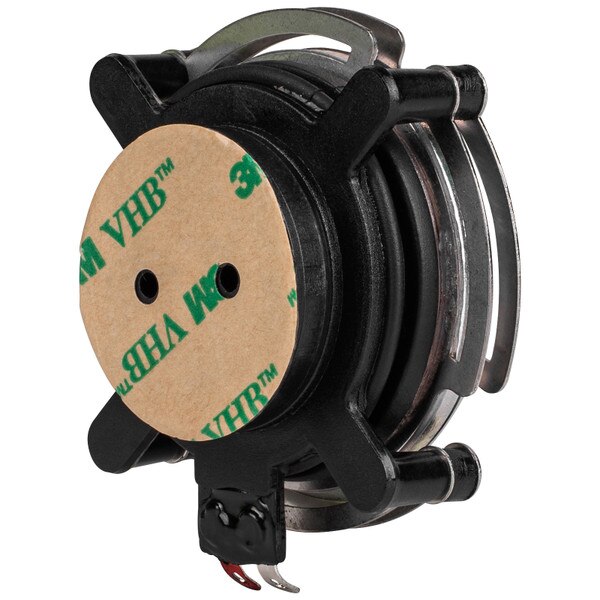

Removable mounting pad with 3M VHB adhesive or screw-mounting capability
Efficient neodymium motor minimizes size while allowing high output capability
Converts rigid surfaces into fully hidden speakers
8 ohm impedance for easy connection to most amplifiers

Overview

Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 8 Ohm DAEX32Q-8

The Dayton Audio DAEX32Q-8 balanced exciter offers a unique way to deliver sound without traditional speaker enclosures or visible drivers. By transferring energy directly into the mounting surface, it turns rigid materials into active radiating panels capable of producing full-range output. This makes it an excellent choice for situations where speakers must disappear completely or where creative form factors are part of the design intent.

A dual-suspension system stabilizes movement and maintains pistonic behavior, even when mounted to vertical or uneven surfaces. This controlled motion improves clarity while helping the exciter stay centered over long-term use. Its powerful neodymium motor and 32 mm voice coil supply solid output capability with reliable heat handling, supporting extended listening and repeated use in demanding installations.

Installation is straightforward thanks to the removable mounting pad. Smooth surfaces can accept the pre-applied 3M VHB adhesive for quick placement, and two integrated screw holes offer a more secure option when working with textured or irregular materials. Once mounted, the DAEX32Q-8 can energize a wide range of surfaces including cabinet panels, display fixtures, architectural elements, or furniture, expanding design possibilities far beyond what a conventional speaker allows.

This exciter excels in applications where space is limited or where the speaker is part of the structure rather than a separate component. It is at home in kiosks, themed environments, concealed home audio systems, interactive exhibits, signage, and experimental DIY designs. Used individually or in multiples, it offers a powerful and versatile approach to delivering immersive sound from places where speakers typically could not exist.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications:
• Power handling: 20 watts RMS, 40 watts peak
• VCdia: 32 mm
• Nominal impedance: 8 ohms
• Re: 6.5 ohms
• Le: 0.36 mH
• Fs: 580 Hz
• Dimensions: 2.38" (60.5 mm) dia. x 0.95" (23.75 mm) H
• Mounting Pad/Adhesive: 1.26" (32 mm) outside diameter
• Weight: 133.2 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details
Brand	Dayton Audio
Model	DAEX32Q-8
Part Number	295-268
UPC	848791001987
Unit of Measure	Each
Weight	0.3

Product Specifications
Application	Full-Range Exciter
Power Handling (RMS)	20 Watts
Impedance	8Ω
