  • Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 4 Ohm DAEX32Q-4

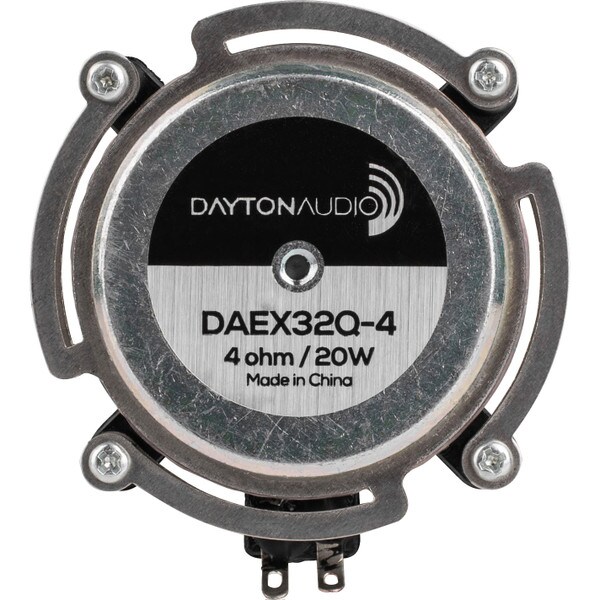

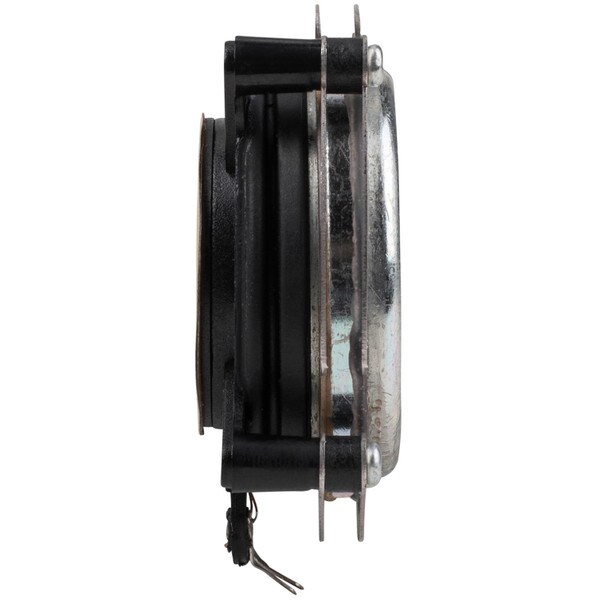

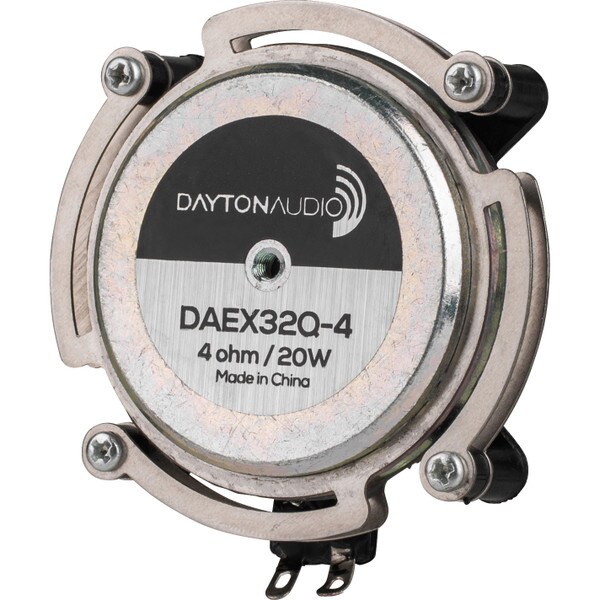

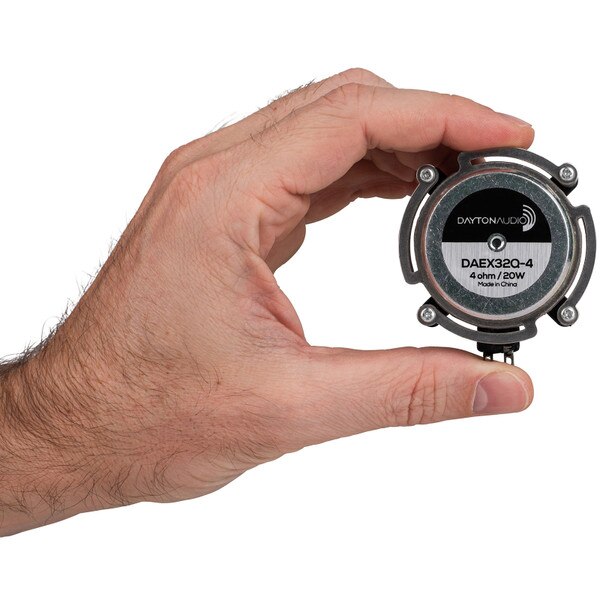

Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 4 Ohm DAEX32Q-4

Dayton AudioPart # 295-266
Model: DAEX32Q-4

Key Features

  • Dual steel spider design to better support the large neodymium motor
  • 32 mm two layer voice coil for high, 20 watts RMS, power handling

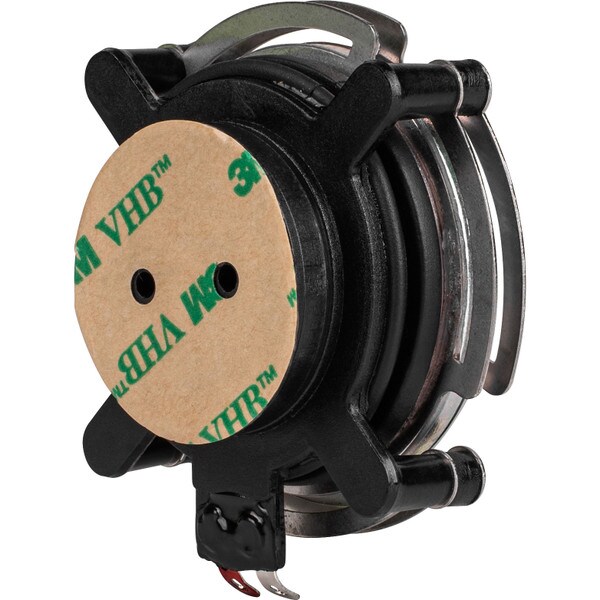

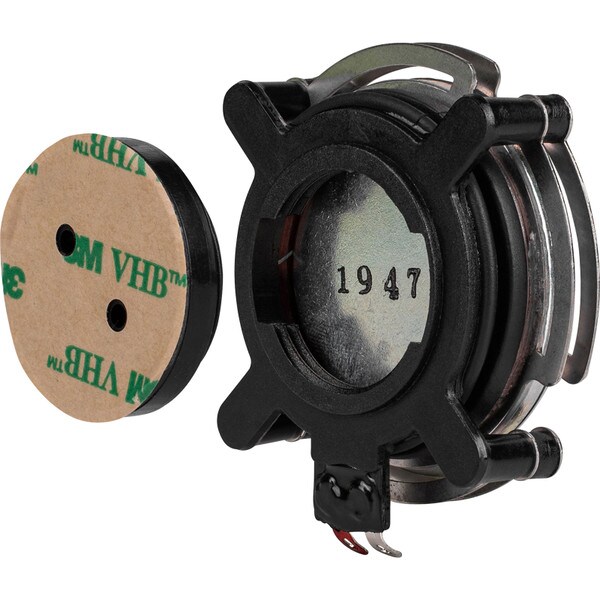

  • Pre-applied 3M VHB adhesive for quick, secure installation
  • 4 ohm impedance to make the most out of small class D amplifiers
Your Price: $22.98
MSRP: $32.99
Save $10.01 (30%)
Bulk Pricing
Quantity:Qty: 1-3 $22.98/ea
Quantity:Qty: 4+ $21.98/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 4 Ohm DAEX32Q-4 is back in stock or available for preorder.

Estimated back in stock 11/12/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Dual Steel Spring Balanced Audio Exciter 32mm 20W 4 Ohm DAEX32Q-4

The DAEX32Q-4 from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M™ VHB™ (Very High Bond) adhesive is pre-applied... just peel and stick! This exciter is perfect for turning whatever you can imagine into a speaker such as cabinet doors, monitors, windows, garage doors, ect…

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications: • Power handling: 20 watts RMS, 40 watts peak • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.2 ohms • Le: 0.22 mH • Fs: 320 Hz • Dimensions: 2.38" (60.5 mm) dia. x 0.78" (19.9 mm) H • Adhesive dimensions: 1.26" (32 mm) outside diameter, 0.9" (23 mm) inside diameter • Weight: 132.6 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDAEX32Q-4
Part Number295-266
UPC848791001970
Unit of MeasureEach
Weight0.3

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)20 Watts
Impedance4Ω
