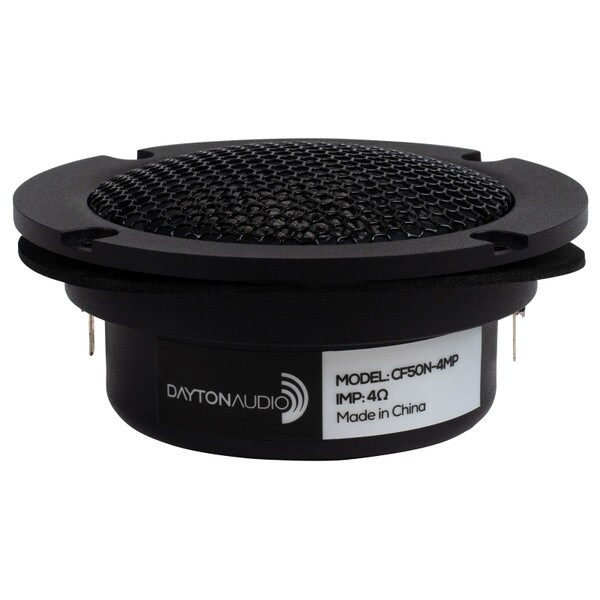

NEW Dayton Audio CF50N-4 2" Carbon Fiber Dome Midrange 4 Ohm

Dayton Audio
Part #285-411

NEW Dayton Audio CF50N-4 2" Carbon Fiber Dome Midrange 4 Ohm

Dayton Audio
Part #285-411
Model: CF50N-4
When you have minimal space but need a low distortion midrange, Dayton Audio’s CF50N-4 2” carbon fiber dome midrange is the perfect choice. This compact midrange combines a 2” woven carbon fiber diaphragm and powerful neodymium motor to produce smooth and dynamic response from an incredibly compact package. Also featuring a cast aluminum faceplate, rubber surround, vented aluminum voice coil former, damped rear chamber, and integrated grill, the CF50N-4 offers big performance without needing a lot of space.
Key Features
  • Woven carbon fiber dome and rubber surround deliver accurate response
  • Powerful neodymium motor allows compact size and delivers high efficiency

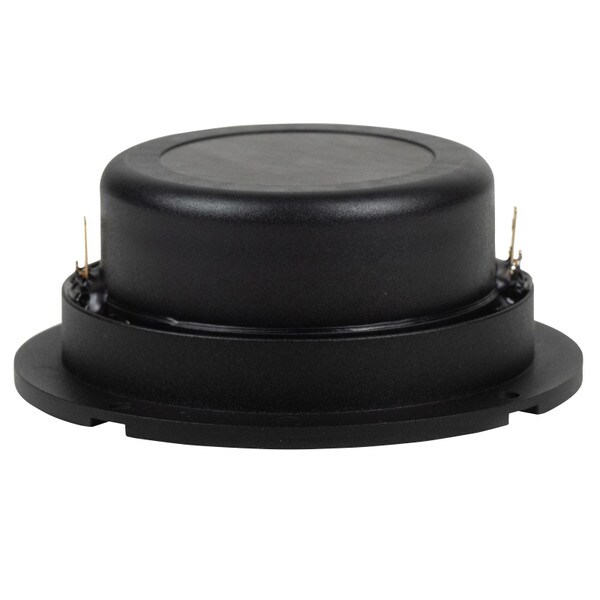

  • Damped rear chamber lowers Fs and help smooth response
  • Vented aluminum voice coil former helps dissipate heat for lower power compression
  • Rigid cast aluminum faceplate provides a solid and air-tight mounting flange

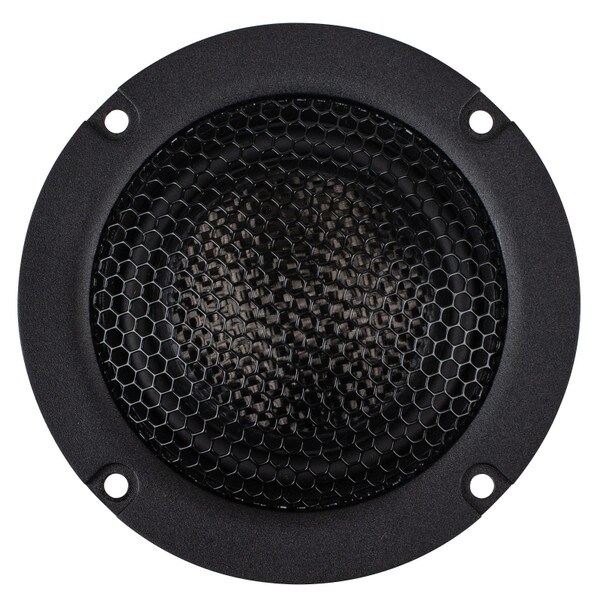

  • Integrated grill protects the dome from foreign objects and curious fingers
NEW $49.98
MSRP: $89.99
Save $40.01 (44%)
Bulk Pricing
Quantity:Qty: 1-3 $49.98/ea
Quantity:Qty: 4+$42.48/ea
Order in the next 4 hr 10 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio CF50N-4 2" Carbon Fiber Dome Midrange 4 Ohm

The Dayton Audio CF50N-4 combines a 2” carbon fiber dome with a high-energy neodymium motor to deliver accurate midrange response from an incredibly compact package. The lightweight but rigid diaphragm has been optimized for wide dispersion and controlled response throughout the pass band. A rubber surround keeps the dome centered while damping the edge of the diaphragm to keep any unwanted resonances well outside of the pass band. Finally, the cast aluminum faceplate has been designed to reduce diffraction and keep the off-axis response consistent and predictable. Offering low distortion with smooth response from 500 to 6,000 Hz, this midrange is perfect for small 3-way designs and car audio installations.

A powerful neodymium motor keeps the CF50N-4 under 4” diameter without sacrificing efficiency or output capability. With a 2” diameter vented aluminum former, the voice coil can efficiently dissipate excess heat for high power handling without suffering from significant power compression. The damped rear chamber keeps the midrange isolated for easy installation while minimizing internal reflections resulting in smoother response. Finally, the cast aluminum faceplate includes an integrated grill to protect the fragile dome from damage.

Combining advanced materials and technology, the flexible CF50N-4 from Dayton Audio delivers excellent midrange reproduction without taking up much space. Capable of wide dispersion, high output, and low distortion, the CF50N-4 will be right at home in everything from home theater speaker systems to sound quality based car audio installs.

Product Details

BrandDayton Audio
ModelCF50N-4
Part Number285-411
UPC848791010651
Unit of MeasureEach
Weight1.01

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter3.62
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance
Frequency Response500 to 6,000Hz
Sensitivity91.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)345Hz
DC Resistance (Re)
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)4.09
Electromagnetic Q (Qes)0.82
Total Q (Qts)0.68
Surface Area of Cone (Sd)19.6cm²

Materials of Construction

Cone MaterialWoven Carbon Fiber
Surround MaterialRubber
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.94"
Baffle Cutout Diameter3.27"
Depth1.57"
# Mounting Holes4
