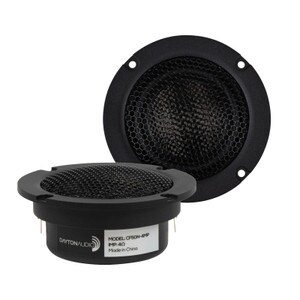

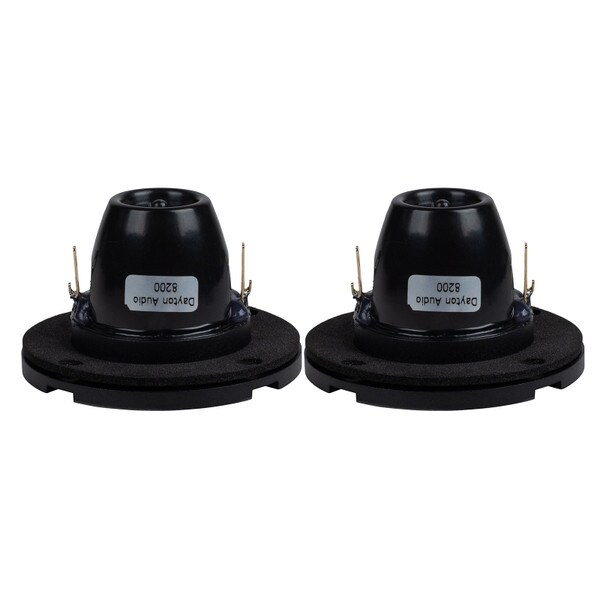

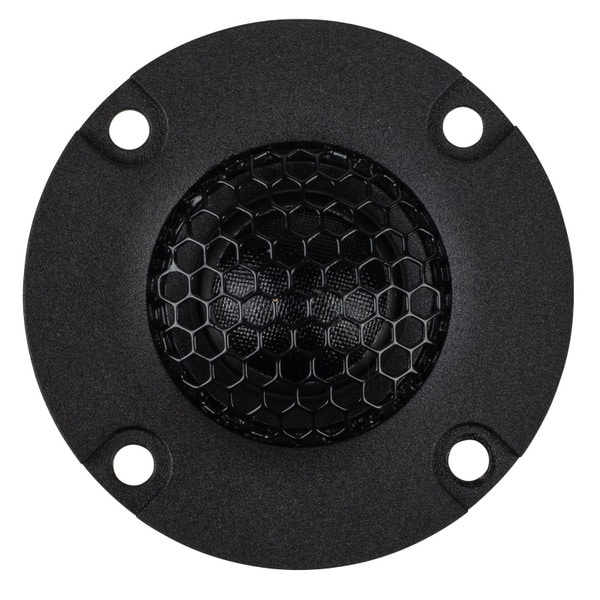

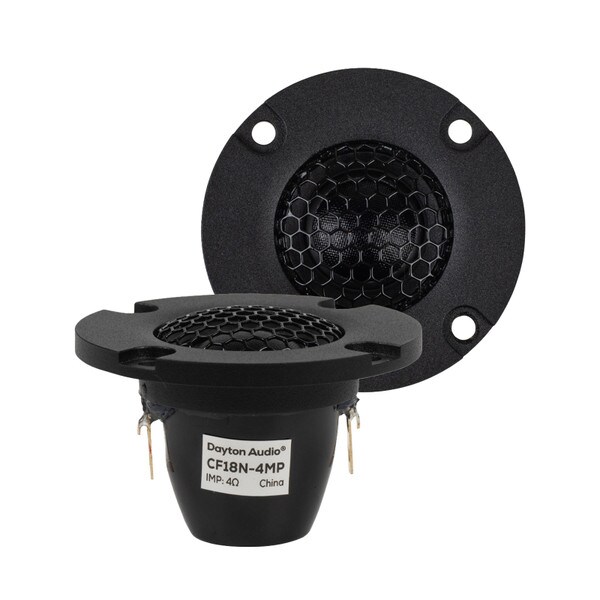

NEW Dayton Audio CF18N-4MP 3/4" Carbon Fiber Dome Neodymium Tweeter Matched Pair 4 Ohm

Dayton AudioPart # 275-410
Model: CF18N-4MP
7 Questions, 8 Answers or
Dayton Audio's frequency matched pair of CF18N-4MP 3/4" carbon fiber dome tweeters offers a combination of advanced technology and user-friendly design, making them an excellent choice for compact systems, three-way loudspeakers, or car stereo installations. Despite their small form factor, the CF18N-4MP incorporates advanced materials and engineering to deliver superior sound quality and reliability. These tweeters are sold as pair matched to ±1 dB from 2,000 to 20,000 Hz to ensure that your designs will deliver an incredible soundstage with pinpoint imaging.

Key Features

  • Frequency response matched pairs, ±1 dB from 2,000 to 20,000 Hz, for pinpoint imaging and accurate soundstage
  • Woven carbon fiber dome for detailed response with controlled resonance
  • High power neodymium magnet allows a compact design without sacrificing efficiency
  • Damped rear chamber lowers Fs and further tames unwanted resonances
  • Ferrofluid cooled voice coil improves power handling
  • Rigid cast aluminum faceplate provides a solid and air-tight mounting flange
  • Integrated grill protects the dome from foreign objects and curious fingers
NEW $79.98
MSRP: $119.99
Save $40.01 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $79.98/ea
Quantity:Qty: 4+ $67.98/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio CF18N-4MP 3/4" Carbon Fiber Dome Neodymium Tweeter Matched Pair 4 Ohm is back in stock or available for preorder.

Order in the next 3 hr 29 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CF18N-4MP 3/4" Carbon Fiber Dome Neodymium Tweeter Matched Pair 4 Ohm

The matched pair of CF18N-4MP 3/4" carbon fiber dome tweeters from Dayton Audio stand out as an excellent choice for those looking for excellent sound quality in compact audio systems. Sold as a frequency response matched pair (±1 dB, 2,000 to 20,000 Hz), the CF18N-4MP ensures that your system will produce optimal imaging with a wide soundstage. Designed with advanced materials, these tweeters feature woven carbon fiber diaphragms that ensure excellent transient response and clarity to produce accurate high-frequency reproduction. Additionally, the CF18N-4MP deliver excellent off-axis response thanks to their small diaphragms and sculpted aluminum faceplates. This makes them particularly well-suited for three-way loudspeakers, car audio installations, or anywhere space is at a premium but high-fidelity is a priority.

These tweeters are equipped with powerful neodymium motors, which reduce size without sacrificing performance. Reinforced damped rear chambers enhance the CF18N-4MP's acoustic performance by minimizing unwanted resonances to deliver smooth response and low distortion. Finally, the Ferrofluid-cooled voice coils enhance heat dissipation to improve power handling, reliability, and longevity. These engineering features work together to create tweeters that are not only compact, but also built to last.

In addition, cast aluminum faceplates offers robust structural support and help to reduce vibrations that can affect sound quality. Protective grills are built in, safeguarding the delicate diaphragms from damage, making the CF18N-4MP a practical choice for various environments, including mobile and high-performance home audio setups.

Overall, Dayton Audio's CF18N-4MP tweeter pair is a fusion of advanced technology and user-focused design, ideal for audiophiles, casual listeners, and anyone seeking exceptional sound in a compact package.

Product Details

BrandDayton Audio
ModelCF18N-4MP
Part Number275-410
UPC848791010613
Unit of MeasurePairs
Weight0.44

Product Specifications

Cutout Diameter1.5
Tweeter TypeWoven Carbon Fiber Dome
Power Handling (RMS)40 Watts
Impedance4Ω
Frequency Response2,500 to 20,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1100Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.01mH

Mounting Information

Overall Outside Diameter2.28"
Depth1.4"
